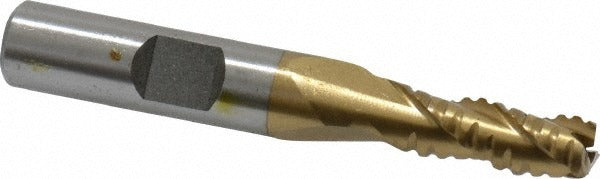

Value Collection 724-5044 9/32 in Cobalt End Mill 3 Flute

Product Description

The VALUE COLLECTION 724-5044 is a single-end roughing finishing end mill designed for material removal and surface finishing in one tool. Built from M42 cobalt high-speed steel and coated with Titanium Nitride (TiN), it delivers extended tool life in ferrous and hard materials. The 9/32-inch cutting diameter, 3-flute configuration, and 30-degree helix angle work together to balance chip evacuation and surface finish. The square end profile produces flat-bottomed cuts and sharp 90-degree shoulders. This end mill is installed and operated by machinists and tool-and-die professionals working with vertical mills, knee mills, and CNC machining centers.

Suited for milling operations in ferrous metals and alloys, this end mill handles both roughing passes and finishing work, reducing tool changes on the shop floor. The Weldon flat shank provides a positive, non-slip connection in standard set-screw holders with a 3/8-inch bore. Right-hand flute direction and right-hand cutting action are standard for conventional and climb milling setups on most horizontal and vertical spindle machines.

Key Features

• M42 cobalt construction for heat resistance and durability in hard materials
• TiN coating reduces friction and extends cutting edge life
• 3-flute, 30-degree helix balances chip clearance with surface finish quality
• Square end geometry produces flat floors and sharp corner profiles
• Weldon flat shank ensures secure, slip-resistant tool holding
• Single-end design; not center-cutting — plunge milling is not recommended

Compatibility

Designed for use in standard 3/8-inch Weldon flat set-screw tool holders on vertical mills, knee mills, and CNC machining centers with right-hand spindle rotation.

Installation Notes

Installation is performed by machinists using a standard torque wrench on the set-screw Weldon flat holder — consult the holder manufacturer for the correct fastener torque. Power down and lock out the machine spindle before changing or seating the end mill. This tool is not center-cutting; do not use for direct plunge operations. Inspect the cutting edges and TiN coating condition before each use to confirm the tool is serviceable.
