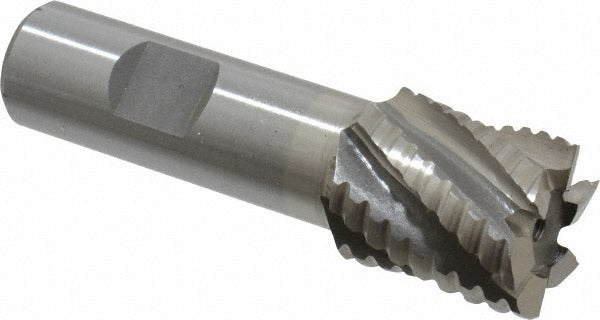

Value Collection 724-4230 Roughing Finishing End Mill

Product Description

The VALUE COLLECTION 724-4230 is a single-end, 6-flute roughing finishing end mill designed for material removal and surface finishing in a single tool. Built from M42 cobalt high-speed steel with a bright/uncoated finish, it handles tough ferrous metals and work-hardening alloys where carbide is prone to chipping. The 1-inch cutting diameter, 1.125-inch length of cut, and 30-degree helix angle combine to deliver aggressive chip evacuation while maintaining a finish-quality surface. This tool is suited for machinists and toolroom operators running knee mills, manual or CNC vertical machining centers, and similar equipment.

This end mill is intended for applications requiring both roughing and finishing passes without a tool change. The 6-flute configuration increases feed rates compared to standard 4-flute designs while the chipbreaker-free, square-end geometry produces a flat bottom in pockets, slots, and profiling cuts. The right-hand cut and right-hand flute direction make it compatible with standard spindle configurations on conventional and CNC milling machines. A Weldon flat shank at 0.75 inches diameter provides positive drive and resists pullout under heavy cuts.

Key Features

• M42 cobalt HSS construction for heat and wear resistance in tough alloys
• 6-flute design supports higher feed rates and improved surface finish
• 30-degree helix angle promotes efficient chip evacuation
• Weldon flat shank prevents tool pullout under aggressive cutting conditions
• Square end geometry produces flat-bottomed slots and pockets
• Bright/uncoated finish suitable for use with cutting fluids on ferrous materials

Compatibility

Designed as a direct-fit replacement or standard tooling selection for milling machines accepting a 0.75-inch Weldon flat shank end mill with right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and locked before inserting or removing the end mill. Secure the Weldon flat shank firmly in a compatible end mill holder, aligning the flat with the set screw to prevent rotation under load. Verify runout with a dial indicator before initiating cuts, as excessive runout accelerates tool wear and degrades surface finish.
