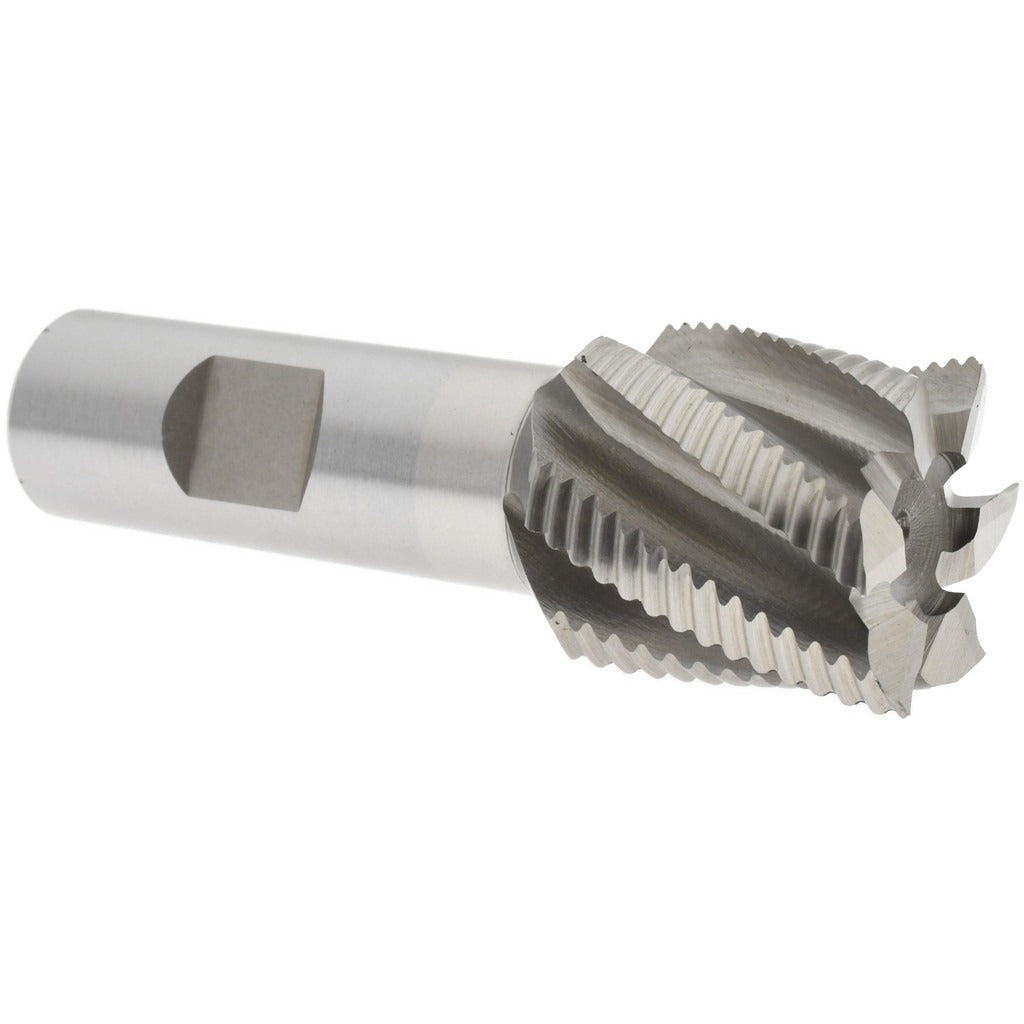

Value Collection 724-2275 Roughing End Mill 1-1/8 in 6 Flute

Product Description

The VALUE COLLECTION 724-2275 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it measures 1.125 inches in diameter with a 1.125-inch length of cut and a 3.375-inch overall length. The 6-flute geometry produces a corncob-style cutting action that breaks chips into smaller segments, reducing heat buildup and allowing higher feed rates compared to standard end mills. Right-hand cutting and right-hand flute direction are standard. This tool is intended for use by machinists and toolroom professionals working with ferrous and tough alloy materials.

This roughing end mill is suited for roughing passes on vertical mills, knee mills, and CNC machining centers where rapid stock removal is the priority before a finish pass. The 0.75-inch shank diameter fits standard R8, CAT, BT, and collet-style tool holders commonly found in job shops and production environments. It is not center-cutting, so it requires a pre-drilled or pre-bored entry point and is not designed for plunge cuts. Typical applications include roughing pockets, slots, and profiles in carbon steel, alloy steel, and similar ferrous workpiece materials.

Key Features

• M42 cobalt construction for heat resistance and edge retention in tough alloys
• 6-flute design increases feed rate capability and chip-load distribution during roughing
• Single-end configuration with right-hand cut and right-hand helix
• Bright, uncoated finish suitable for use with cutting fluids
• 0.75-inch shank diameter for compatibility with standard tool holders
• Not center-cutting — engineered exclusively for peripheral roughing passes

Compatibility

Designed as an OEM-style replacement roughing end mill for use in standard milling machine setups accepting a 0.75-inch shank diameter tool holder.

Installation Notes

Installation should be performed by a qualified machinist following standard tool-holding procedures. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or holder and torque the drawbar or retention mechanism per the machine manufacturer specification. Confirm tool runout with a dial indicator before beginning a cut, and verify that cutting fluid supply is directed at the cutting zone to manage heat during roughing operations.
