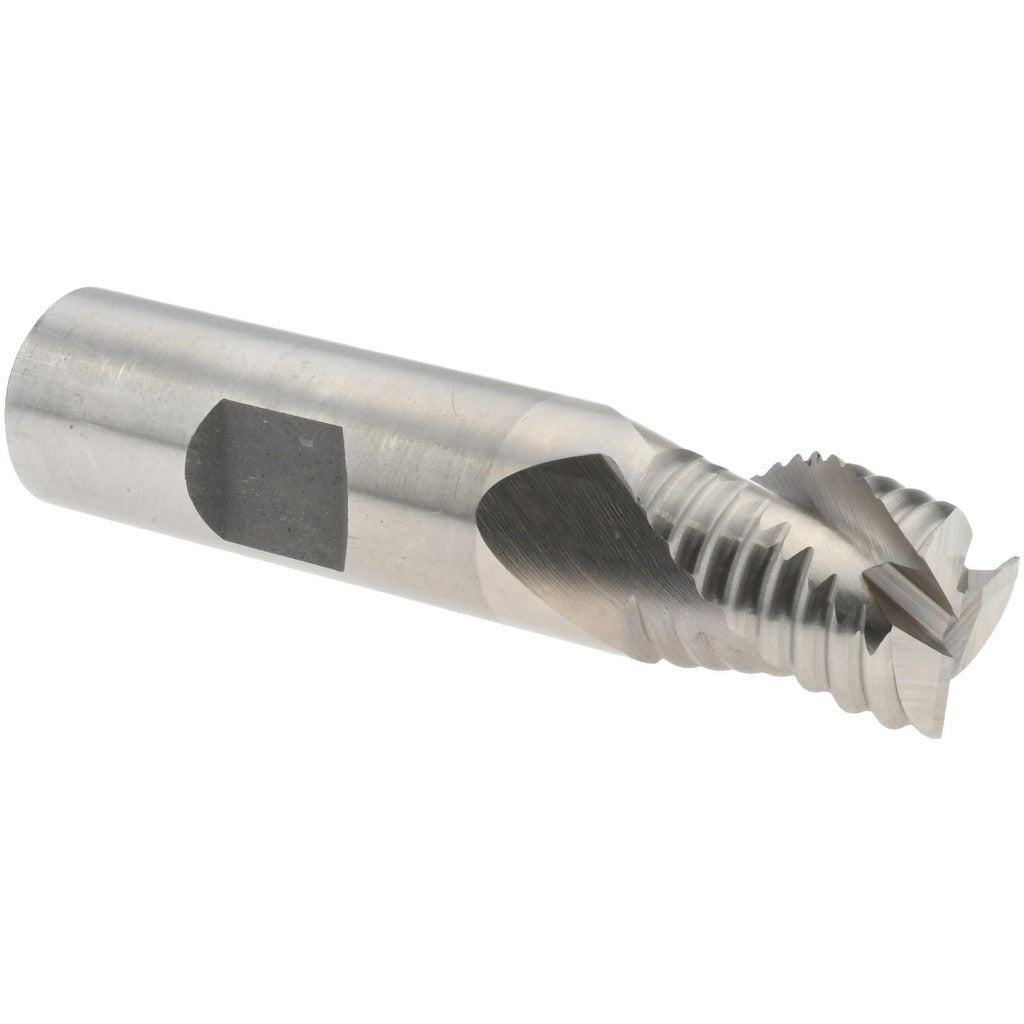

Value Collection 723-4475 Roughing End Mill 5/8 in Cobalt

Product Description

The VALUE COLLECTION 723-4475 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it delivers the heat resistance and edge toughness required for interrupted cuts and heavy chip loads. The cutter measures 0.625 inches in diameter with a 0.75-inch length of cut, a matching 0.625-inch shank diameter, and an overall length of 2.875 inches. Three flutes with a high helix angle and right-hand cutting direction generate efficient chip evacuation while maintaining surface control during roughing passes. Center-cutting geometry allows plunge entry directly into the workpiece.

This end mill is suited for general-purpose roughing on a vertical or horizontal milling machine, CNC machining center, or manual knee mill. It handles ferrous and non-ferrous materials where a cobalt substrate is preferred over standard HSS for extended tool life at elevated cutting temperatures. Typical applications include roughing pockets, slots, and profiles in steel, stainless steel, cast iron, and similar alloys. Single-end configuration means the tool is replaced rather than flipped when the cutting end is worn.

Key Features

• M42 cobalt steel substrate for improved heat and wear resistance over standard HSS
• 3 flutes with high helix angle for efficient chip evacuation during roughing passes
• Center-cutting design allows direct plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand flute direction for standard spindle rotation
• Bright, uncoated finish — compatible with a wide range of cutting fluids and coolants
• Matched shank and cutter diameter (0.625 inches) simplifies toolholder selection

Compatibility

Designed as an OEM-style replacement or standard tooling fit for milling machines and machining centers that accept a 5/8-inch straight shank end mill via collet, end mill holder, or Weldon-style side-lock holder.

Installation Notes

Installation is performed by a machinist or toolroom technician following standard toolholder procedures. Ensure the spindle is fully stopped and locked before inserting or removing the tool. Seat the shank fully into the holder to the minimum insertion depth recommended by the toolholder manufacturer to prevent pullout under load. Inspect the shank and collet bore for chips or contamination before clamping, as debris will affect runout and reduce tool life.
