Value Collection 723-4350 Square End Mill 11/64in Cobalt

Product Description

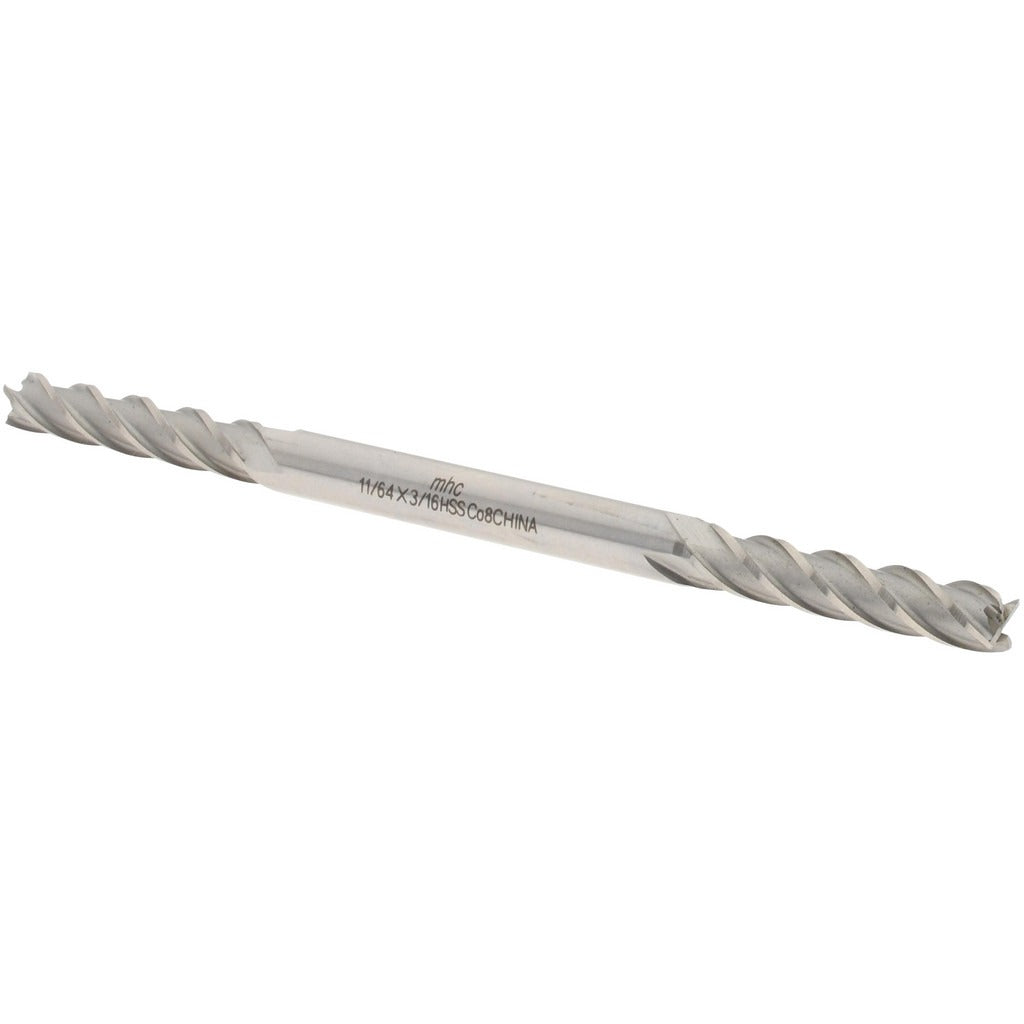

The VALUE COLLECTION 723-4350 is a cobalt square end mill designed for precision milling operations in machine shops and manufacturing environments. Built from M42 cobalt high-speed steel, this tool delivers good heat and wear resistance when cutting ferrous metals, stainless steel, and other tough materials. It features a 11/64 inch (0.1719 inch) cutting diameter with a 7/8 inch (0.8750 inch) length of cut and a 30-degree helix angle on a right-hand spiral flute configuration. With four flutes and a double-end design, it offers extended tool life and efficient chip evacuation. The bright, uncoated finish is standard for general-purpose cobalt tooling.

This end mill is suited for milling slots, profiles, pockets, and contours on CNC machining centers and manual mills. The double-end configuration makes it a practical choice for shops that want to maximize usable cutting edges per tool. It is sized for light to medium-duty cuts where a small-diameter, long-reach tool is needed, such as detail work on molds, fixtures, or precision components. Installation and use require a compatible collet or end mill holder sized for a 3/16 inch shank diameter.

Key Features

• M42 cobalt construction for improved heat resistance and tool life in hard materials
• Double-end design provides two usable cutting ends per tool
• 4-flute spiral configuration with right-hand cut and right-hand flute direction
• 30-degree helix angle for efficient chip evacuation and smooth cutting action
• Centercutting geometry allows plunge milling operations
• Bright/uncoated finish for compatibility with a wide range of cutting fluids

Compatibility

Designed for use in standard end mill holders and collet chucks accepting a 3/16 inch shank diameter. Suitable for CNC and manual milling applications on ferrous and non-ferrous materials.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully powered down and locked out before changing tooling. Secure the shank in a clean, properly sized collet or end mill holder and torque the retention mechanism per the machine manufacturer's specifications. Inspect the cutting edges for chips or wear before each use and replace the tool at the opposite end when one end is spent.
