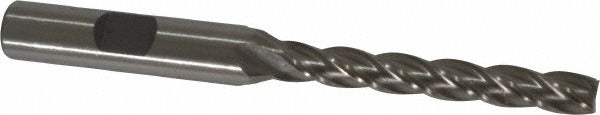

Value Collection 723-3402 Square End Mill 1/4 in 4 Flute Cobalt

Product Description

The VALUE COLLECTION 723-3402 is a single-end, square-profile cobalt end mill designed for milling ferrous and hard materials in vertical machining centers and manual mills. Manufactured from M42 cobalt high-speed steel, it offers greater heat and wear resistance than standard M2 HSS tooling. The 1/4 inch cutting diameter pairs with a 3/8 inch shank, and the 1-3/4 inch length of cut gives it reach for slotting, profiling, and peripheral milling operations. At 3-9/16 inches overall length, this is classified as an extra-long series tool, suitable for deep-pocket and extended-reach applications where standard-length end mills fall short.

This end mill is well suited for job shops, toolrooms, and production environments working in alloy steels, stainless steels, cast iron, and other materials that generate high cutting temperatures. The extra-long OAL makes it a practical choice when workpiece fixturing or part geometry requires additional clearance between the spindle nose and the work surface. It is sold as a single-end tool, meaning only one cutting end is present, and it is intended for use in end mill holders, collet chucks, or weldon-flat holders sized for 3/8 inch shanks.

Key Features

• M42 cobalt HSS construction resists heat buildup during aggressive cuts in hard materials
• 4-flute, spiral design with 30-degree helix angle balances chip evacuation and surface finish
• Centercutting geometry allows plunge milling in addition to peripheral and slot milling
• Bright/uncoated finish is compatible with a wide range of cutting fluids and regrinding services
• Right-hand cut, right-hand flute configuration for standard spindle rotation
• Extra-long series at 3-9/16 inches OAL for extended-reach applications

Compatibility

Designed for use in standard end mill holders, collet chucks, and Weldon-style holders accepting a 3/8 inch shank diameter. Compatible with vertical and horizontal milling machines, VMCs, and manual knee mills running right-hand spindle rotation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the holder. Use the proper torque on set screws or collet nuts per the holder manufacturer specifications, and verify runout with a dial indicator before beginning a cut. Do not exceed the recommended depth-of-cut for the diameter, and confirm coolant delivery method is appropriate for the material being machined.
