Value Collection 722-4048 Square End Mill 15/32 in 4 Flute Hss

Product Description

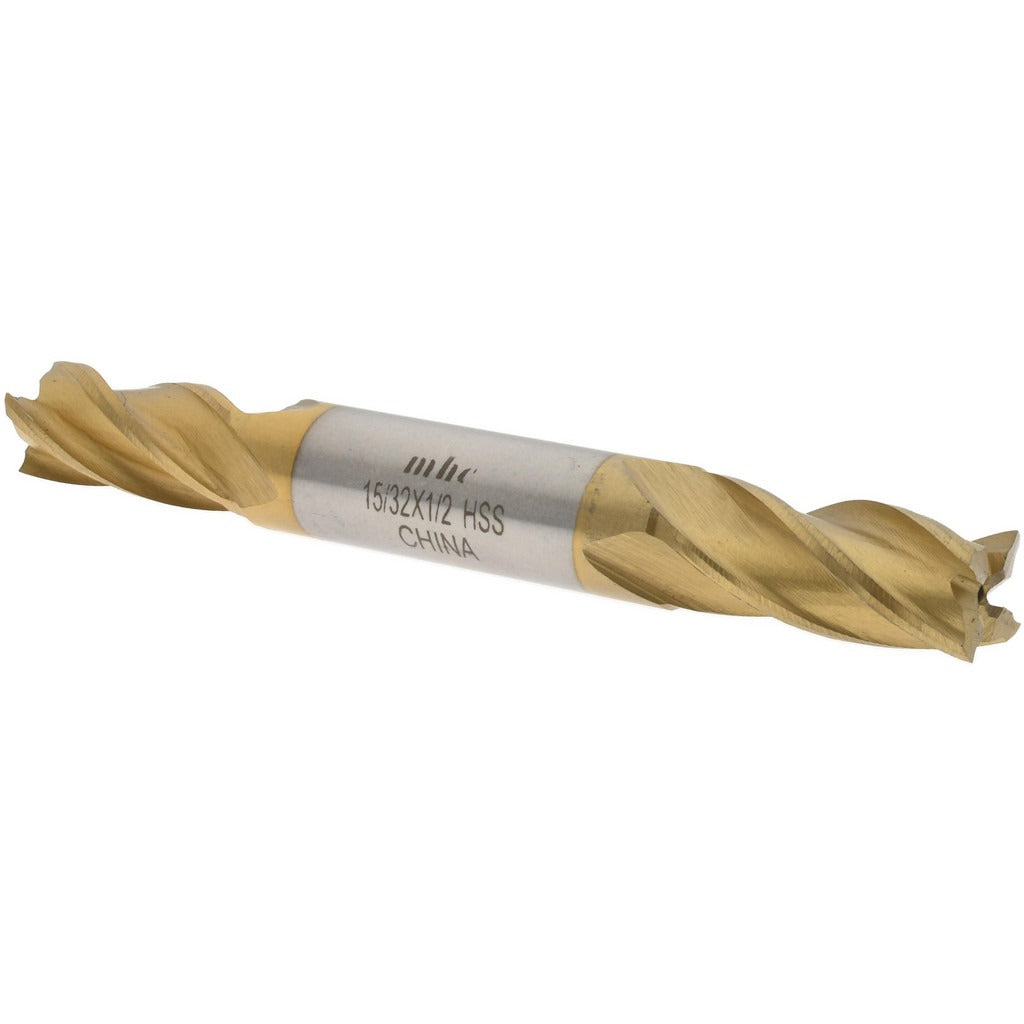

The VALUE COLLECTION 722-4048 is a double-end square end mill designed for milling operations in metal and general machining applications. Built from M2 high speed steel with a titanium nitride (TiN) coating, this tool delivers improved wear resistance and extended tool life compared to uncoated HSS. The mill measures 15/32 inches (0.4688 inches) in diameter with a 1 inch length of cut and a 4-1/8 inch overall length. It features four spiral flutes with a 30-degree helix angle and right-hand cutting and flute direction. Installed by machinists and tool-and-die professionals, it is well suited to general-purpose slotting, profiling, and peripheral milling.

This end mill is suited for light to medium-duty material removal on mills, machining centers, and manual knee mills in job shop and maintenance environments. The double-end design provides two usable cutting ends, extending the service life per tool. Center-cutting capability allows plunge entry without pre-drilling. The 1/2 inch shank diameter fits standard ER collet chucks, end mill holders, and Weldon-style holders commonly found in trade and production shops.

Key Features

• Double-end design with two cutting ends for extended tool use
• M2 high speed steel construction for toughness in interrupted cuts
• TiN coating increases surface hardness and reduces friction at the cutting edge
• Center-cutting geometry allows direct plunge entry
• 30-degree helix angle promotes smooth chip evacuation in spiral flute path
• Right-hand cut and right-hand flute direction for standard spindle use

Compatibility

Designed as a direct-fit replacement or standard tooling selection for any machine spindle accepting a 1/2 inch shank end mill holder, ER collet, or Weldon-style chuck in fractional inch tooling systems.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the holder to the minimum engagement depth recommended by the holder manufacturer to prevent pullout under cutting loads. Do not exceed the rated speed and feed parameters for M2 HSS tooling in the workpiece material being machined.
