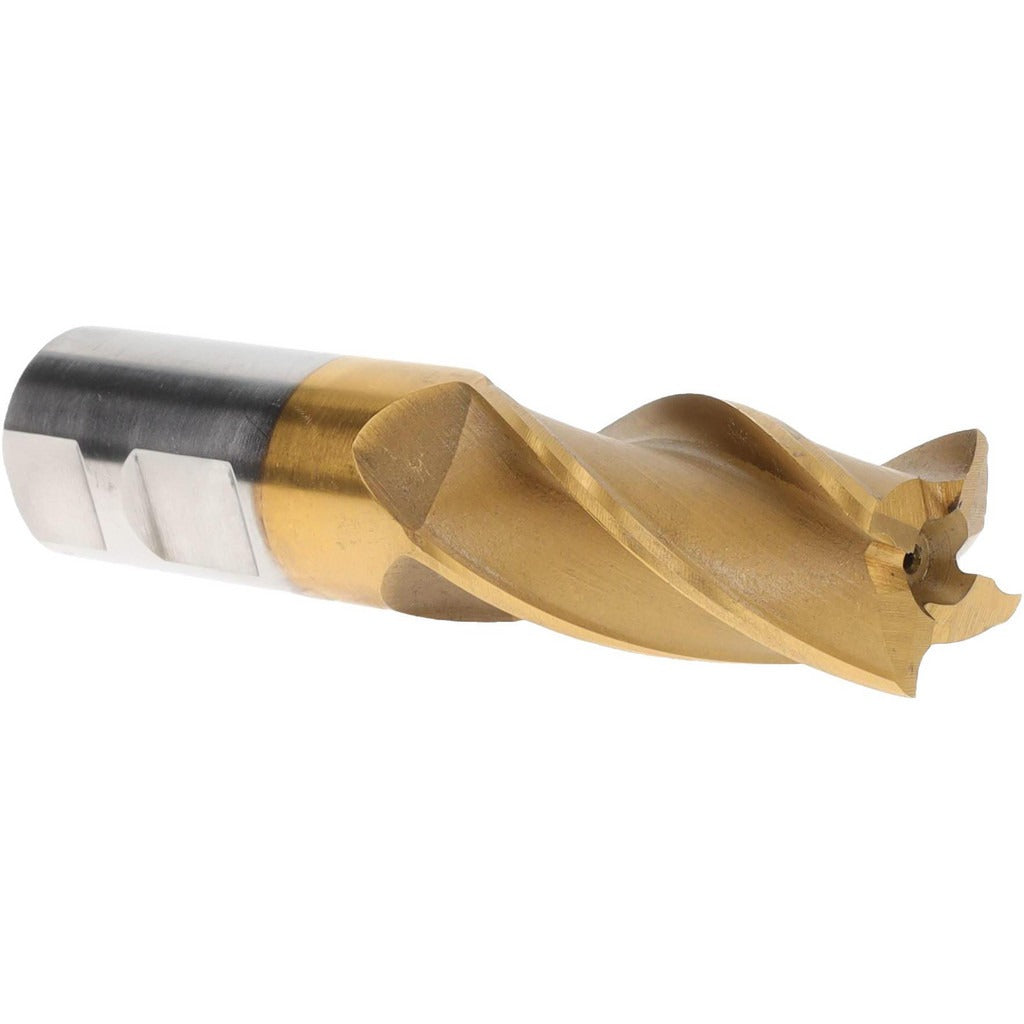

Value Collection 722-3107 Square End Mill 1 in 4 Flute Hss Tin

Product Description

The VALUE COLLECTION 722-3107 is a single-end square end mill designed for milling flat surfaces, shoulders, slots, and pockets in metal and similar materials. Built from M2 high speed steel and finished with a TiN (titanium nitride) coating, this tool offers solid wear resistance and heat tolerance for general-purpose machining. It carries a 1-inch mill diameter, a 2-inch length of cut, and a 30-degree helix angle with four right-hand spiral flutes. The 1-inch shank diameter and 4.5-inch overall length make it compatible with standard milling machine and CNC toolholders used in production and maintenance shop environments.

This end mill is suited for milling operations in job shops, maintenance facilities, and light production environments. The TiN coating reduces friction and extends tool life compared to uncoated HSS tooling, making it a practical choice for ferrous and non-ferrous materials at moderate cutting speeds. The regular-length profile fits standard toolholding setups without requiring extended-reach adapters. It is installed and used by machinists and CNC operators working on manual mills and machining centers.

Key Features

• M2 high speed steel construction for toughness and re-sharpenability
• TiN coating reduces friction and improves tool life over uncoated HSS
• 30-degree right-hand helix with four right-hand spiral flutes for efficient chip evacuation
• Single-end design with 1-inch diameter and 2-inch length of cut
• Non-centercutting geometry — not intended for direct plunge operations
• Regular-length series fits standard toolholders without extended-reach setup

Compatibility

Designed as an OEM-style replacement or standard tooling option for milling machines and machining centers accepting a 1-inch straight shank end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the milling machine spindle is fully powered down and locked out before loading or removing the end mill from the toolholder. Use an appropriate end mill holder or collet rated for a 1-inch shank diameter and torque the retention mechanism per the toolholder manufacturer specification. Because this tool is non-centercutting, avoid direct axial plunge cuts — use ramping or helical entry strategies instead.
