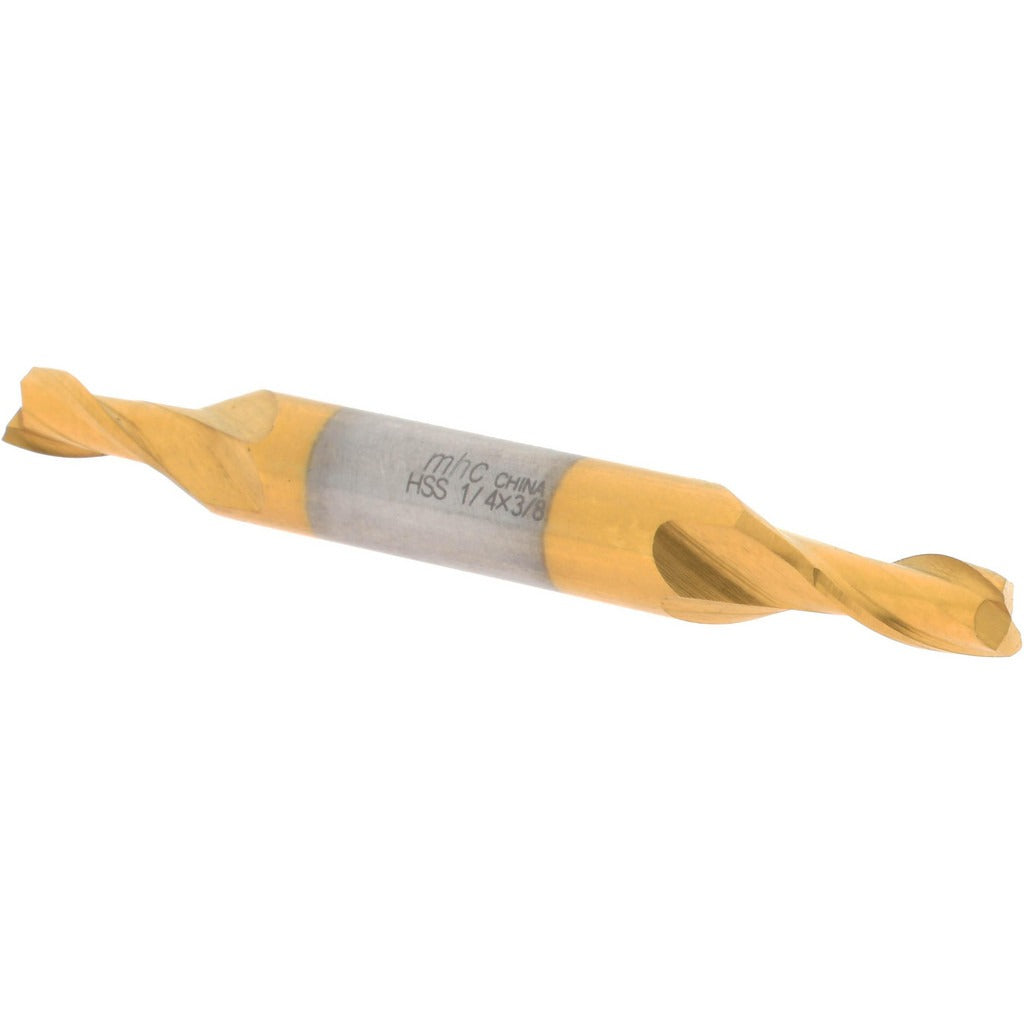

Value Collection 722-2024 Square End Mill 1/4 in 2 Flute Hss

Product Description

The VALUE COLLECTION 722-2024 is a double-end, two-flute square end mill designed for general-purpose milling in metalworking and machining applications. Built from M2 high speed steel with a TiN (titanium nitride) coating, it delivers solid wear resistance and extended tool life compared to uncoated HSS tooling. The mill diameter is 0.25 inches with a 0.5-inch length of cut, a 0.375-inch shank diameter, and a 3.125-inch overall length. The 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. Both ends are usable, effectively doubling the service life of a single tool. This end mill is suited for machinists, tool-and-die makers, and CNC operators working in production and job-shop environments.

This end mill is intended for milling steel, stainless steel, cast iron, and high-temperature alloys. The double-end configuration makes it practical for shops that want to maximize tooling value on lighter cuts and contour work. The right-hand cutting and right-hand flute direction are standard for conventional vertical milling machines and CNC machining centers. The regular-length designation means it fits standard tool holders without extended-reach clearance concerns. It is sold individually and is appropriate for roughing and finishing passes on ferrous and heat-resistant workpiece materials.

Key Features

• Double-end design provides two usable cutting ends for extended tool life
• TiN coating improves surface hardness and reduces friction during cutting
• M2 high speed steel construction handles steel, stainless steel, cast iron, and high-temp alloys
• 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces
• Center-cutting capability allows plunge entry into workpiece material
• Right-hand cut and right-hand spiral flute direction compatible with standard milling setups

Compatibility

Designed for use with standard 3/8-inch collets or end mill holders on vertical milling machines and CNC machining centers. Suitable for primary workpiece materials including steel, stainless steel, cast iron, and high-temperature alloys (material codes P, M, K, S).

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully in a clean, undamaged collet or end mill holder and torque to the machine manufacturer's specification. Ensure the machine spindle is fully stopped before changing or adjusting tooling. Do not exceed the end mill's rated cutting parameters for the workpiece material, as overloading an HSS end mill can cause premature wear or tool breakage.
