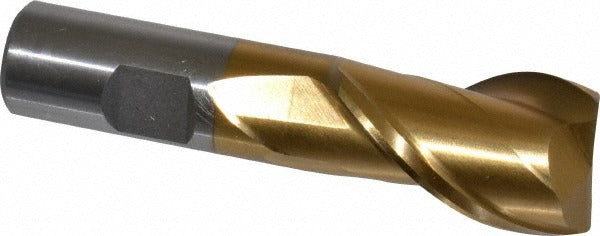

Value Collection 722-1103 Square End Mill 1 in 2 Flute Hss Tin

Product Description

The VALUE COLLECTION 722-1103 is a single-end square end mill designed for general-purpose milling operations in ferrous and non-ferrous materials. Manufactured from M2 high speed steel with a titanium nitride (TiN) coating, it offers improved surface hardness and wear resistance compared to uncoated HSS tooling. The 1 inch cutting diameter and 2-flute spiral geometry are suited for slotting, profiling, and peripheral milling where chip clearance and finish quality matter. The right-hand cut, right-hand flute configuration is standard for conventional milling setups on manual and CNC knee mills, bed mills, and machining centers.

This end mill is built for job shop, maintenance, and production environments where a reliable fractional-inch HSS end mill covers a wide range of steel, aluminum, and general-purpose workpiece materials. The 30-degree helix angle promotes smooth cutting action and helps evacuate chips efficiently during slotting and side-milling passes. The centercutting design allows plunge entry directly into the workpiece without a pre-drilled hole, adding versatility to the tool path.

Key Features

• M2 high speed steel construction for toughness and re-sharpenability
• TiN coating increases surface hardness and extends tool life in abrasive cuts
• 30-degree helix angle for smooth chip evacuation and reduced cutting forces
• Centercutting geometry allows direct plunge milling
• Right-hand cut and right-hand flute — standard orientation for most milling setups
• Single-end, regular-length profile fits standard ER and shell mill holders with 3/4 inch bore

Compatibility

Designed as a standard fractional-inch single-end square end mill for use in any milling machine or machining center accepting a 3/4 inch shank diameter tool holder.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Secure the 3/4 inch shank in a collet chuck, end mill holder, or equivalent tool holder rated for the spindle taper in use, and torque the retention hardware per the tool holder manufacturer's specification. Confirm runout with a dial indicator before production cuts. Always bring spindle to a full stop before changing tooling, and follow applicable machine guarding and PPE requirements per OSHA 1910.212.
