Value Collection 722-1067 Square End Mill 3/4in 2 Flute Hss Tin

Product Description

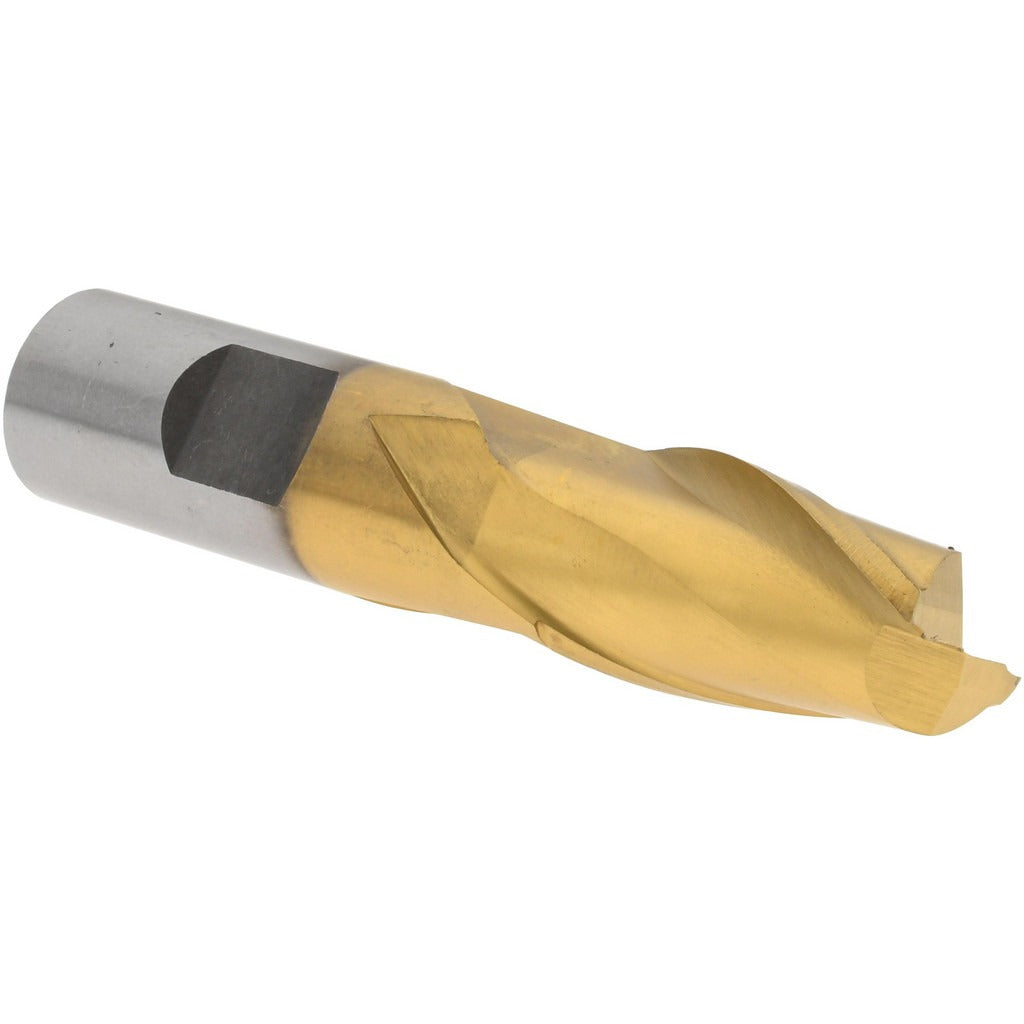

The VALUE COLLECTION 722-1067 is a single-end square end mill designed for general-purpose milling operations in metal and non-ferrous materials. Built from M2 high speed steel and finished with a titanium nitride (TiN) coating, it delivers improved wear resistance and longer tool life compared to uncoated HSS tooling. The 3/4 inch cutting diameter pairs with a 1-5/16 inch length of cut and a 30-degree helix angle for efficient chip evacuation. With two flutes and a right-hand cutting direction, this tool suits slotting, profiling, and peripheral milling tasks on manual and CNC milling machines. Overall length is 3-9/16 inches.

This end mill is suited for job shops, toolrooms, and production environments where a reliable fractional-inch HSS end mill is required. The centercut geometry allows plunge entry, making it practical for cavity work and ramping operations. The regular-length profile fits standard tool holders and collet chucks with a 3/4 inch bore. It is a single-quantity item, appropriate for maintenance stock or direct job use.

Key Features

• M2 high speed steel construction for toughness and re-sharpenability
• TiN coating increases surface hardness and reduces friction at the cutting edge
• 30-degree helix angle promotes smooth chip flow and reduces cutting forces
• Centercut design allows direct plunge cutting without pre-drilling
• Right-hand cut and right-hand flute spiral for standard milling machine spindles
• Two flutes provide adequate chip clearance for softer metals and general-purpose work

Compatibility

Designed as a standard fractional-inch square end mill compatible with 3/4 inch collet chucks, end mill holders, and Weldon-style tool holders used on manual knee mills and CNC vertical machining centers.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Secure the shank fully in a clean, properly sized collet or end mill holder before tightening to manufacturer torque specifications for that holder type. Inspect the collet and holder bore for chips or wear before seating the tool. Always bring the spindle to a full stop before changing tooling.
