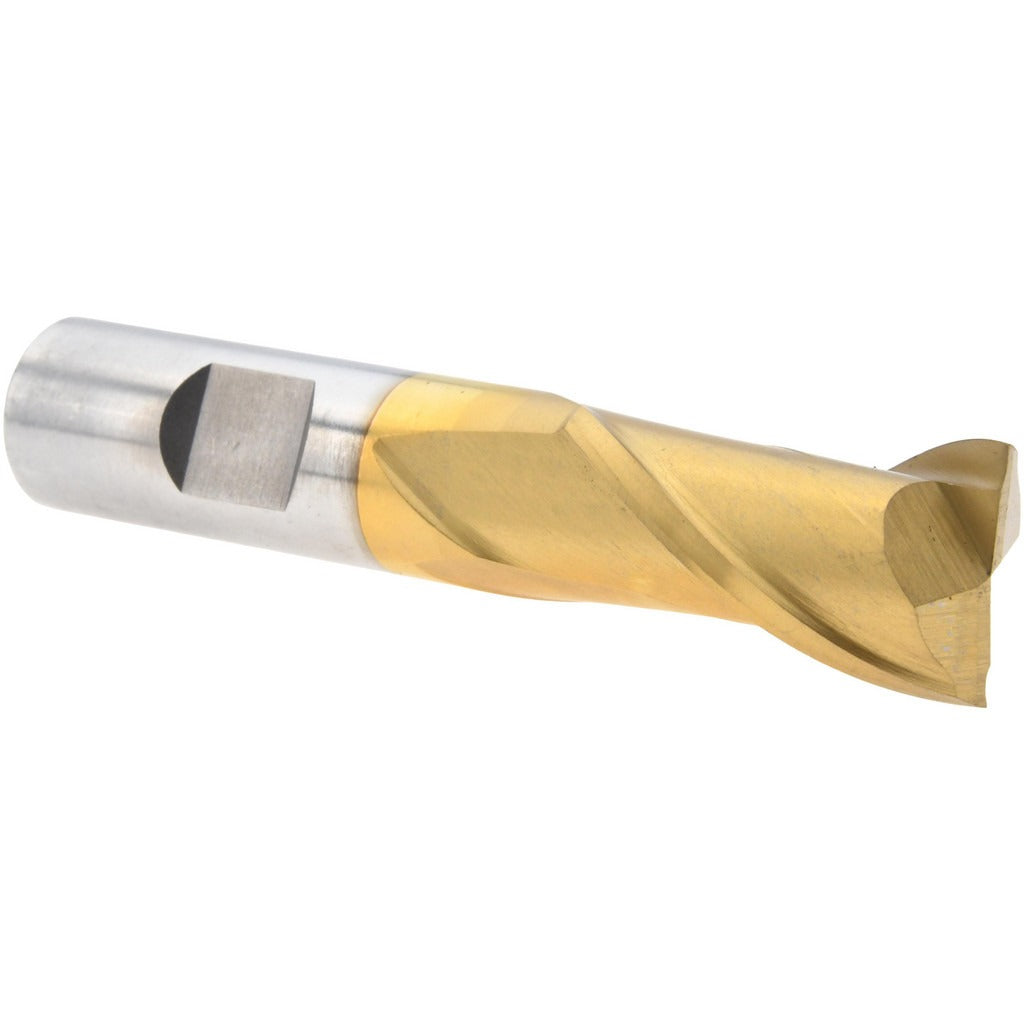

Value Collection 722-1065 Square End Mill 3/4in 2 Flute Hss Tin

Product Description

The VALUE COLLECTION 722-1065 is a single-end square end mill designed for general-purpose milling operations in metal fabrication and machining environments. Built from M2 high speed steel with a TiN (titanium nitride) coating, it delivers solid wear resistance and extended tool life across a range of ferrous and non-ferrous materials. The cutter measures 3/4 inches in diameter with a 1-5/16 inch length of cut, an overall length of 3-7/16 inches, and a 5/8 inch shank diameter. The 30-degree helix angle and two-flute spiral geometry promote efficient chip evacuation and smooth cutting action. This end mill is centercutting, allowing plunge entry into the workpiece.

This end mill suits right-hand cutting and right-hand flute direction applications in standard CNC machining centers, knee mills, and manual milling machines. It is a regular-length tool appropriate for slotting, profiling, and step milling operations in job shop, toolroom, and production settings. No extended reach or coolant-through capability is included, making it best suited for conventional flood or mist coolant setups. Machinists and tool-and-die professionals working with steel, aluminum, and similar materials will find this a practical general-purpose option.

Key Features

• M2 high speed steel construction for toughness in interrupted cuts and general milling
• TiN coating reduces friction and extends cutting edge life compared to uncoated HSS
• Centercutting design allows direct plunge entry without pre-drilling
• 30-degree helix angle with spiral flutes for efficient chip evacuation
• Right-hand cut and right-hand flute direction for standard milling spindles
• Single-end configuration; regular length series 722

Compatibility

Designed as a standard fractional-inch shank end mill compatible with milling machine collets and tool holders accepting a 5/8 inch shank diameter in right-hand rotation spindles.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully in a clean, properly sized collet or end mill holder and tighten to the tool holder manufacturer's specification before running the spindle. Inspect the cutting edges for chips or damage before each use. Never exceed the machine's rated speed and feed recommendations for the workpiece material and tool diameter.
