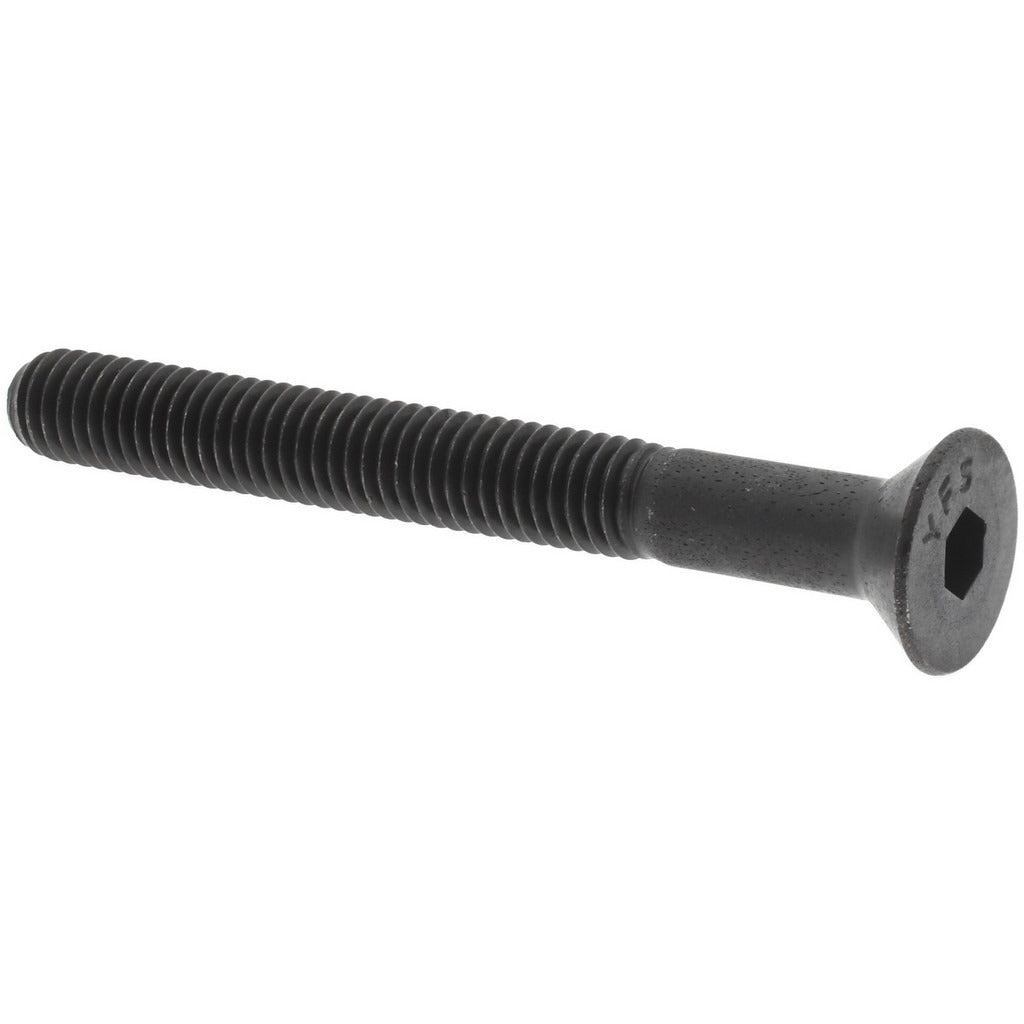

Value Collection 721132PR Flat Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 721132PR is a flat socket cap screw designed for applications requiring a flush or countersunk fastener profile. Sized at 10-32 x 1-3/4 inches overall length, it features an 82-degree flat head and a 1/8-inch hex socket drive. The fastener is partially threaded and manufactured from alloy steel with a black oxide finish, which provides mild corrosion resistance and reduced light reflection. It conforms to ASME/ANSI B18.3 and ASTM F835 standards. This screw is installed by machinists, millwrights, and mechanical assemblers in precision fixture and machine component work where a low-profile head is required.

This flat socket cap screw is suited for use in metal fabrication, machine assembly, jig and fixture construction, and general industrial applications where a countersunk socket drive fastener is needed. The UNF thread form makes it appropriate for fine-pitch threading applications in steel and other ferrous substrates. The black oxide finish is commonly specified where surface reflectivity must be minimized or where a uniform dark appearance is required in the finished assembly.

Key Features

• 82-degree flat head profile for flush or countersunk seating
• 1/8-inch hex socket drive for precise torque application
• 10-32 UNF thread for fine-pitch engagement in ferrous materials
• Partially threaded shank for controlled clamping in through-hole applications
• Alloy steel construction meets ASME/ANSI B18.3 and ASTM F835 standards
• Black oxide finish provides mild corrosion resistance and low surface reflectivity

Compatibility

Designed as an OEM-style replacement or direct-fit fastener for applications requiring a 10-32 UNF flat socket cap screw with an 82-degree head angle, conforming to ASME/ANSI B18.3 and ASTM F835 specifications.

Installation Notes

Installation requires a 1/8-inch hex key or hex socket driver. Countersink the mating hole to 82 degrees to achieve proper head seating and flush surface engagement. Follow applicable torque specifications for the assembly material and joint requirements as defined by the governing engineering standard. Do not exceed the rated torque for the fastener grade.
