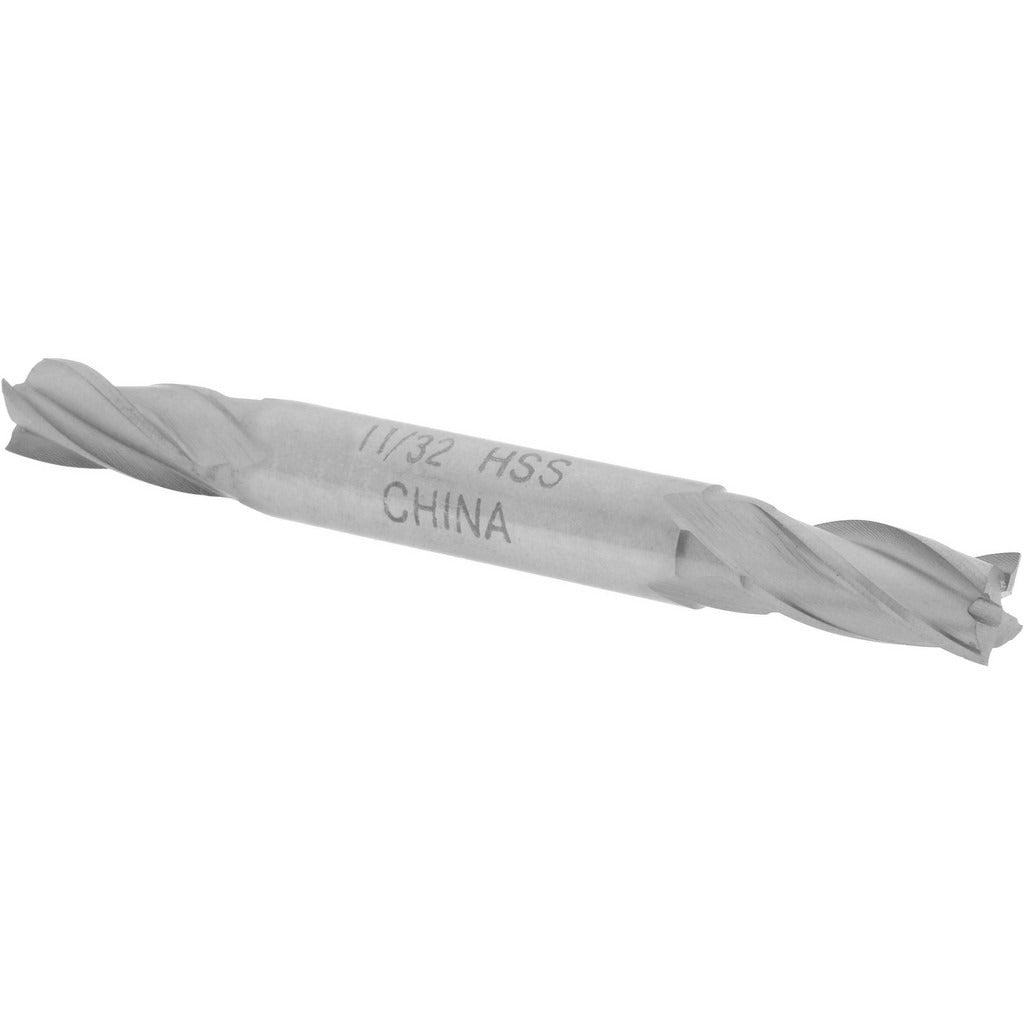

Value Collection 720-4032 Square End Mill 11/32 in 4 Flute Hss

Product Description

The VALUE COLLECTION 720-4032 is a double-end, 4-flute square end mill manufactured from M2 high speed steel with a bright/uncoated finish. It features an 11/32-inch (0.3438 inches) cutting diameter and a 3/4-inch length of cut, making it well-suited for general-purpose milling, slotting, profiling, and peripheral cutting operations in machine shops and production environments. The 3/8-inch shank diameter fits standard end mill holders and collets. With a 30-degree helix angle and right-hand cutting and flute direction, this tool delivers efficient chip evacuation and smooth cutting action on a range of workpiece materials. The double-end design extends tool life by providing two usable cutting ends per tool.

This end mill is intended for use in CNC machining centers, knee mills, and manual milling machines where fractional-inch tooling is standard. It is appropriate for milling operations on steel, aluminum, brass, and similar machinable materials. The regular length designation and 3-1/2-inch overall length suit it to general-purpose setups where extended reach is not required. It is typically installed and operated by machinists and toolroom technicians in industrial and job-shop settings.

Key Features

• Double-end design provides two cutting ends, extending tool service life
• M2 high speed steel construction offers good wear resistance for general-purpose milling
• 4-flute configuration with 30-degree helix angle promotes efficient chip removal
• Right-hand cut and right-hand flute direction for standard milling machine spindles
• Bright/uncoated finish suitable for a wide range of common workpiece materials
• 3/8-inch shank diameter fits widely available collets and end mill holders

Compatibility

Designed as a general-purpose fractional-inch square end mill compatible with standard end mill holders and collets accepting a 3/8-inch shank diameter on CNC and manual milling machines.

Installation Notes

Installation and use of this end mill should be performed by qualified machinists following established shop safety practices. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the holder. Verify collet or holder runout is within acceptable tolerance before beginning a cut to avoid premature tool wear or breakage. Do not exceed the rated speed and feed parameters appropriate for the workpiece material and tool diameter.
