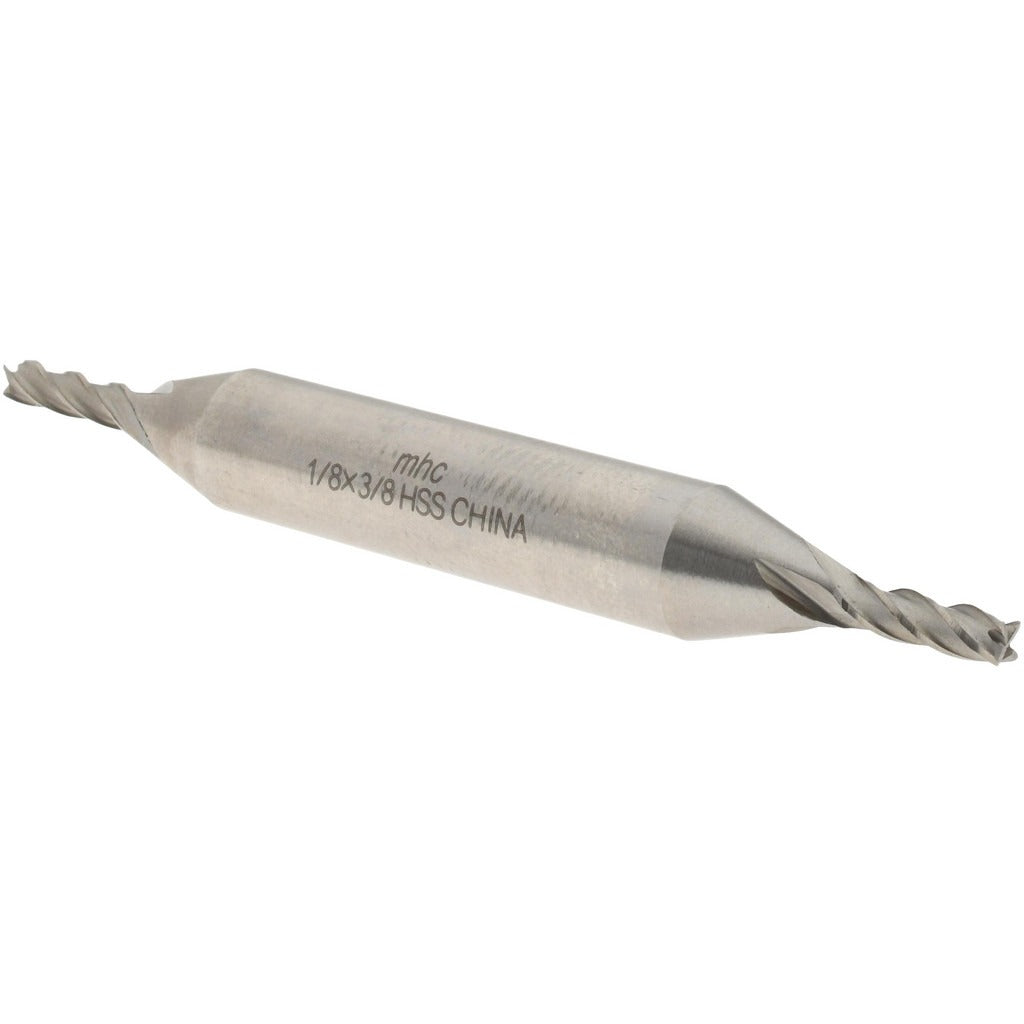

Value Collection 720-4004 Square End Mill 1/8in Hss 4-flute

Product Description

The VALUE COLLECTION 720-4004 is a double-end, four-flute square end mill designed for general-purpose milling operations in high speed steel (HSS) grade M2. With a 1/8 inch mill diameter and a 3/8 inch length of cut, it handles slotting, profiling, and peripheral milling in ferrous and non-ferrous materials. The bright/uncoated finish suits applications where coating is unnecessary or where regrinding is anticipated. At 3-1/16 inches overall length with a 3/8 inch shank diameter, this regular-length tool fits standard collet chucks and end mill holders common in manual mills and CNC machining centers. Licensed machinists and toolroom technicians are the primary users.

This end mill is suited to light-duty milling tasks in job shops, maintenance environments, and toolroom settings. The double-end configuration provides two usable cutting ends, extending tool life between replacements. The 30-degree right-hand helix and right-hand cutting direction produce efficient chip evacuation during climb or conventional milling in aluminum, mild steel, brass, and similar materials. It is not center-cutting, so it should not be used for direct plunge cuts without a pre-drilled pilot hole.

Key Features

• Double-end design provides two cutting ends per tool
• Four flutes with 30-degree right-hand spiral helix for efficient chip removal
• M2 high speed steel construction for general-purpose machinability across common metals
• Bright/uncoated finish allows easy regrinding and inspection
• Right-hand cutting direction compatible with standard spindle rotation
• Not center-cutting — requires pilot hole for plunge entry

Compatibility

Designed as an OEM-style replacement or standard toolroom end mill for use with 3/8 inch collet chucks or end mill holders on manual knee mills and CNC machining centers accepting fractional-inch shank tooling.

Installation Notes

Installation is performed by machinists or toolroom technicians familiar with collet and end mill holder systems. Ensure the machine spindle is fully stopped and power is locked out before changing tooling. Seat the shank fully into the holder to the recommended engagement depth and torque the set screw or collet nut per the holder manufacturer specification. Confirm runout with a dial indicator before beginning a cut to avoid premature tool wear or poor surface finish.
