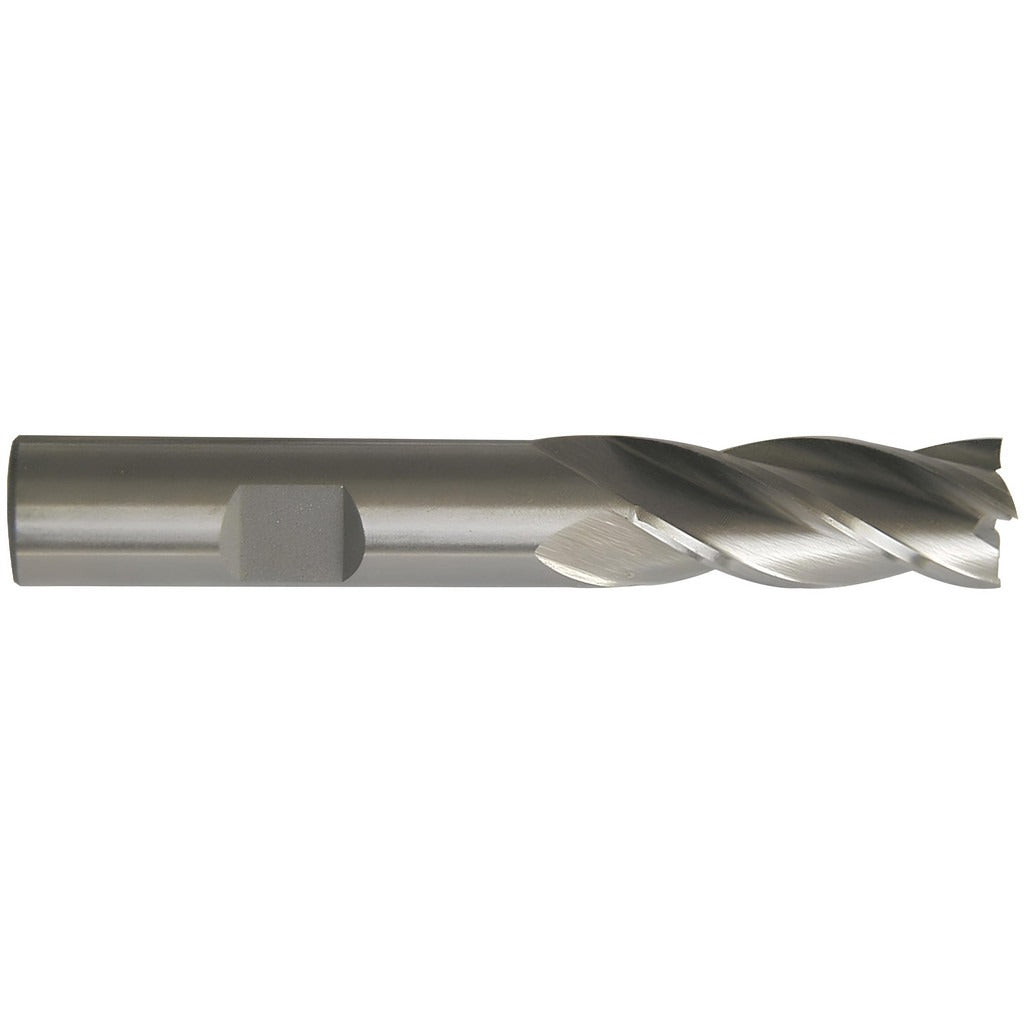

Value Collection 720-3620 Square End Mill 1-1/2in 4 Flute Hss

Product Description

The VALUE COLLECTION 720-3620 is a square end mill designed for material removal and profile milling in metalworking applications. Built from M2 high speed steel with a bright/uncoated finish, it carries a 1.5-inch cutting diameter, a 6-inch length of cut, and a 1.25-inch Weldon flat shank. The four-flute, right-hand spiral design with a 30-degree helix angle promotes efficient chip evacuation and stable cutting. At 8.5 inches overall length, this is an extra-long configuration suited for deep-cavity and extended-reach operations where a standard-length end mill cannot reach. Licensed machinists and CNC operators are the primary users.

This end mill is appropriate for milling steel, stainless steel, cast iron, and non-ferrous metals in both manual and CNC milling machine setups. The extra-long overall length makes it well suited for deep-pocket milling, tall workpiece profiles, and fixture-clearance situations in job shop and production machining environments. The Weldon flat shank provides positive drive in side-lock tool holders, reducing pullout risk during aggressive cuts in ferrous materials.

Key Features

• 1.5-inch cutting diameter with 6-inch length of cut for deep-reach applications
• M2 high speed steel construction for general-purpose ferrous and non-ferrous milling
• Four right-hand spiral flutes at 30-degree helix for balanced chip flow
• Weldon flat shank prevents pullout in side-lock holders
• Bright/uncoated finish — compatible with a wide range of cutting fluids and oils
• Not center-cutting — requires a pre-drilled or pre-bored entry point for plunge operations

Compatibility

Designed for use in milling machines accepting a 1.25-inch Weldon flat shank in side-lock or end mill holders. Compatible with primary workpiece materials including steel, stainless steel, cast iron, and non-ferrous metals per ISO material codes P, M, K, and N.

Installation Notes

Installation should be performed by a qualified machinist following standard toolroom practices. Secure the Weldon flat shank in a properly sized side-lock holder and torque the set screw against the flat to prevent axial pullout — do not seat the screw on the flute relief. Power down and lock out the spindle before changing tooling. Because this end mill is not center-cutting, plunge entry into solid material is not recommended; use a pre-drilled hole or ramp entry instead.
