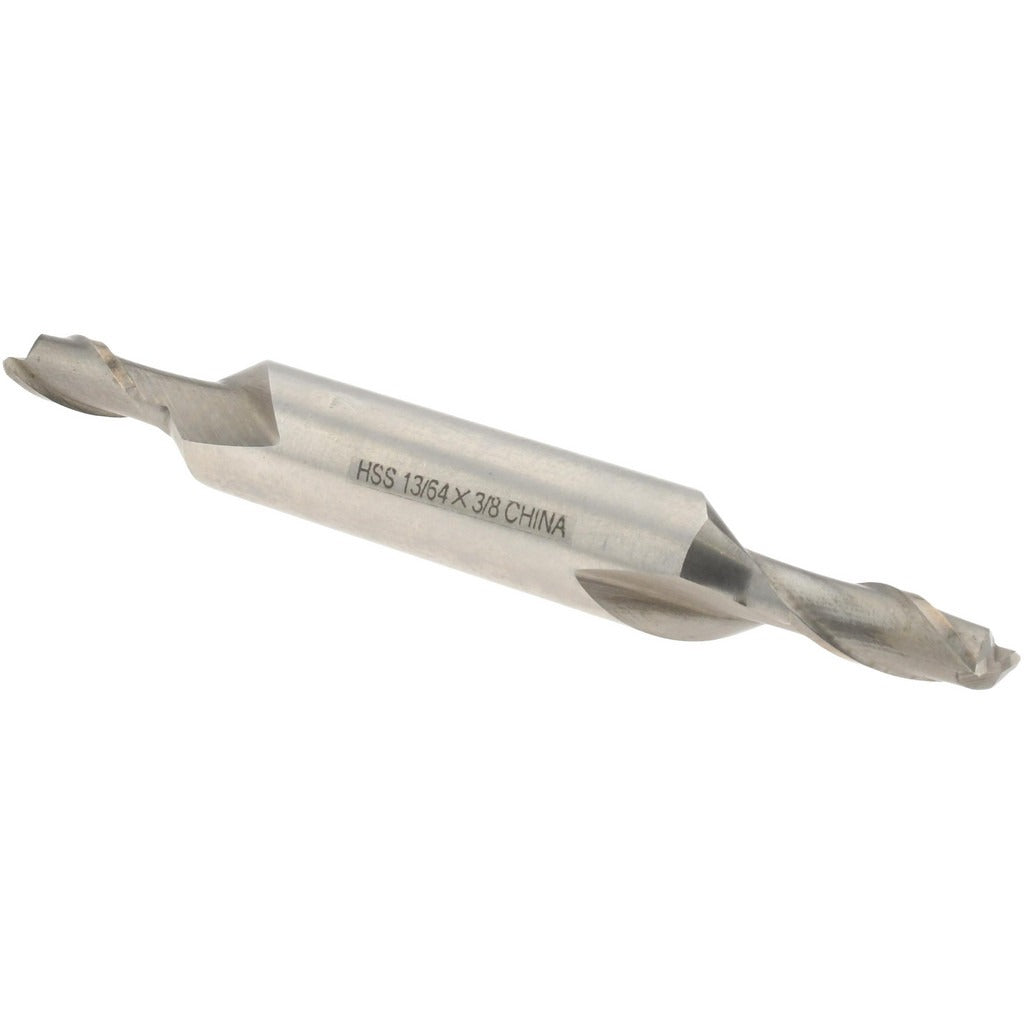

Value Collection 720-2018 Square End Mill 13/64 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-2018 is a double-end, two-flute square end mill designed for material removal in ferrous and high-temperature alloy applications. Manufactured from M2 high speed steel with a bright/uncoated finish, it measures 0.2031 inches (13/64 inches) in cutting diameter with a 0.5 inch length of cut and a 3.125 inch overall length. The 0.375 inch shank diameter provides secure tool holding in standard collet and end mill holders. The 30-degree helix angle promotes efficient chip evacuation and stable cutting action. This tool is suited for milling, slotting, and profiling operations on a range of metals. Machinists and tool-and-die professionals are the primary users. It weighs approximately 0.02 pounds.

This end mill is intended for use on steel, stainless steel, cast iron, and high-temperature alloys, corresponding to material codes P, M, K, and S. The double-end configuration allows the tool to be flipped when one end shows wear, effectively extending service life before the tool is replaced. It fits manual mills, CNC machining centers, and knee mills where a 3/8 inch shank is compatible with the spindle tooling. The regular length designation makes it appropriate for general-purpose milling work where extended reach is not required. Center-cutting geometry allows the tool to plunge directly into the workpiece where applications call for it.

Key Features

• M2 high speed steel construction for durability across ferrous and high-temperature alloy workpieces
• Double-end design extends usable tool life before replacement is needed
• 13/64 inch (0.2031 inch) cutting diameter with 1/2 inch length of cut for detail and slotting work
• 30-degree spiral flute helix promotes chip clearance and reduces heat buildup at the cutting edge
• Center-cutting capable — supports direct plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand flute direction compatible with standard spindle rotation

Compatibility

Designed for use in machining centers, knee mills, and manual milling machines accepting a 3/8 inch shank. Primary workpiece materials include steel, stainless steel, cast iron, and high-temperature alloys (material codes P, M, K, S). Part of the VCCCDE-HSS-2-30H series of double-end high speed steel end mills.

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and lock out the spindle before inserting or removing the tool from the collet or end mill holder. Verify the shank is fully seated and the collet nut is tightened to the machine manufacturer's specification before operation. Inspect both cutting ends for chipping or wear before use, as the uncoated finish provides no visual wear indicator coating.
