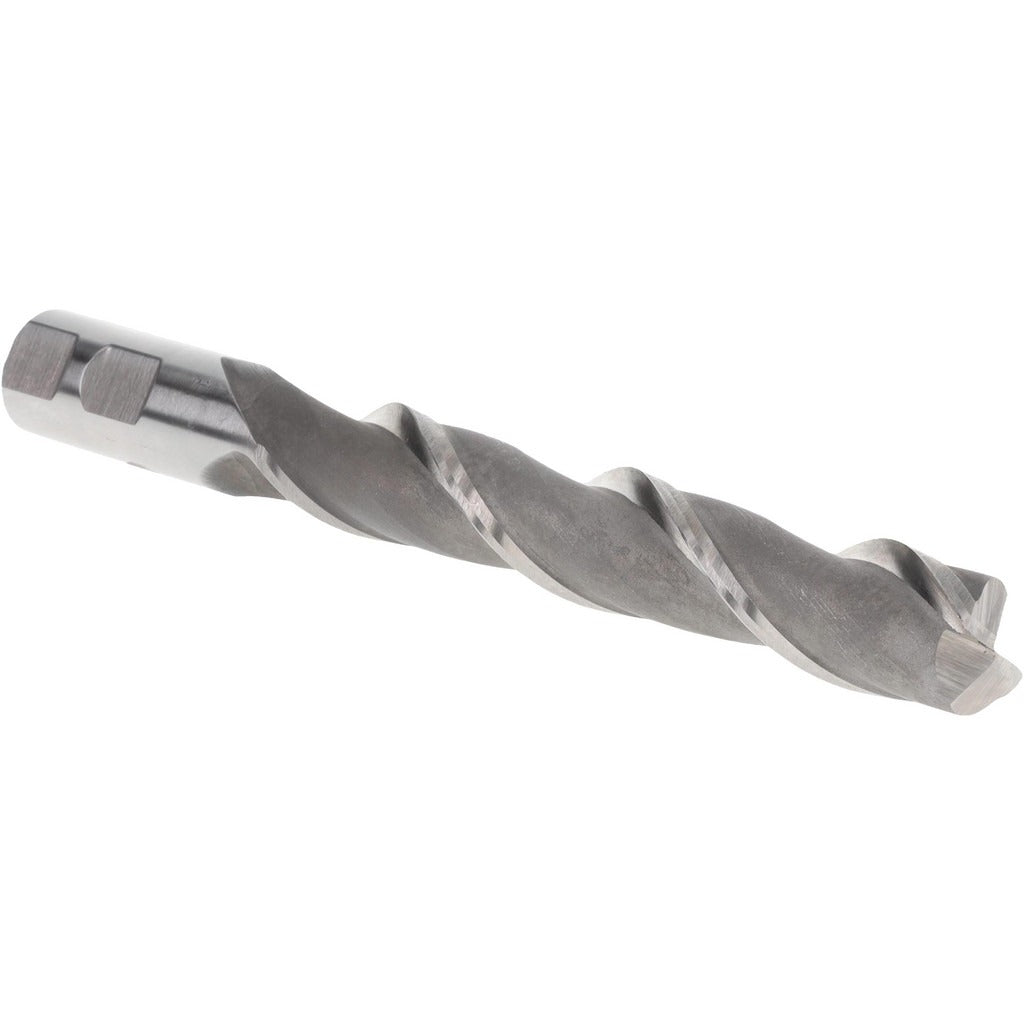

Value Collection 720-1547 Square End Mill 7/8 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1547 is a single-end, square-profile end mill designed for milling operations in aluminum and non-ferrous materials. Constructed from M2 high speed steel with a bright/uncoated finish, it measures 0.875 inches in diameter with a 5-inch length of cut and a 7.25-inch overall length. The 37-degree helix angle promotes efficient chip evacuation in softer metals. This extra-long configuration gives machinists reach for deeper cavities and stepped features that standard-length end mills cannot access.

This end mill is suited for manual mills, CNC machining centers, and knee mills running aluminum, brass, copper, and other non-ferrous workpiece materials. The extra-long length type makes it a practical choice for mold work, die pockets, and deep-shoulder milling where extended reach is required. It is a single-end tool, so once the cutting end is worn it is replaced rather than flipped. The right-hand cut and right-hand flute spiral are the standard orientation for conventional setups on most vertical and horizontal milling machines.

Key Features

• M2 high speed steel construction for toughness and re-sharpenability
• 37-degree helix angle for improved chip flow in non-ferrous materials
• Extra-long length type — 7.25 inches OAL with 5 inches of cutting length
• Center-cutting geometry allows direct plunge entry
• Bright/uncoated finish suited for aluminum and non-ferrous applications
• Right-hand cut, right-hand spiral flute direction — standard orientation

Compatibility

Designed for use on milling machines and machining centers with tool holders or collets accepting a 0.875-inch shank diameter. Primary workpiece materials are aluminum and non-ferrous metals per the manufacturer material code N designation.

Installation Notes

Installation should be performed by a qualified machinist following standard toolroom practices. Ensure the spindle is fully stopped and locked out before loading or removing the end mill from the collet or end mill holder. Confirm the tool holder bore matches the 0.875-inch shank diameter exactly before tightening. Verify runout with a dial indicator after clamping, especially given the extra-long overhang, as excessive runout accelerates wear and can cause chatter or tool breakage.
