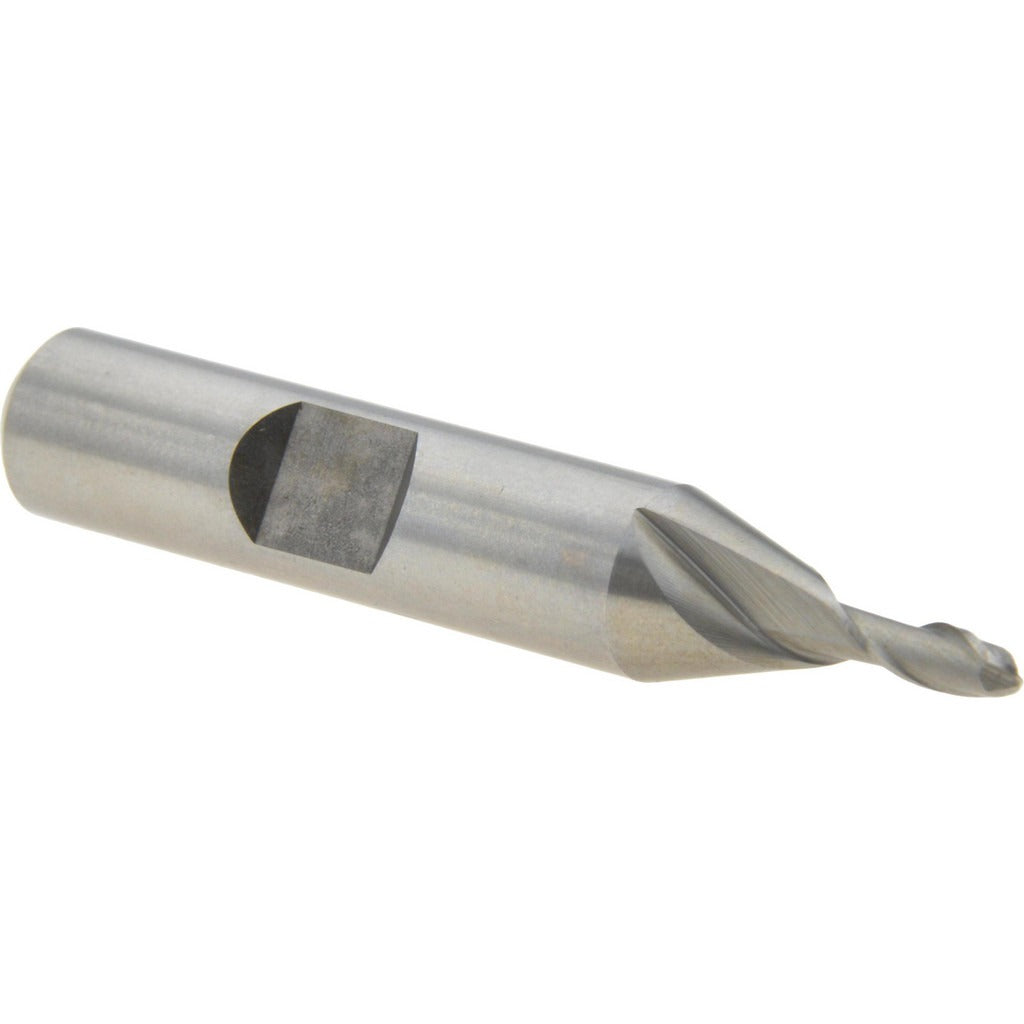

Value Collection 720-1401 Ball End Mill 1/8 in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1401 is a single-end ball end mill designed for milling contoured surfaces, slots, and three-dimensional profiles in a wide range of materials. Manufactured from M2 high speed steel with a bright, uncoated finish, this tool delivers reliable performance in general-purpose machining applications. The 1/8 inch cutting diameter and 3/8 inch length of cut make it well suited for small-feature work where precision and controlled chip evacuation are priorities. Two right-hand spiral flutes provide efficient cutting action and help clear chips from the work zone. Machinists and tool-and-die professionals rely on this geometry for contouring, pocket milling, and finish passes on ferrous and non-ferrous workpieces.

This ball end mill is used in manual milling machines and CNC machining centers across job shops, toolrooms, and production environments. Its standard-length overall dimension of 2-5/16 inches and 3/8 inch shank diameter make it compatible with common collet and end mill holder systems. Applications include contour milling, radius slotting, and die work on materials such as mild steel, aluminum, brass, and plastics. The right-hand cutting direction suits standard spindle rotation on vertical mills and machining centers.

Key Features

• 1/8 inch cutting diameter with ball-nose geometry for contour and radius work
• M2 high speed steel construction for toughness and wear resistance across a broad material range
• Bright, uncoated finish suited for general-purpose use and regrinding
• Two right-hand spiral flutes for efficient chip evacuation and smooth cutting action
• Single-end design with 3/8 inch shank diameter for secure tool holding
• Standard overall length of 2-5/16 inches minimizes deflection in typical setups

Compatibility

Designed as a standard-geometry ball end mill for use in collet chucks, end mill holders, and milling chucks that accept a 3/8 inch shank diameter, fitting common vertical milling machines and CNC machining centers.

Installation Notes

Installation is performed by a machinist or toolroom technician. Always power down and lock out the spindle before changing tooling. Seat the shank fully in the holder and tighten to the holder manufacturer's specification using the appropriate wrench. Inspect the cutting edges for chips or wear before each use, and verify runout with a dial indicator when tight tolerances are required.
