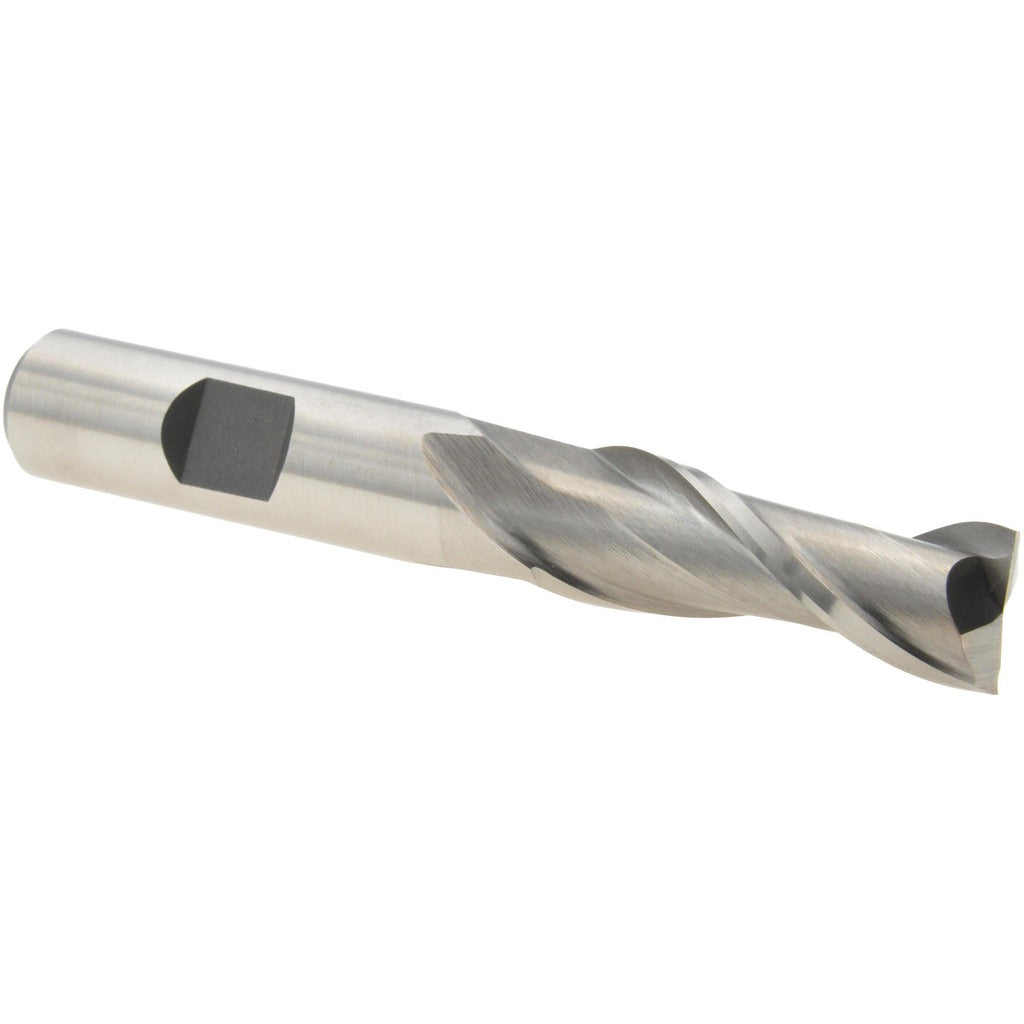

Value Collection 720-1223 Square End Mill 1/2in 2 Flute Hss

Product Description

The VALUE COLLECTION 720-1223 is a 2-flute, single-end square end mill designed for general-purpose milling operations in a wide range of metalworking applications. Manufactured from M2 high speed steel with a bright/uncoated finish, this end mill features a 1/2 inch cutting diameter, a 1-1/2 inch length of cut, and a 30-degree helix angle. The right-hand cutting and right-hand flute direction make it a standard choice for conventional milling setups on manual or CNC machines. It is center-cutting, allowing it to be used for plunge entry as well as peripheral and slot milling.

This end mill is suited for machining steel, stainless steel, cast iron, and aluminum and non-ferrous materials, covering a broad range of workpiece types encountered in job shop, maintenance, and production environments. With a 1/2 inch shank diameter and 3-1/2 inch overall length, it mounts directly in standard collet chucks, end mill holders, and milling machine spindles without adapters. The regular length designation keeps it rigid enough for general slotting, profiling, and facing cuts.

Key Features

• M2 high speed steel construction for solid wear resistance across ferrous and non-ferrous workpiece materials
• 2-flute geometry supports efficient chip evacuation in slotting and full-width cuts
• 30-degree right-hand spiral helix provides a balance of cutting action and surface finish
• Center-cutting design allows direct plunge entry without a pre-drilled pilot hole
• Bright/uncoated finish maintains sharp edge geometry and suits a wide range of cutting fluids
• Single-end configuration with 1/2 inch shank fits standard collet and end mill holder tooling

Compatibility

Designed as a direct-fit replacement or standard tooling addition for milling machines and machining centers using 1/2 inch collets or end mill holders. Suitable for workpieces in steel, stainless steel, cast iron, and aluminum and non-ferrous material families.

Installation Notes

Installation is performed by machinists or toolroom personnel familiar with milling machine setup and toolholding systems. The shank should be fully seated in the holder to the recommended engagement depth per the toolholder manufacturer before torquing set screws or collet nuts. Verify spindle runout at the cutting diameter before commencing cuts, as excessive runout accelerates tool wear and degrades surface finish. Always power down and lock out the machine spindle before changing or inspecting tooling.
