Value Collection 720-1025 Square End Mill 5/16 in 2 Flute Hss

Product Description

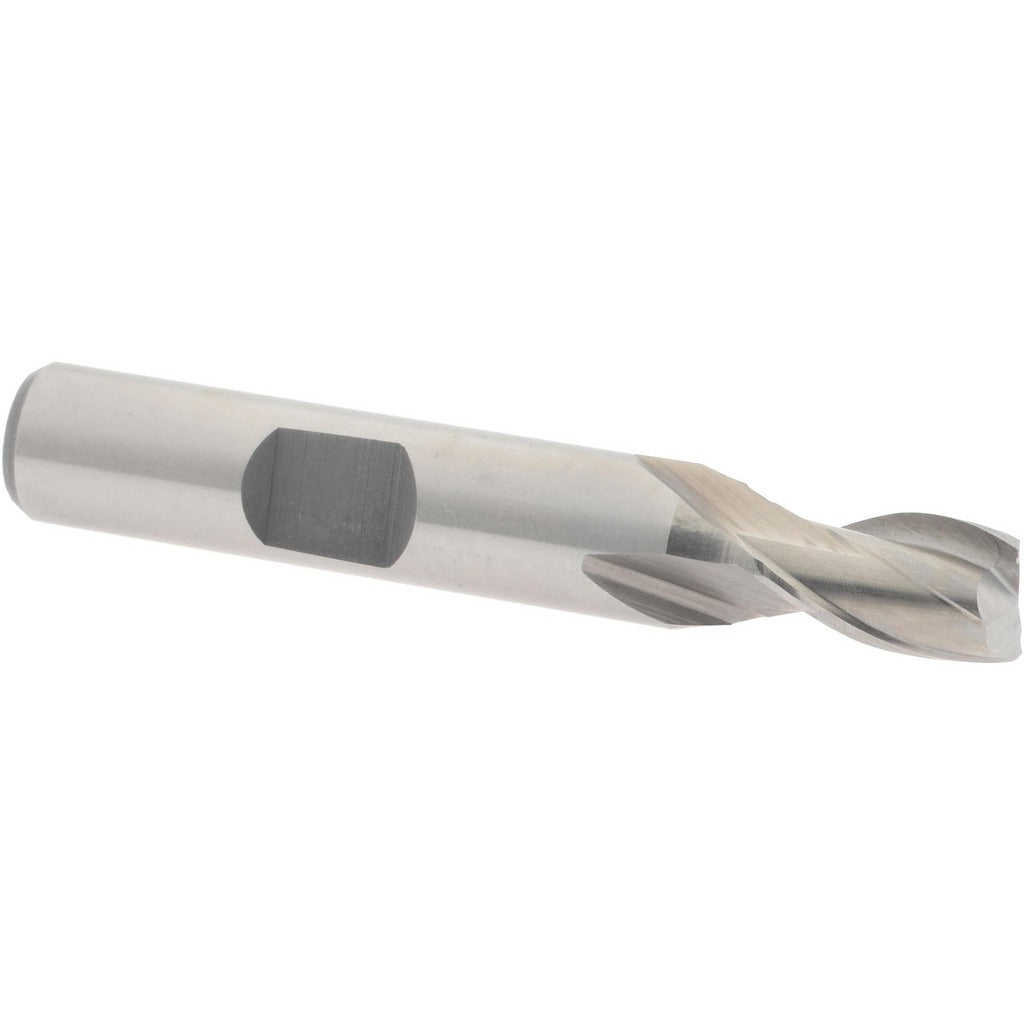

The VALUE COLLECTION 720-1025 is a single-end, square profile end mill designed for material removal and slotting operations on a wide range of workpiece materials. It is constructed from M2 high speed steel and carries a bright, uncoated finish. The cutter measures 5/16 inch in diameter with a 9/16 inch length of cut, a 3/8 inch shank diameter, and a 2-5/16 inch overall length. The two-flute, right-hand spiral geometry with a 30-degree helix angle promotes efficient chip evacuation during milling passes. This tool is suited for use in manual mills, knee mills, and CNC machining centers where a general-purpose HSS end mill is appropriate.

The 720-1025 is built for milling steel, stainless steel, cast iron, aluminum, and other non-ferrous materials in regular-length reach applications. Its center-cutting design allows plunge entry as well as conventional peripheral and slot milling. The fractional-inch shank sizing fits standard collets and end mill holders found throughout production and maintenance machine shops. This is a single-end tool, so the full diameter tolerance is maintained for the service life of the cutter without the option of flipping to a second end.

Key Features

• M2 high speed steel construction for durability across steel, stainless, cast iron, and non-ferrous workpieces
• 5/16 inch cutting diameter with 9/16 inch length of cut for light-to-medium depth passes
• 2-flute design promotes chip clearance in slot milling and plunge operations
• 30-degree right-hand spiral helix for balanced cutting action and reduced chatter
• Center-cutting geometry permits direct plunge entry without pre-drilling
• Bright, uncoated finish — compatible with cutting oils and soluble coolants applied externally

Compatibility

Designed as a general-purpose fractional-inch end mill for use in standard 3/8 inch collets and end mill holders on manual knee mills and CNC vertical machining centers. Compatible workpiece materials include steel, stainless steel, cast iron, aluminum, and non-ferrous alloys.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in an e-stop or lockout state per applicable shop safety procedures. Seat the 3/8 inch shank fully into the collet or holder and torque the retention nut to the toolholder manufacturer specification. Inspect the cutting edges for chips or wear before each use, as a damaged HSS end mill can deflect and produce out-of-tolerance features. External coolant or cutting oil is recommended when machining steel and stainless steel to extend tool life.
