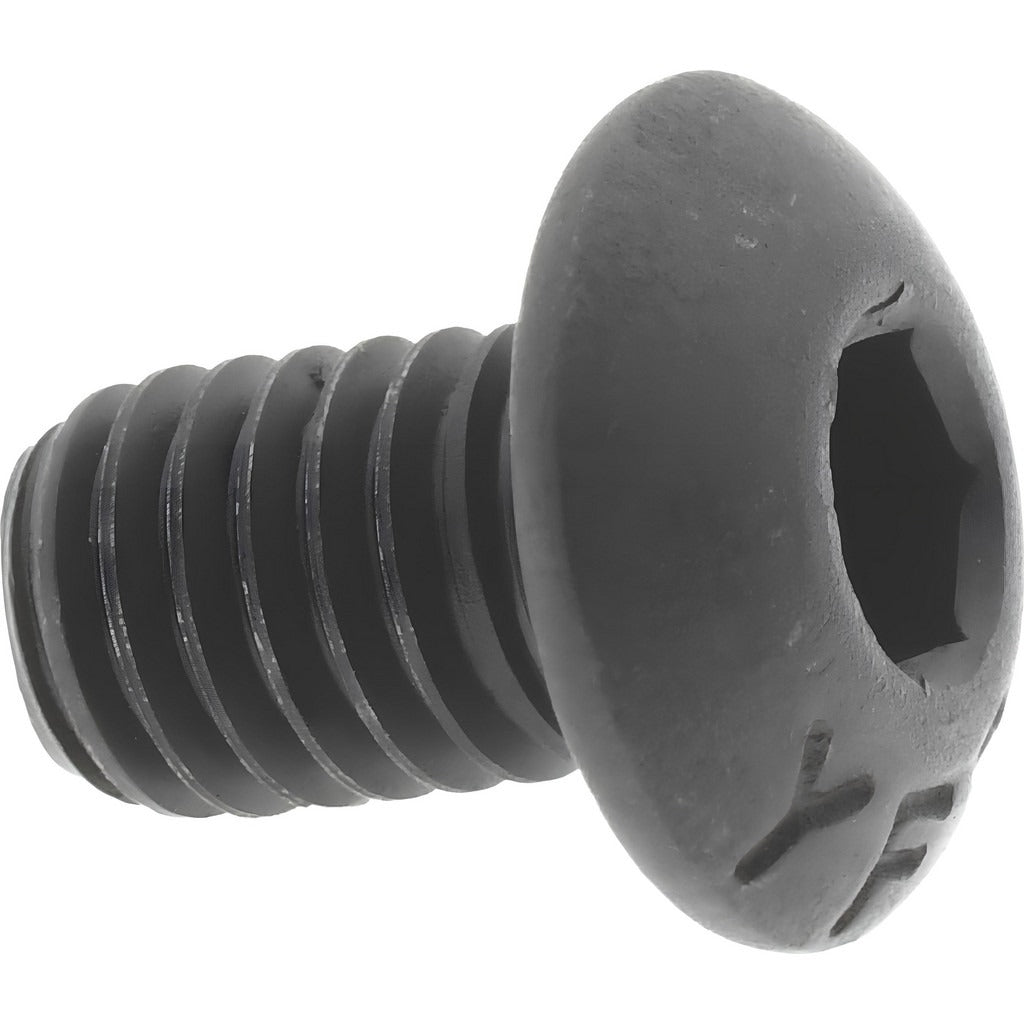

Value Collection 701107P Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 701107P is a 10-32 UNF button socket cap screw designed for applications where a low-profile fastener head is required. Manufactured from alloy steel with a black oxide coating, this fully threaded screw measures 5/16 inches under the head and uses a 1/8-inch hex socket drive. It meets ANSI/ASME B18.3 and ASTM F835 standards and carries a thread fit class of 3A with a hardness rating of 36-43 HRC. The right-hand thread orientation and black oxide finish make it well suited for mechanical assemblies, machine components, and fixtures where corrosion resistance and a clean appearance matter.

This screw is used in a wide range of light industrial, mechanical, and fabrication applications. Its button head profile keeps the fastener seated close to the workpiece surface, which is important in assemblies with tight clearances or moving parts. The 10-32 UNF thread pitch is common in instrumentation, electronics enclosures, and precision machine components. Licensed machinists, millwrights, and mechanical assemblers are the typical installers, though the fastener also sees use in HVAC equipment panels, electrical enclosures, and similar trade-work settings.

Key Features

• Button head profile provides low-profile seating with smooth, rounded top surface
• 1/8-inch hex socket drive for use with standard hex keys or Allen wrenches
• Alloy steel construction with 36-43 HRC hardness for high tensile strength
• Black oxide coating for mild corrosion resistance and reduced light reflection
• Fully threaded 10-32 UNF right-hand thread with 3A fit class for consistent engagement
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as an OEM-style replacement or general-use fastener for any application requiring a 10-32 UNF fully threaded button socket cap screw with a 5/16-inch length under head.

Installation Notes

Install using a 1/8-inch hex key or Allen driver. Ensure the mating threaded hole is clean and free of debris before installation. Do not exceed the torque capacity appropriate for the 10-32 thread size and alloy steel grade. Follow applicable mechanical or electrical codes when using this fastener in regulated assemblies.
