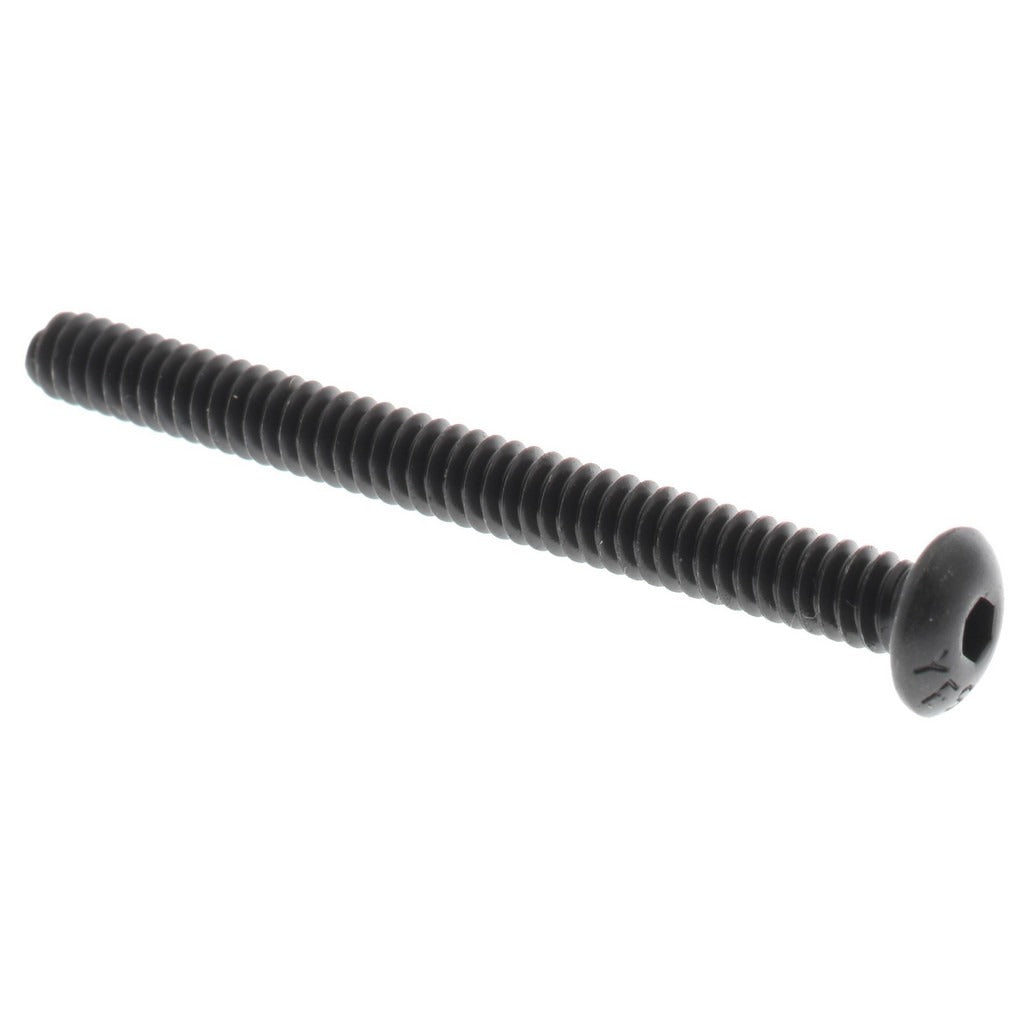

Value Collection 701060PR Button Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 701060PR is a button socket cap screw in a 6-32 x 1-1/2 inch configuration, manufactured from alloy steel with a black oxide coating. The button head profile offers a low-profile alternative to standard socket cap screws, seating flush-adjacent to surfaces where clearance is limited. A 5/64 inch hex socket drive accepts a standard hex key for installation. Hardness is rated at 36-43 HRC per ASTM F835, making it appropriate for medium-to-high-strength fastening applications. This screw meets ANSI/ASME B18.3 dimensional standards and carries a UNC thread form in a 3A fit class with right-hand thread direction.

This fastener is suited for mechanical assemblies, machine frames, enclosures, brackets, and tooling fixtures where a low-profile head and hex socket drive are required. The black oxide finish provides modest corrosion resistance and reduces surface reflectivity, making it a common choice in industrial, manufacturing, and maintenance environments. It is fully threaded along the 1-1/2 inch length under the head. Machinists, millwrights, maintenance technicians, and fabricators commonly specify this type of fastener for both OEM builds and field repairs.

Key Features

• Button head profile provides low clearance height of 0.073 inches for tight-space installations
• Alloy steel construction with 36-43 HRC hardness per ASTM F835
• Black oxide coating for moderate corrosion resistance and reduced surface glare
• 5/64 inch hex socket drive for standard hex key or hex bit installation
• Fully threaded 6-32 UNC thread, 3A fit class, right-hand direction
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard replacement or OEM-spec button socket cap screw for any assembly specifying a 6-32 UNC fully threaded button head fastener with a 5/64 inch hex drive and 1-1/2 inch length under head.

Installation Notes

Install with a calibrated 5/64 inch hex key or hex bit driver. Ensure the mating tapped hole is clean and free of debris before threading to protect the 3A thread fit. Do not exceed the torque capacity appropriate for the 6-32 thread size and alloy steel grade as specified by applicable mechanical standards. Follow all relevant industry and facility safety procedures when working with power tools or in confined assembly areas.
