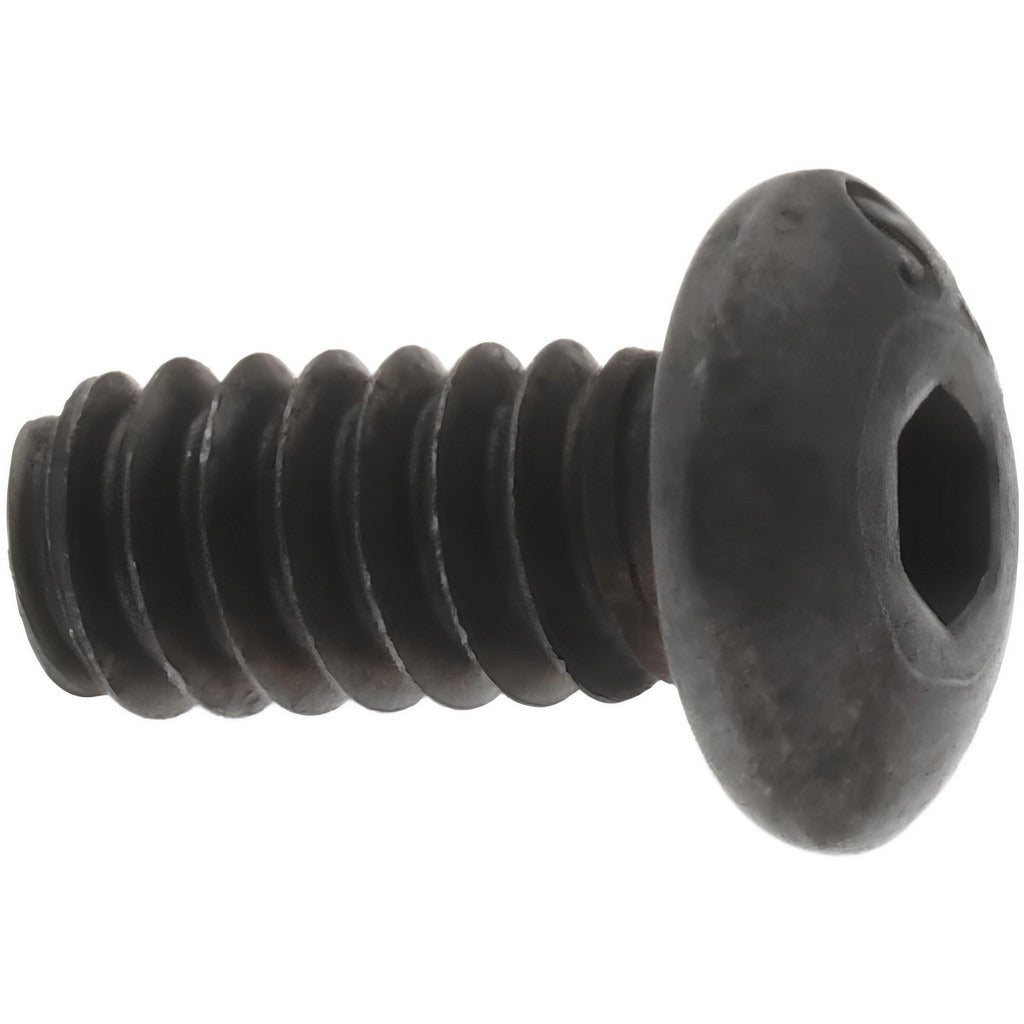

Value Collection 701047PR Button Socket Cap Screw 6-32

Product Description

The VALUE COLLECTION 701047PR is a button socket cap screw designed for fastening applications that require a low-profile head and a secure hex socket drive. Manufactured from alloy steel with a black oxide finish, this screw measures 5/16 inch in length under the head and carries a 6-32 UNC thread. It meets ANSI/ASME B18.3 and ASTM F835 standards, with a hardness rating of 36-43 HRC. The 5/64 inch hex socket drive accepts standard allen keys or hex bit drivers. This fastener is installed by machinists, maintenance technicians, and mechanical assemblers in a wide range of industrial and equipment applications.

The 701047PR suits applications where a conventional hex cap screw head would interfere with adjacent components or housings. The button head profile distributes clamping load over a wider bearing surface while keeping the installed height low. Typical uses include panel fastening, enclosure assembly, machine guarding, and light structural connections in both commercial and industrial settings. The black oxide coating provides mild corrosion resistance and reduces light reflection on exposed surfaces.

Key Features

• Button head profile for low installed height and wide bearing surface
• Alloy steel construction with 36-43 HRC hardness for reliable clamping strength
• Black oxide finish for mild corrosion resistance and reduced surface reflectivity
• 5/64 inch hex socket drive compatible with standard allen keys and hex bit drivers
• Fully threaded 6-32 UNC right-hand thread, Thread Fit Class 3A
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard-dimension replacement or stock fastener for any application requiring a 6-32 UNC button socket cap screw conforming to ANSI/ASME B18.3 and ASTM F835 specifications.

Installation Notes

Install and remove using a 5/64 inch hex key or hex socket bit driver. Ensure the mating threaded hole or nut is clean and free of debris before installation. Do not exceed the rated torque range for 6-32 alloy steel fasteners as specified by the applicable ASME standard. Power down or de-energize any equipment before accessing fastened panels or enclosures.
