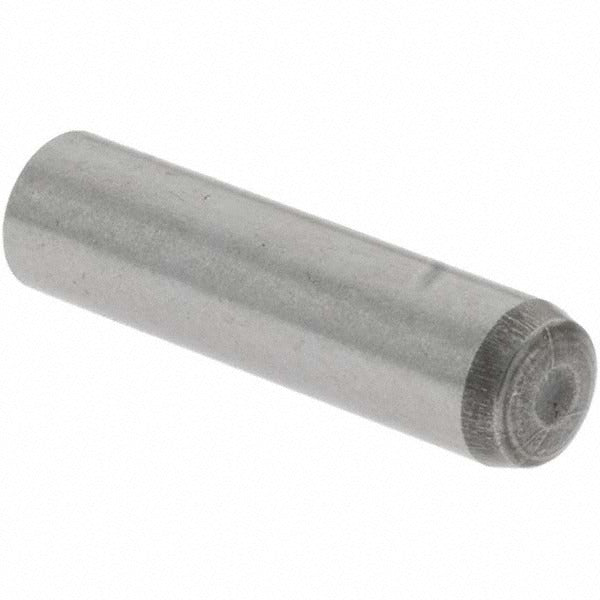

Value Collection 70015 Precision Dowel Pin 5x20mm Grade 8

Product Description

The VALUE COLLECTION 70015 is a precision dowel pin engineered for accurate locating and alignment in mechanical assemblies. Manufactured from Grade 8 alloy steel with a bright finish, this pin measures 5 mm in diameter and 20 mm in overall length with rounded ends. It conforms to DIN 6325 and ISO 8734 fastener standards, making it a reliable choice for applications where tight tolerances and consistent positioning are required. Machinists, tool-and-die makers, and maintenance technicians install these pins in jigs, fixtures, molds, and precision machine components where repeatable part location is critical.

These pins are suited for use in industrial, manufacturing, and maintenance environments. Common applications include fixture building, die-set alignment, and assembly tooling where a hardened, ground-to-tolerance dowel is needed to maintain positional accuracy between mating components. Each package contains 25 pins, supporting production-volume use or stocking for ongoing maintenance operations.

Key Features

• Conforms to DIN 6325 and ISO 8734 standards for precision ground dowel pins
• Grade 8 alloy steel construction for high hardness and wear resistance
• Bright finish for consistent surface quality and dimensional accuracy
• Rounded end type for ease of insertion into mating bores
• 5 mm diameter x 20 mm length for common metric locating applications
• Sold in a pack of 25 for production and stocking convenience

Compatibility

Designed as a DIN 6325 and ISO 8734 compliant precision dowel pin suitable for metric fixture, tooling, and machine assembly applications requiring a 5 mm diameter locating pin.

Installation Notes

Precision dowel pins are typically installed by machinists or maintenance technicians using an arbor press or dead-blow mallet into reamed or ground holes sized to the appropriate interference or transition fit. Always de-burr and clean mating bores before installation to avoid galling or damage to the pin or housing. Avoid driving pins with steel hammers directly on the pin face, as this can alter dimensional accuracy or damage the finish.
