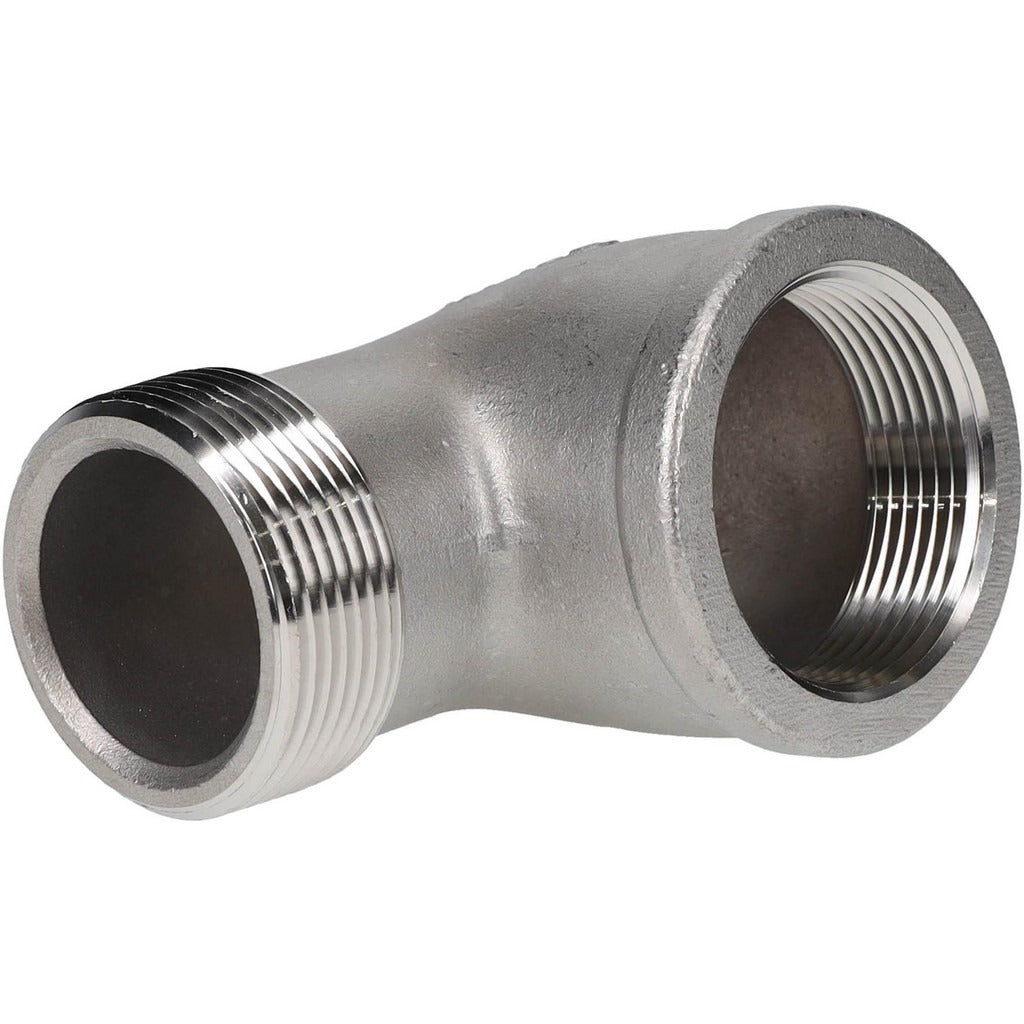

Value Collection 6SLB9011/2 90 Street Elbow 1-1/2 in 316 Ss

Product Description

The VALUE COLLECTION 6SLB9011/2 is a 90-degree street elbow fitting designed for threaded pipe systems requiring a directional change at the connection point. Built from 316 stainless steel to Schedule 40 standards, it handles a maximum working pressure of 150 psi. The fitting uses a female NPT inlet and a male NPT outlet, allowing it to thread directly into another fitting without a nipple between them. Plumbers and pipefitters install this type of elbow in tight-clearance applications where back-to-back threaded connections are needed. The 316 stainless alloy provides resistance to corrosive media and elevated temperatures, making it a suitable choice for industrial, marine, and chemical process piping.

This fitting is used in residential and commercial plumbing, industrial process lines, and marine piping systems where corrosion resistance is a priority. The FNPT x MNPT street configuration is common in close-coupled installations such as valve assemblies, pump inlet and outlet connections, and equipment manifolds. It is appropriate for water, mild chemical, and steam service within the rated pressure limits. Technicians working in sanitary, food-service, or coastal environments often specify 316 stainless over standard 304 for its higher chloride resistance.

Key Features

• 316 stainless steel construction resists corrosion in harsh and chloride-rich environments
• Schedule 40 wall thickness rated to 150 psi working pressure
• Street elbow design with FNPT inlet and MNPT outlet eliminates an intermediate nipple in tight spaces
• 90-degree turn angle for right-angle directional changes in threaded pipe runs
• 1-1/2 inch fitting size suits a wide range of commercial and industrial piping applications

Compatibility

Designed as an OEM-style threaded street elbow for use in Schedule 40 pipe systems requiring 1-1/2 inch NPT connections.

Installation Notes

Installation is performed by licensed plumbers or pipefitters in accordance with applicable IPC or IFGC requirements for the service type. Depressurize and drain the line fully before disassembling any threaded connection. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten threaded fittings, as stress cracking can occur in stainless steel when excessive torque is applied.
