Value Collection 6HB11/4*1/4 Pipe Bushing 316 Ss

Product Description

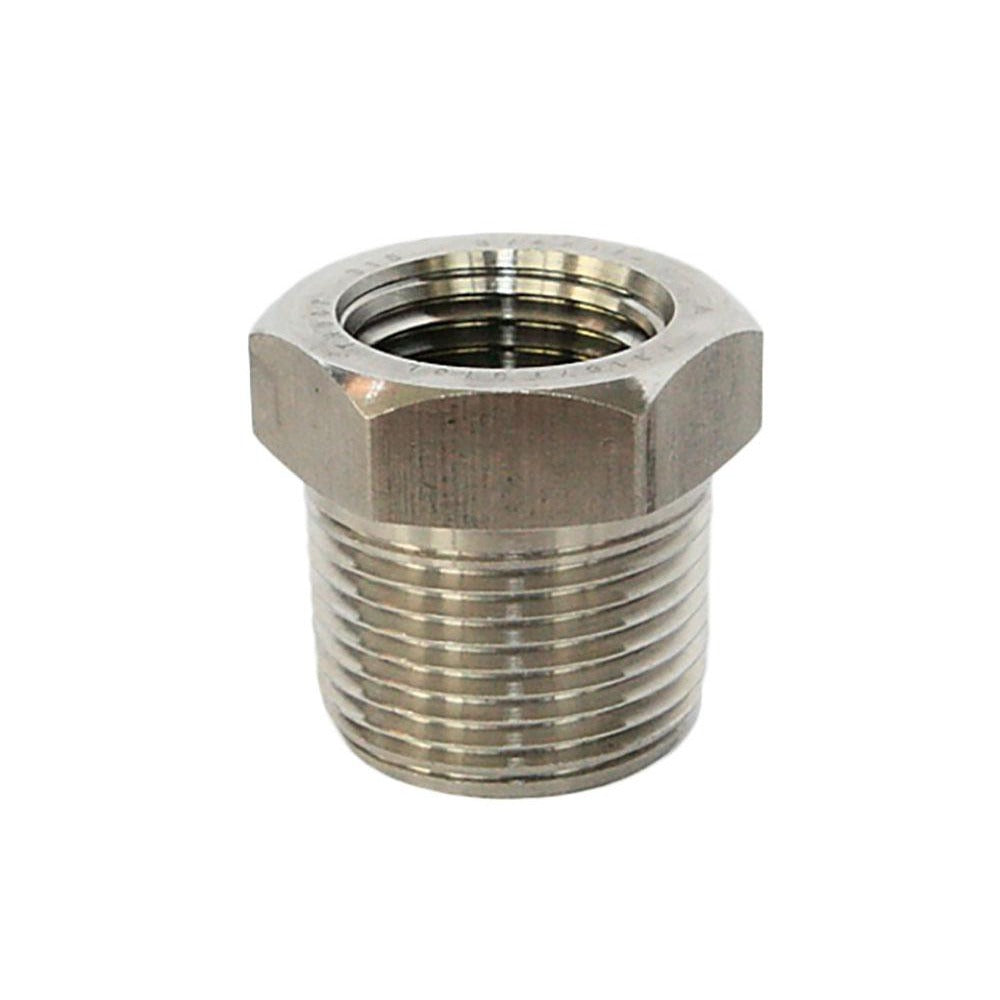

The VALUE COLLECTION 6HB11/4*1/4 is a threaded pipe bushing designed to reduce a 1-1/4 inch female port down to a 1/4 inch male connection. Constructed from 316 stainless steel, this fitting handles corrosive media and wet environments where lower grades fall short. It is rated to 150 psi and follows Schedule 40 dimensions. The end connections are MNPT x FNPT, making it a standard hex bushing for use in threaded piping assemblies. Plumbers, pipefitters, and HVAC technicians install this fitting when transitioning between pipe sizes in compressed air, water, chemical, or process piping systems.

This bushing is suited for residential and light commercial piping applications where a Schedule 40, 150 psi threaded reduction is required. The 316 stainless steel construction makes it appropriate for saltwater, chlorinated, or mildly acidic service environments. It is commonly installed in mechanical rooms, utility piping runs, pump skids, and anywhere a 1-1/4 inch threaded port must accept a 1/4 inch pipe connection. The compact 1-3/16 inch length keeps the fitting profile low in tight spaces.

Key Features

• 316 stainless steel construction resists corrosion in wet and chemical service environments
• MNPT x FNPT end connections for standard threaded assembly without special tooling
• Rated to 150 psi for typical Schedule 40 piping service
• Schedule 40 dimensions for compatibility with standard threaded pipe and fittings
• 1-3/16 inch overall length suits installations with limited clearance
• Reduces 1-1/4 inch female port to 1/4 inch male connection in a single fitting

Compatibility

Designed as an OEM-style replacement or new-install fitting for Schedule 40 threaded piping systems requiring a 1-1/4 x 1/4 inch MNPT x FNPT reducing bushing rated to 150 psi.

Installation Notes

A licensed plumber or qualified pipefitter should install this fitting in accordance with applicable plumbing codes such as the IPC. Depressurize and drain the piping system fully before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before making up the joint. Do not exceed the 150 psi pressure rating or use this fitting in services outside its material compatibility range.
