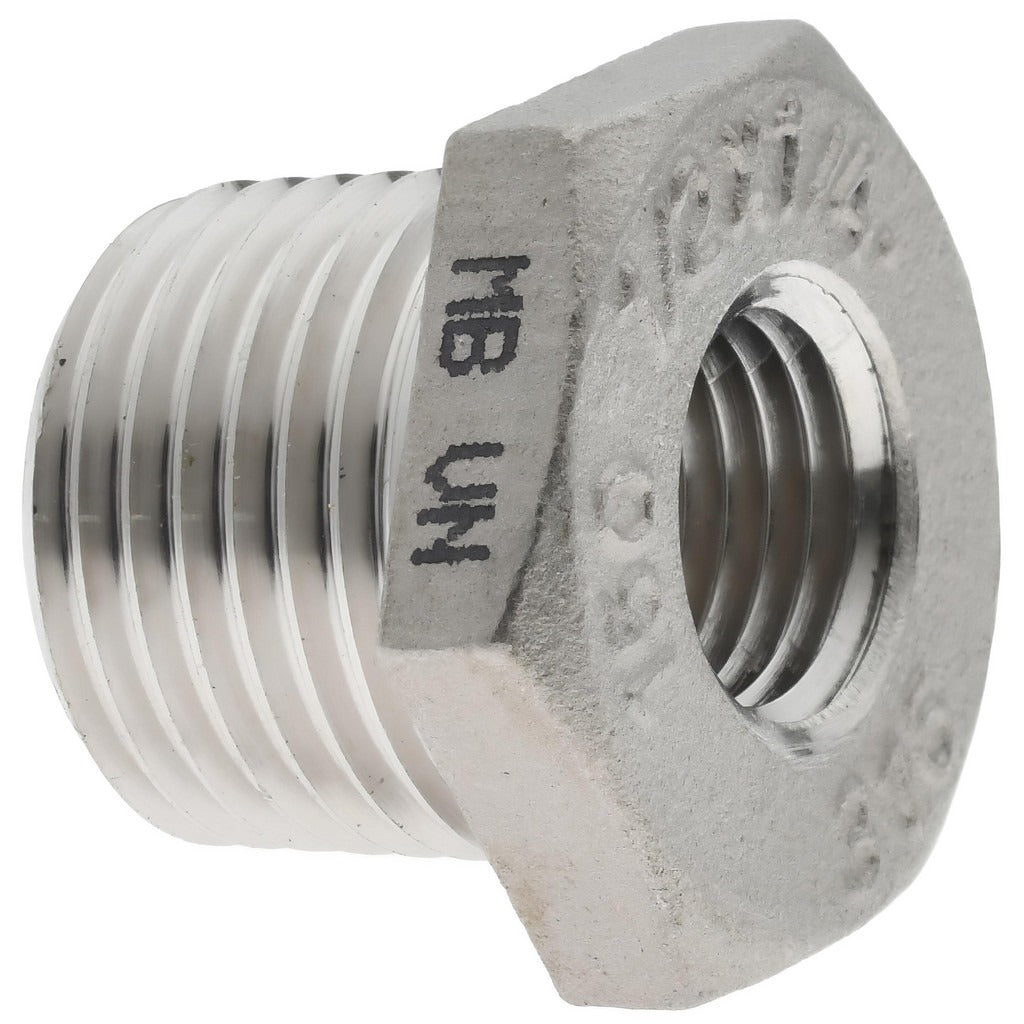

Value Collection 6HB1/2*1/4 Pipe Bushing 316 Ss

Product Description

The VALUE COLLECTION 6HB1/2*1/4 is a threaded pipe bushing designed to reduce a 1/2-inch male NPT connection down to a 1/4-inch female NPT port. Constructed from 316 stainless steel, this Schedule 40 fitting offers solid corrosion resistance in wet, chemical-exposed, or marine plumbing environments. It is rated to 150 psi and uses standard MNPT x FNPT threaded engagement, making it a straightforward mechanical connection without the need for soldering or specialized tooling. Plumbers, pipefitters, and mechanical contractors install this type of bushing when adapting between pipe sizes within threaded piping systems.

This bushing is suited for residential and light commercial plumbing, process piping, and fluid-handling systems where a reduction from 1/2-inch to 1/4-inch threaded connections is required. The 316 stainless steel construction makes it appropriate for applications involving mildly corrosive media, saltwater exposure, or environments where 304 stainless is insufficient. Typical installations include instrumentation taps, gauge ports, drain connections, and compressed-air or water distribution manifolds.

Key Features

• 316 stainless steel construction for enhanced corrosion resistance over standard 304 grade
• Schedule 40 wall thickness rated to 150 psi working pressure
• MNPT x FNPT threaded ends for tool-only, solder-free installation
• Reduces 1/2-inch male NPT to 1/4-inch female NPT in a single fitting
• Compact form factor suitable for tight manifold and panel installations

Compatibility

Designed as an OEM-style replacement or new-install threaded pipe bushing for Schedule 40 NPT piping systems requiring a 1/2-inch to 1/4-inch reduction in stainless steel.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working with threaded piping systems. Shut off and depressurize the line before disassembly or fitting installation. Apply an appropriate thread sealant or PTFE tape to the male threads per the applicable plumbing code before engagement. Do not overtighten stainless steel threaded fittings, as galling can occur; hand-snug then wrench-tighten to a firm stop using pipe wrenches or strap wrenches appropriate for the pipe material.
