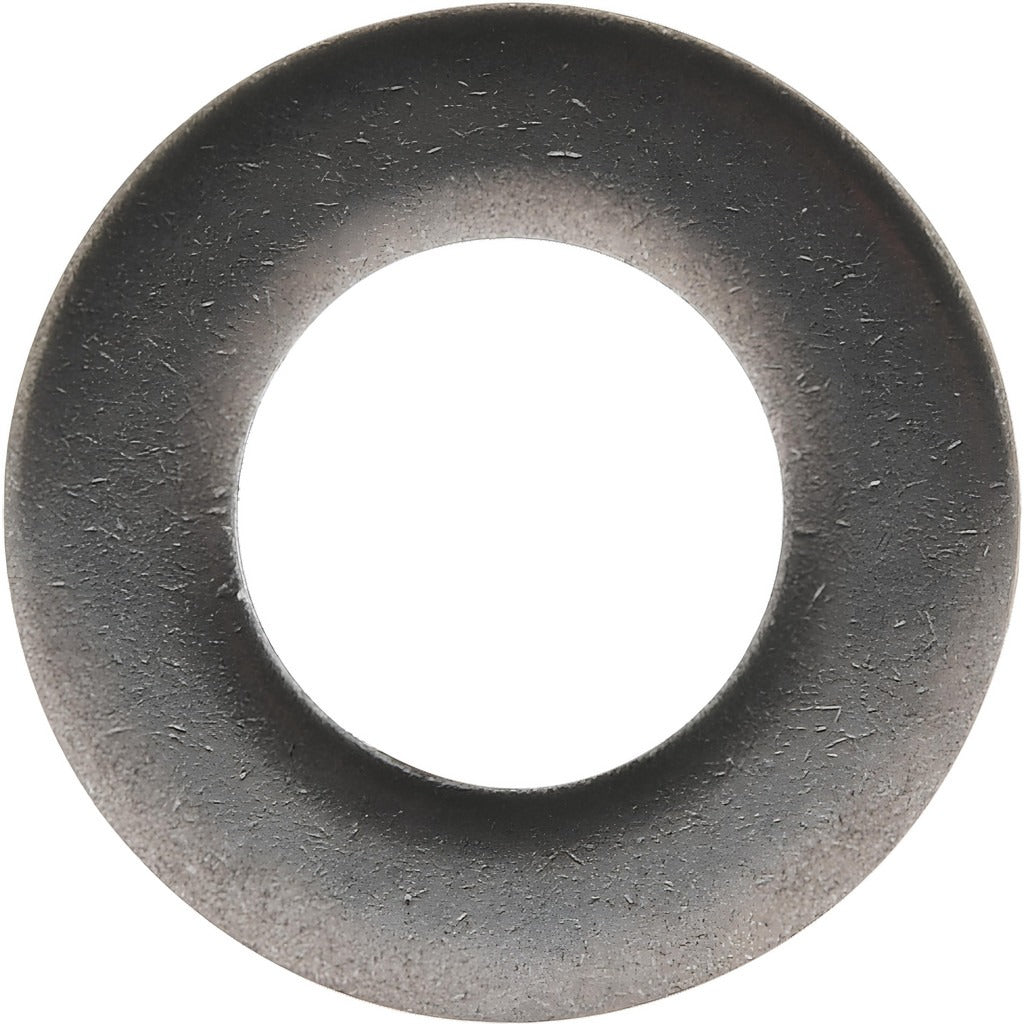

Value Collection 68025204-100 M10 Flat Washer 18-8 Ss Pack 100

Product Description

The VALUE COLLECTION 68025204-100 is an M10 standard flat washer manufactured from Grade 18-8 stainless steel. It measures 10.5mm inside diameter, 20mm outside diameter, and 2mm thick. These washers distribute clamping load across a fastener bearing surface, protecting the mating material from damage and reducing the risk of fastener pull-through. They conform to DIN 125 and ISO 7089/7090 fastener standards. With a hardness rating of 140 HV, the 18-8 stainless steel construction provides corrosion resistance suitable for both indoor and outdoor installations. Sold in a minimum order quantity of 100 pieces per order.

These washers are used across a wide range of trade applications including HVAC equipment mounting, plumbing fixture installation, electrical panel assembly, and general mechanical fastening. They are suitable for use wherever an M10 fastener requires a standard flat washer per metric DIN or ISO specifications. The metric sizing and stainless steel material make them appropriate for both light commercial and residential construction, as well as light industrial applications where corrosion resistance is a requirement.

Key Features

• Grade 18-8 stainless steel construction provides corrosion resistance for indoor and outdoor use
• Conforms to DIN 125 and ISO 7089/7090 fastener standards for consistent dimensional accuracy
• 10.5mm ID sized for M10 fasteners with a 20mm OD for broad load distribution
• 2mm thickness provides rigid bearing surface support under clamping load
• 140 HV hardness rating for reliable performance under standard fastening loads
• Sold in multiples of 100 pieces, suited for job-lot stocking and service van inventory

Compatibility

Designed for use with M10 threaded fasteners requiring a standard flat washer per DIN 125 or ISO 7089/7090 metric specifications.

Installation Notes

Installation is performed by the applicable trade mechanic, maintenance technician, or service professional using standard hand tools. Always ensure the fastener, washer, and mating material are compatible in material type to avoid galvanic corrosion concerns. Place the washer flat against the bearing surface before applying torque. Follow project specifications or applicable codes for fastener torque requirements, as these are application-dependent and not defined by the washer alone.
