Value Collection 67550035 1/8 Npt Needle Valve 6000 Psi

Product Description

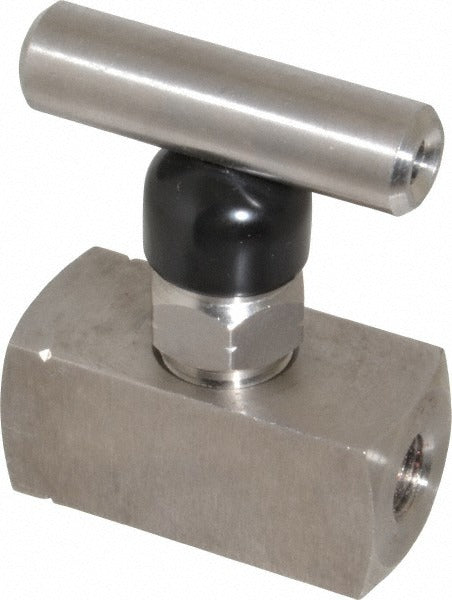

The VALUE COLLECTION 67550035 is a miniature straight needle valve designed for precise flow control in high-pressure fluid and gas systems. Built with a 316 stainless steel body, this valve handles working pressures up to 6,000 psi and operating temperatures from 0 degrees F to 200 degrees F. The T-handle design allows controlled, repeatable shutoff without tools. At 1.91 inches overall length, it fits in tight installations where space is limited. This type of valve is typically installed by licensed plumbers, pipefitters, or instrumentation technicians working on compressed air, hydraulic, or process fluid lines.

The 67550035 is suited for residential and light commercial applications where a compact, corrosion-resistant shutoff or throttling point is needed. Its 1/8 inch NPT end connections make it compatible with standard threaded pipe and instrument fittings commonly found in pneumatic controls, test and measurement lines, and small-bore process piping. The 316 stainless steel construction makes it appropriate for mildly corrosive or sanitary environments where carbon steel fittings would be unsuitable.

Key Features

• 316 stainless steel body for corrosion resistance in demanding service environments
• Rated to 6,000 psi maximum working pressure for high-pressure system use
• T-handle allows tool-free manual operation with positive shutoff
• Miniature straight-body configuration at 1.91 inches OAL for compact installations
• 1/8 inch NPT threaded connections on both ends for standard pipe fitment
• Operating temperature range from 0 degrees F to 200 degrees F

Compatibility

Designed as an OEM-style replacement or service valve for small-bore pneumatic, hydraulic, and instrument piping systems using 1/8 inch NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or ANSI B31 piping standards. Depressurize and isolate the line completely before removing the existing valve or fitting. Apply appropriate thread sealant or PTFE tape to NPT threads before assembly, and do not overtighten, as stainless steel threads are susceptible to galling. Verify pressure rating compatibility with the system before returning the line to service.
