Value Collection 67550003 Needle Valve 1/8 Inch Npt 6000 Psi

Product Description

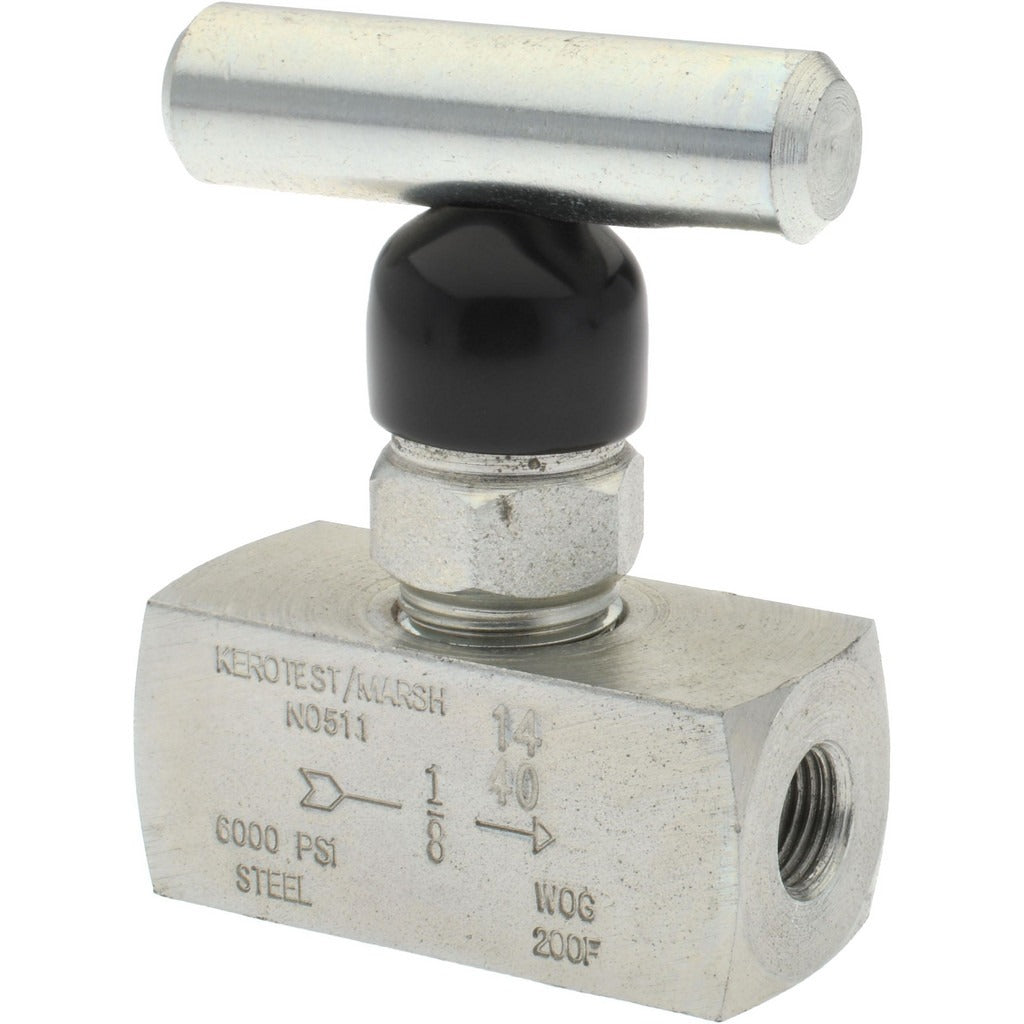

The VALUE COLLECTION 67550003 is a miniature straight needle valve designed for precise flow control in high-pressure fluid and gas systems. Built with an alloy body machined from 1045 material grade steel, this valve handles pressures up to 6,000 psi and operating temperatures from 0 degrees F to 200 degrees F. The T-handle design allows for manual adjustment without tools, making it well suited for instrumentation lines, hydraulic test equipment, and other compact installations where fine flow metering is required. At 1.91 inches overall length, this valve fits in tight spaces where a full-size valve would not. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This needle valve is intended for use in residential and light commercial systems requiring a reliable shutoff or throttling point on a 1/8 inch NPT-threaded line. Common applications include compressed air instrumentation, hydraulic test panels, refrigeration service manifolds, and gauge isolation. The 1/8 inch NPT end connection makes it compatible with standard pipe thread fittings found throughout plumbing and HVAC service applications. The straight-through body design keeps pressure drop low through the valve when fully open.

Key Features

• Miniature straight body at 1.91 inches overall length for compact installations
• 6,000 psi maximum working pressure for demanding high-pressure service
• 1/8 inch NPT end connections for compatibility with standard pipe thread fittings
• T-handle provides tool-free manual flow adjustment
• Alloy body with 1045 material grade construction for durability
• Rated for service from 0 degrees F to 200 degrees F

Compatibility

Designed as an OEM-style replacement or service addition for any system using 1/8 inch NPT-threaded connections requiring a miniature needle valve with high-pressure capability.

Installation Notes

Installation is typically performed by a licensed pipefitter, plumber, or instrumentation technician. Depressurize and isolate the line completely before removing or installing any valve. Apply appropriate thread sealant or PTFE tape to NPT threads per the system fluid compatibility requirements and applicable plumbing or mechanical codes. Do not exceed the rated 6,000 psi working pressure or the 200 degrees F maximum temperature.
