Value Collection 67121260 Galvanized Duct End Register Boot

Product Description

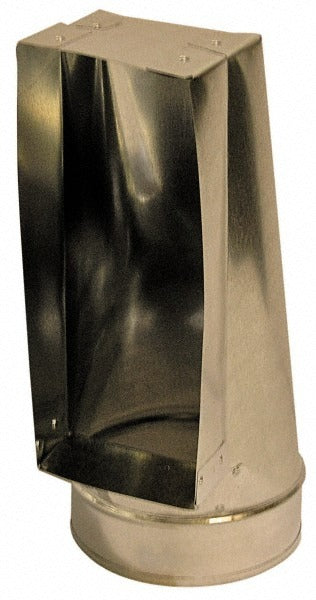

The VALUE COLLECTION 67121260 is a galvanized steel end register boot designed to connect round duct to a floor, wall, or ceiling register at the termination point of a duct run. The fitting accepts a 6-inch inside diameter round duct and transitions to a 2-1/4-inch by 12-inch rectangular register opening, which is one of the most common residential register face sizes. The galvanized steel construction resists corrosion in both heating and cooling applications. HVAC installers and sheet metal contractors use this fitting on forced-air systems where a straight-end transition from round duct to a floor or sidewall register is required.

This end register boot is suited for residential and light commercial forced-air HVAC installations. It fits standard 6-inch round branch duct and terminates at a 2-1/4-inch by 12-inch register face opening. Typical applications include floor register drops and low-sidewall register connections in supply-air duct systems. The fitting works with standard galvanized sheet metal ductwork and mates to common 2-1/4-inch by 12-inch register grilles. It ships as a single unit and is appropriate for new construction and retrofit duct runs alike.

Key Features

• 6-inch inside diameter round duct inlet for direct connection to 6-inch round branch duct
• 2-1/4-inch by 12-inch rectangular outlet matches standard residential register face dimensions
• Galvanized steel construction provides corrosion resistance for long service life
• Standard-gauge sheet metal suitable for residential and light commercial supply-air applications
• Overall length of 12 inches and overall height of 14.75 inches for straightforward rough-in planning

Compatibility

Designed as an OEM-style replacement and new-construction fitting for residential and light commercial forced-air supply duct systems using 6-inch round branch duct terminating at a 2-1/4-inch by 12-inch register opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Power down the air-handling unit and verify the system is not pressurized before making duct connections. Secure the boot to the round duct with sheet metal screws and seal all joints with UL 181-rated mastic or foil tape per local mechanical code requirements. Ensure the rectangular outlet is flush with the finished floor or wall surface before securing the register grille.
