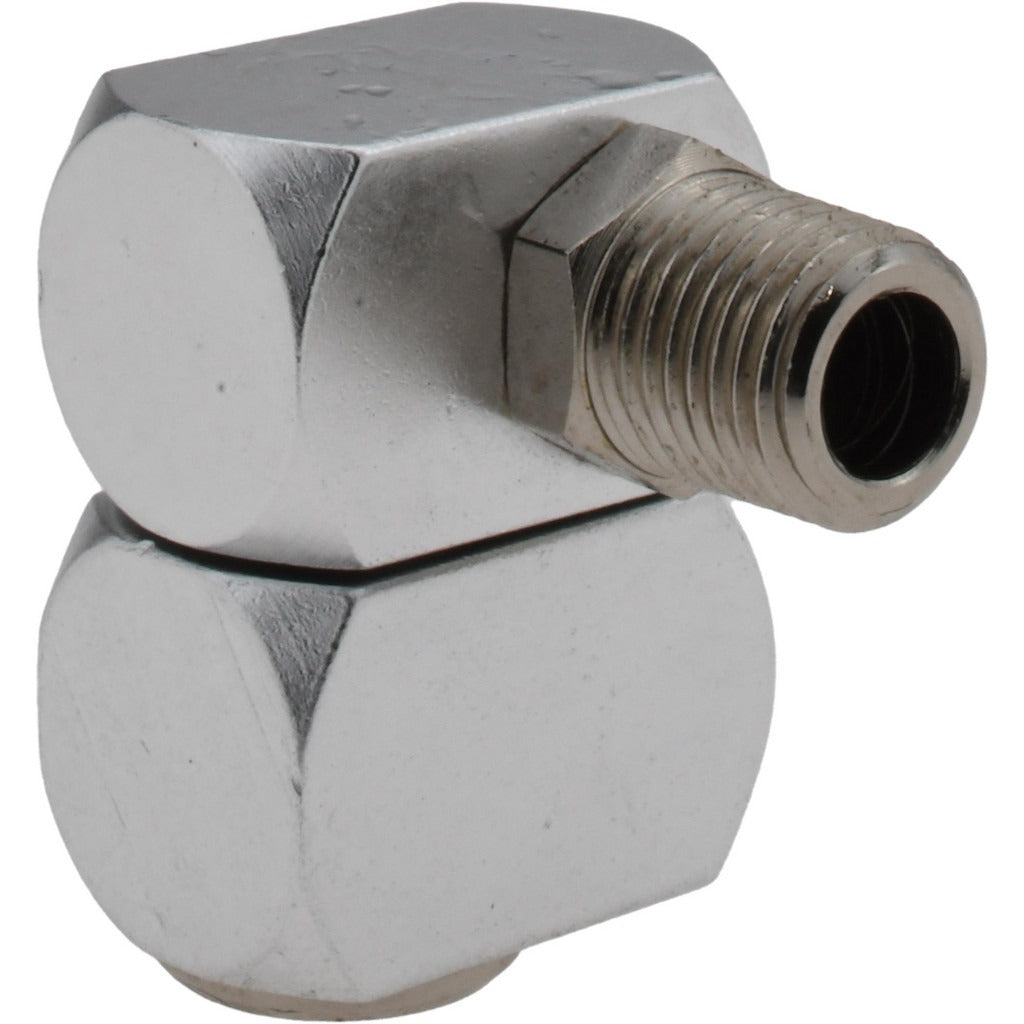

Value Collection 6502022522 Pneumatic Swivel Fitting

Product Description

The VALUE COLLECTION 6502022522 is an aluminum pneumatic swivel fitting designed for use in compressed air plumbing and fluid transfer lines. It features a 1/4 inch male x female NPT thread configuration that allows connected hoses or tubing to rotate freely without twisting or kinking the line. The body diameter measures 1/4 inch, matching a common hose inside diameter of 1/4 inch. The aluminum construction keeps weight low while providing adequate corrosion resistance for general shop air and pneumatic tool applications. This fitting is typically installed by plumbers, pipefitters, and mechanical contractors working on compressed air distribution systems.

This swivel fitting is suited for light-duty to medium-duty pneumatic systems in residential shops, commercial facilities, and industrial maintenance environments. It is commonly used at the connection point between a stationary air supply line and a hose or tool that requires rotational freedom during operation. The 1/4 inch NPT thread size is one of the most widely used thread standards in North American pneumatic and fluid systems, making this fitting broadly applicable across a wide range of equipment configurations.

Key Features

• Swivel design allows full rotation at the connection point, preventing hose twist and reducing wear
• 1/4 inch male x female NPT threads for compatibility with standard North American pneumatic fittings
• 1/4 inch body diameter matches 1/4 inch inside diameter hose
• Aluminum construction reduces weight and provides general corrosion resistance
• Compact form factor suitable for tight installation spaces

Compatibility

Designed as a standard replacement or add-on swivel fitting for pneumatic systems using 1/4 inch NPT threaded connections and 1/4 inch inside diameter hose.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic systems technician. Depressurize and lock out the compressed air supply before removing or installing any fitting. Apply thread sealant tape or liquid thread sealant to the male NPT threads before assembly, and hand-tighten before using a wrench to seat the fitting. Do not overtighten aluminum fittings, as the threads can be damaged if excessive torque is applied.
