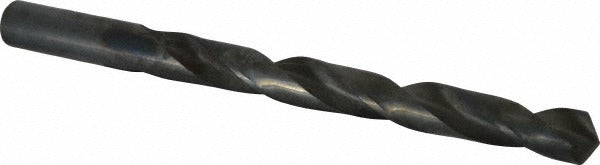

Value Collection 63323620 Taper Length Drill Bit 15/16 in Hss

Product Description

The VALUE COLLECTION 63323620 is a taper length drill bit designed for professional metalworking, fabrication, and general trade applications requiring greater reach than a jobber-length bit. Built from high speed steel (HSS) with a black oxide coating, this bit resists heat buildup and light corrosion during extended drilling cycles. The 15/16 inch diameter, 118-degree standard point angle, and spiral flute geometry produce clean, consistent holes in steel, cast iron, aluminum, and similar materials. The straight cylindrical shank seats securely in standard drill chucks. Licensed tradespeople and shop machinists will find this bit suited to structural, mechanical, and fixture work where depth clearance matters.

This taper length drill bit is intended for use in drill presses, lathes with drill chuck attachments, and heavy-duty hand drills across residential and commercial job sites, fabrication shops, and maintenance environments. The 9-inch flute length and 12-inch overall length give this bit the reach needed for deep-hole drilling in thick plate, tubing, and structural members where a standard jobber bit falls short. No coolant-through capability means this bit is best paired with cutting fluid applied externally when drilling ferrous metals at sustained depths.

Key Features

• 15/16 inch (0.9375 inch) diameter for large-hole drilling without a pilot bore in many applications
• HSS construction withstands the heat generated during high-speed or continuous drilling
• Black oxide coating reduces friction and provides moderate corrosion resistance
• 118-degree standard point angle with web-thinned, tapered web configuration for easier penetration and reduced walking
• 9-inch spiral flute length maximizes chip evacuation in deep-hole drilling scenarios
• Straight cylindrical shank fits standard three-jaw drill chucks without adapters

Compatibility

Designed as an OEM-style replacement or direct-use taper length drill bit compatible with any drill press or power tool equipped with a standard drill chuck sized to accept a straight cylindrical shank at 15/16 inch diameter.

Installation Notes

This bit is installed by a machinist or qualified tradesperson using a drill press, milling machine, or heavy-duty drill with a properly sized chuck. Secure the straight shank fully in the chuck jaws and verify concentricity before drilling. Power down and de-energize the machine before changing bits or adjusting workpiece fixturing. Apply cutting fluid externally when drilling ferrous metals to extend bit life and reduce heat distortion.
