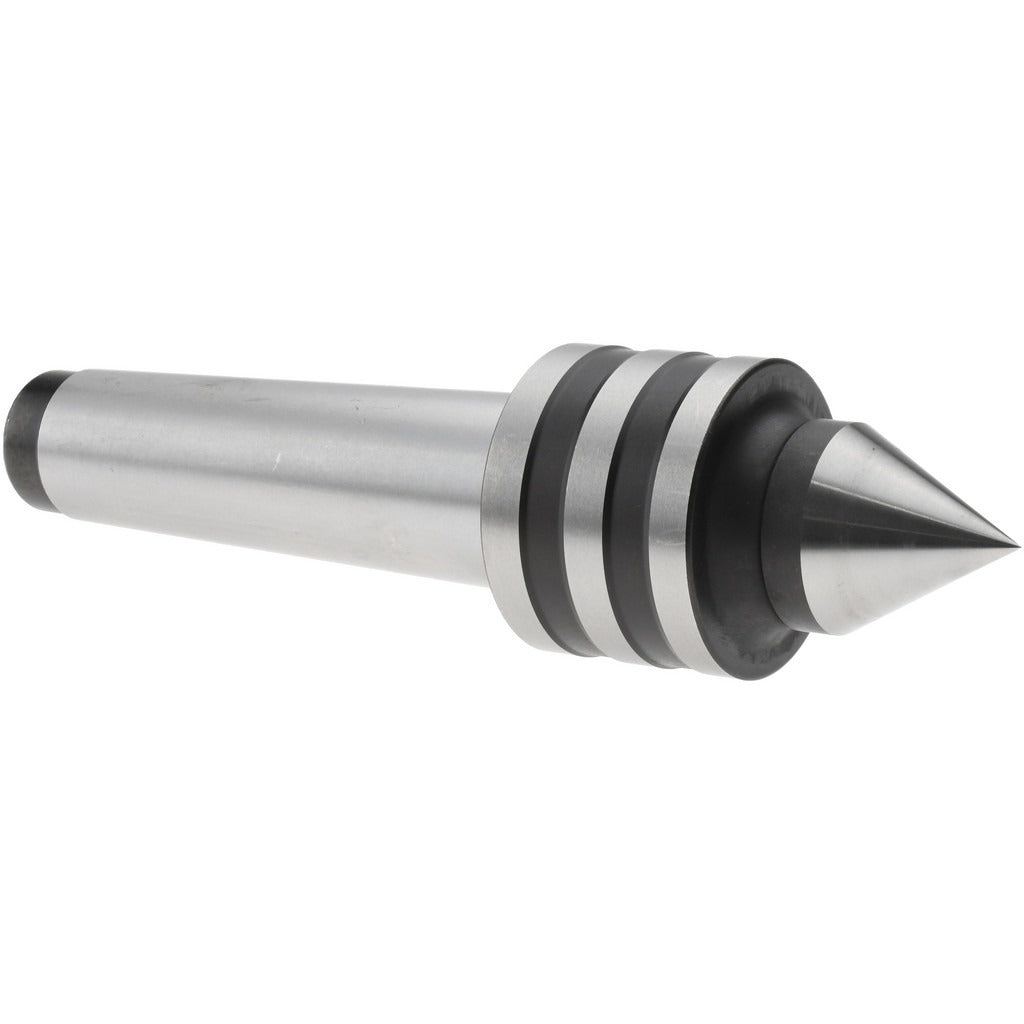

Value Collection 625.35506795 Live Center MT4 Taper Shank

Product Description

The VALUE COLLECTION 625.35506795 is a taper shank live center designed for use in metalworking lathes and turning centers. Fitted with an MT4 Morse taper shank and a double bearing assembly, it supports rotating workpieces at the tailstock end during turning operations. The head diameter measures 1-29/32 inches with a standard 60-degree included angle point, and the unit is rated for a maximum workpiece weight of 4,800 pounds. Point diameter is 1.2188 inches with a point length of 1.6094 inches. Runout accuracy is held to 0.0002 inches, making it suitable for precision turning applications. The center weighs approximately 4 pounds.

This live center is used in manual and CNC lathe setups where the workpiece must be supported between centers during turning, threading, or facing operations. The MT4 taper fits a wide range of mid-to-large capacity engine lathes and turning centers. It is appropriate for production and job shop environments handling heavy or long shaft-type workpieces that require steady tailstock support.

Key Features

• MT4 Morse taper shank for secure tailstock mounting
• Double bearing design supports continuous workpiece rotation under load
• Rated load capacity of 1,051 pounds with a maximum workpiece weight of 4,800 pounds
• Standard 60-degree included angle point suits common center-drilled workpieces
• Runout accuracy of 0.0002 inches for precision turning applications
• Steel construction for durability in production environments

Compatibility

Designed as an OEM-style replacement or direct-fit live center for lathes and turning centers with an MT4 Morse taper tailstock bore.

Installation Notes

Installation is performed by a qualified machinist or lathe operator. Power down and lock out the lathe before inserting or removing the center from the tailstock. Clean the taper bore and shank with a lint-free cloth before seating to ensure full taper contact and accurate alignment. Never use excessive force to seat or remove the taper; use the tailstock ejector mechanism as intended.
