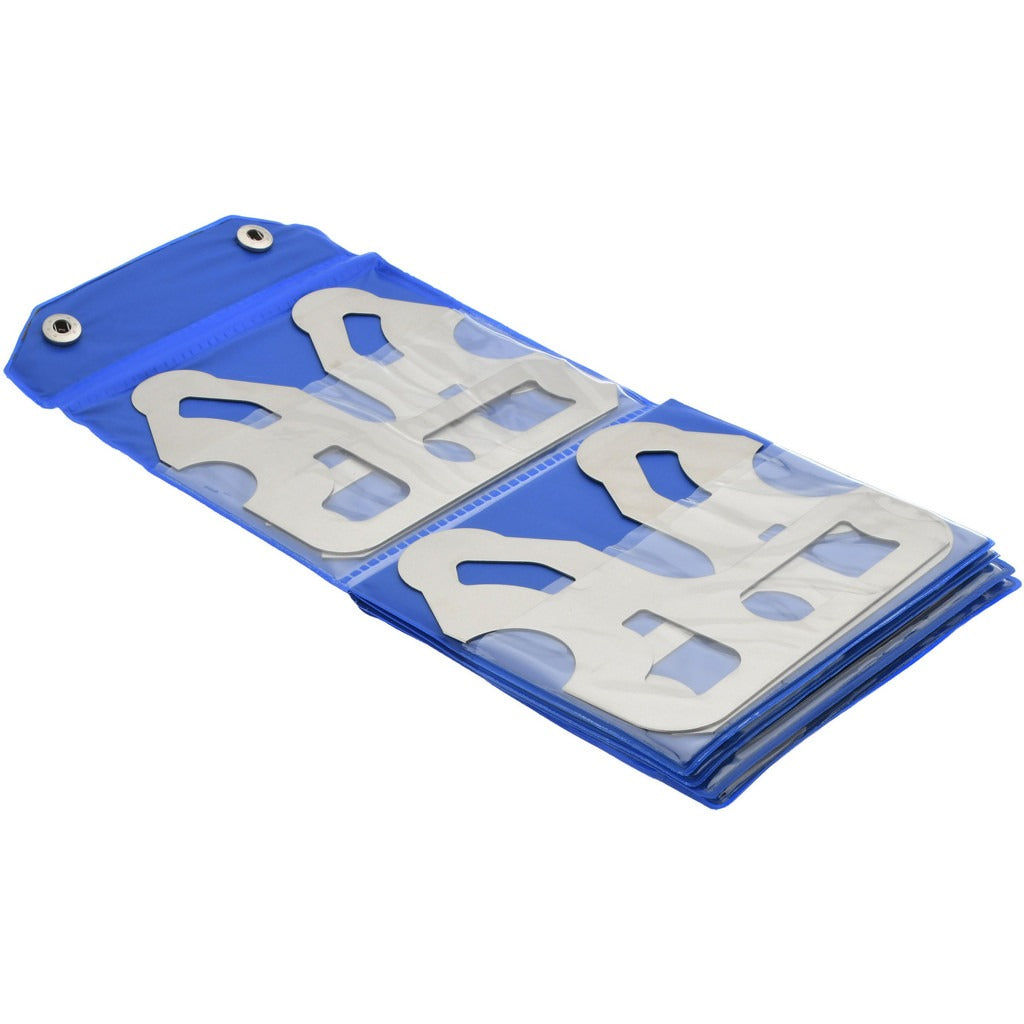

Value Collection 615-4010 Radius Gage Set 10 Piece Steel

Product Description

The VALUE COLLECTION 615-4010 is a 10-piece steel radius gage set used to measure and verify concave and convex radii on machined parts, castings, and fabricated components. Each blade is manufactured from steel with a satin chrome finish that reduces glare and resists corrosion during regular shop use. The set covers a measurement range of 0.55 to 1 inch in 0.05-inch increments, providing ten distinct radius profiles in a single kit. Machinists, toolmakers, and quality-control technicians reach for this type of set when checking fillet radii, corner breaks, and profile geometry on workpieces before and after machining operations.

This radius gage set is suited for use in machine shops, fabrication facilities, and inspection departments handling light to medium precision work. The 0.05-inch graduation spacing makes it practical for general-tolerance radius checks across a broad range of parts. All ten blades are included with no separate holder, so technicians typically store them in a bench drawer or dedicated toolbox slot. The satin chrome finish is appropriate for standard shop environments where parts are handled frequently.

Key Features

• 10 individual radius blades covering 0.55 to 1 inch in 0.05-inch steps
• Steel construction provides durability for repeated shop use
• Satin chrome finish reduces glare and offers corrosion resistance
• 0.05-inch graduation allows consistent, repeatable radius verification
• Compact set weight of 0.1 pounds keeps the kit easy to store and transport

Compatibility

Designed as a general-purpose radius gage set suitable for verifying external and internal radii on machined, cast, or fabricated parts across standard shop and inspection applications.

Installation Notes

No installation is required for this hand tool. Technicians should ensure the workpiece surface is clean and free of burrs before seating a blade against the radius to get an accurate fit check. Store blades in a dry location to maintain the finish and prevent rust at the edges. No special tools or codes apply to the use of radius gages.
