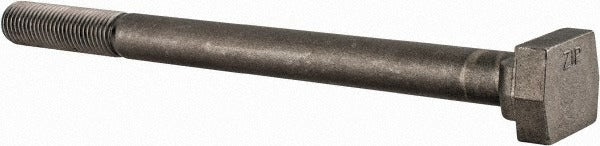

Value Collection 60029 T-slot Bolt 7/8-9 Steel Uncoated

Product Description

The VALUE COLLECTION 60029 is a steel T-slot bolt designed for secure fastening in T-slot tracks and fixture tables commonly found in machining, fabrication, and industrial workholding setups. It features a 7/8-9 UNC thread with a 3-inch thread length and fits a 7/8-inch slot width. The head profile measures 1-1/2 inches wide and 9/16 inches tall, with a 12-inch length under the head to accommodate deep slot applications. Manufactured from C-1045 grade steel with an uncoated finish, this bolt is suited for high-load clamping applications where surface coating is not required. Installation is typically performed by machinists and fixture builders working to standard inch tolerances.

This T-slot bolt is used in machine tool tables, milling fixtures, jig plates, and structural framing systems that use standard T-slot profiles. Its 7/8-inch slot width and Class 3 thread fit make it appropriate for precision workholding setups in job shops and production environments. The uncoated steel construction is compatible with standard clamping hardware, strap clamps, and step blocks used in manual and CNC machining operations. One bolt is included per package with no minimum order beyond a single unit.

Key Features

• 7/8-9 UNC thread with Class 3 thread fit for precise engagement
• 3-inch thread length accommodates standard clamping stack heights
• 12-inch length under head for use in deep T-slot channel applications
• 7/8-inch slot width fits standard machine tool table T-slots
• C-1045 grade steel construction for high tensile and shear load capacity
• Uncoated finish suitable for direct use without coating interference

Compatibility

Designed as a standard inch-series T-slot bolt for machine tool tables, fixture plates, and structural framing systems with a 7/8-inch T-slot width and 7/8-9 UNC threaded clamping hardware.

Installation Notes

Installation is performed by machinists or tooling specialists. Always verify that the T-slot channel width and depth match the bolt head dimensions before seating the bolt. Use appropriate torque values specified by the fixture or machine table manufacturer. Inspect threads and slot for damage before applying clamping load to avoid galling or stripping the C-1045 steel threads.
