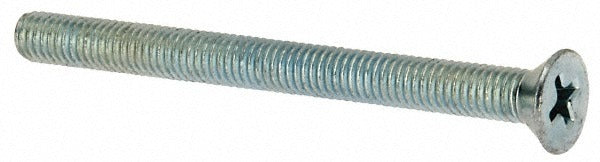

Value Collection 586468PS 10-32 X 2-1/4 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION 586468PS is a 10-32 unified fine thread machine screw with a flat head and Phillips drive, manufactured from steel with a zinc finish. At 2-1/4 inches in overall length, this screw seats flush with the mating surface when installed in a countersunk hole. It meets ASME B18.6.3 and SAE J82 standards, confirming dimensional accuracy and material grade compliance. The zinc finish provides a baseline level of corrosion resistance for general indoor and light-duty applications. These fasteners are sold in multiples of 100 and are suited for mechanical assembly, electrical panel work, and equipment fabrication tasks where a flush-mount fastener is required.

This screw is a standard 10-32 fine thread fastener used across a wide range of trade and industrial applications, including HVAC equipment assembly, electrical enclosures, control panel fabrication, and general mechanical maintenance. The flat head profile makes it appropriate wherever a low-profile, countersunk installation is needed. The Phillips drive is compatible with common screwdrivers and power drivers found in any service tech toolkit.

Key Features

• 10-32 unified fine thread for secure engagement in tapped steel and aluminum substrates
• Flat head profile allows flush seating in countersunk applications
• Phillips drive compatible with standard and power hand tools
• Steel construction with zinc finish for general-purpose corrosion resistance
• Meets ASME B18.6.3 and SAE J82 standards for dimensional and grade compliance
• Overall length of 2-1/4 inches with no washer; length under head equals overall length

Compatibility

Designed as a general-purpose 10-32 fine thread machine screw suitable for use in any application requiring an ASME B18.6.3 compliant flat head Phillips fastener in a countersunk or flush-mount configuration.

Installation Notes

Install using a Phillips screwdriver or power driver with the appropriate bit size to avoid cam-out and head damage. The mating hole should be countersunk to the correct angle to seat the flat head flush with the surface. Ensure the tapped or threaded receiving hole is clean and free of debris before installation. Follow applicable equipment manufacturer specifications for torque requirements, as none are specified for this fastener in the available product data.
