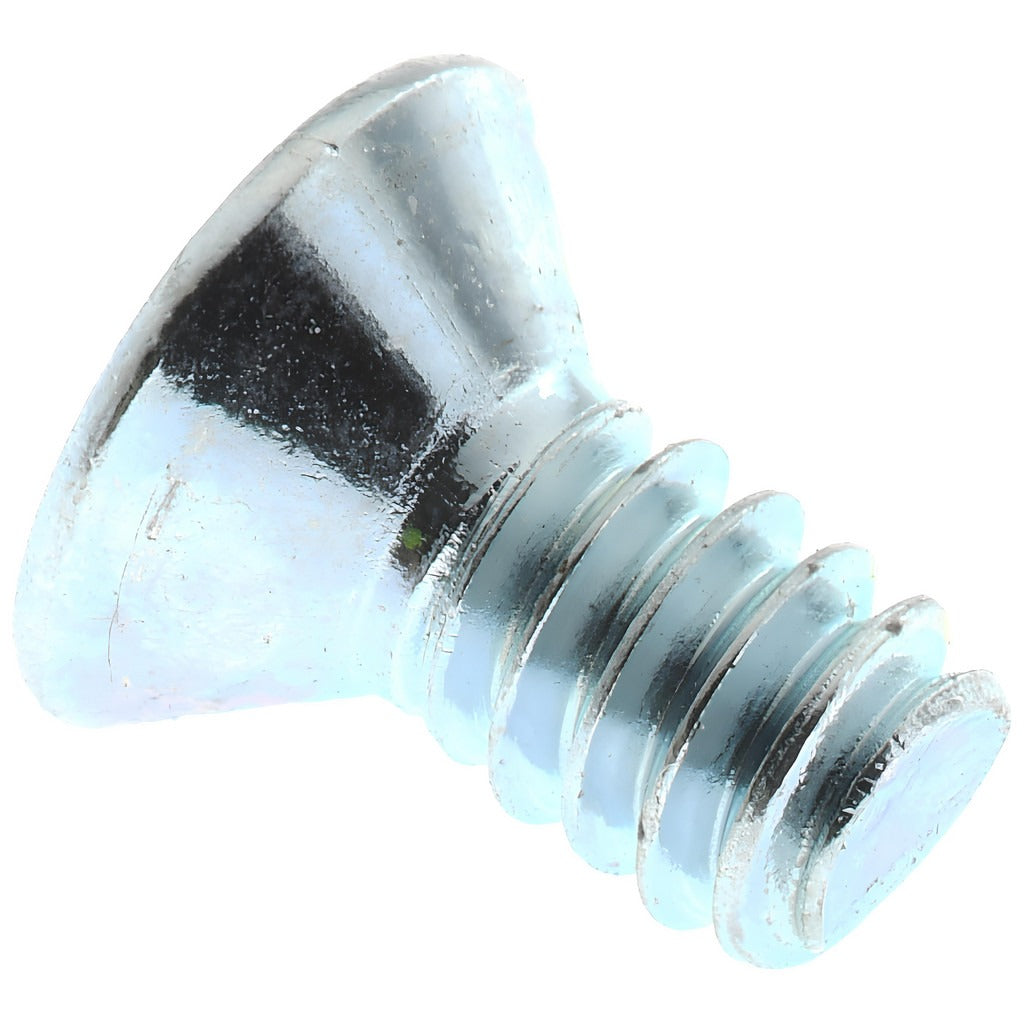

Value Collection 586411PR 10-24 X 3/8 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION 586411PR is a 10-24 x 3/8 inch flat head Phillips machine screw manufactured from steel with a zinc finish. It features an 82-degree flat head profile that sits flush with the mating surface when properly countersunk, making it suited for applications where a low-profile fastener is required. The overall length is 3/8 inch, matching the length under the head. This screw meets ASME B18.6.3 and SAE J82 standards, ensuring dimensional consistency and mechanical performance expected by trade and manufacturing professionals. Sold in multiples of 100 per order.

This fastener is used in light-duty mechanical assemblies, electrical enclosures, HVAC equipment panels, and general sheet metal or component mounting applications where a flush-seating screw is required. The zinc finish provides basic corrosion resistance suitable for indoor or protected environments. The Phillips drive is compatible with standard Phillips screwdrivers and bits in common use across electrical, HVAC, and general mechanical trade work.

Key Features

• 10-24 unified coarse thread for reliable engagement in standard tapped holes
• Flat head profile sits flush when installed in a properly countersunk hole per ASME B18.6.3
• Phillips drive compatible with standard PH2 bits and screwdrivers
• Zinc finish provides basic corrosion resistance for indoor and protected applications
• Steel construction with Grade J82 mechanical properties
• Sold in minimum order quantities of 100 for consistent jobsite stock

Compatibility

Designed as a standard inch-series machine screw for use in any application requiring a 10-24 threaded flat head Phillips fastener per ASME B18.6.3 and SAE J82 specifications.

Installation Notes

Installation is performed with a Phillips screwdriver or PH2 power bit. The mating hole must be properly countersunk to the appropriate 82-degree angle to allow the flat head to seat flush. Avoid over-torquing, which can strip the 10-24 thread or damage the Phillips recess. Use in applications consistent with the zinc finish rating — not recommended for direct outdoor exposure or high-moisture environments without additional protection.
