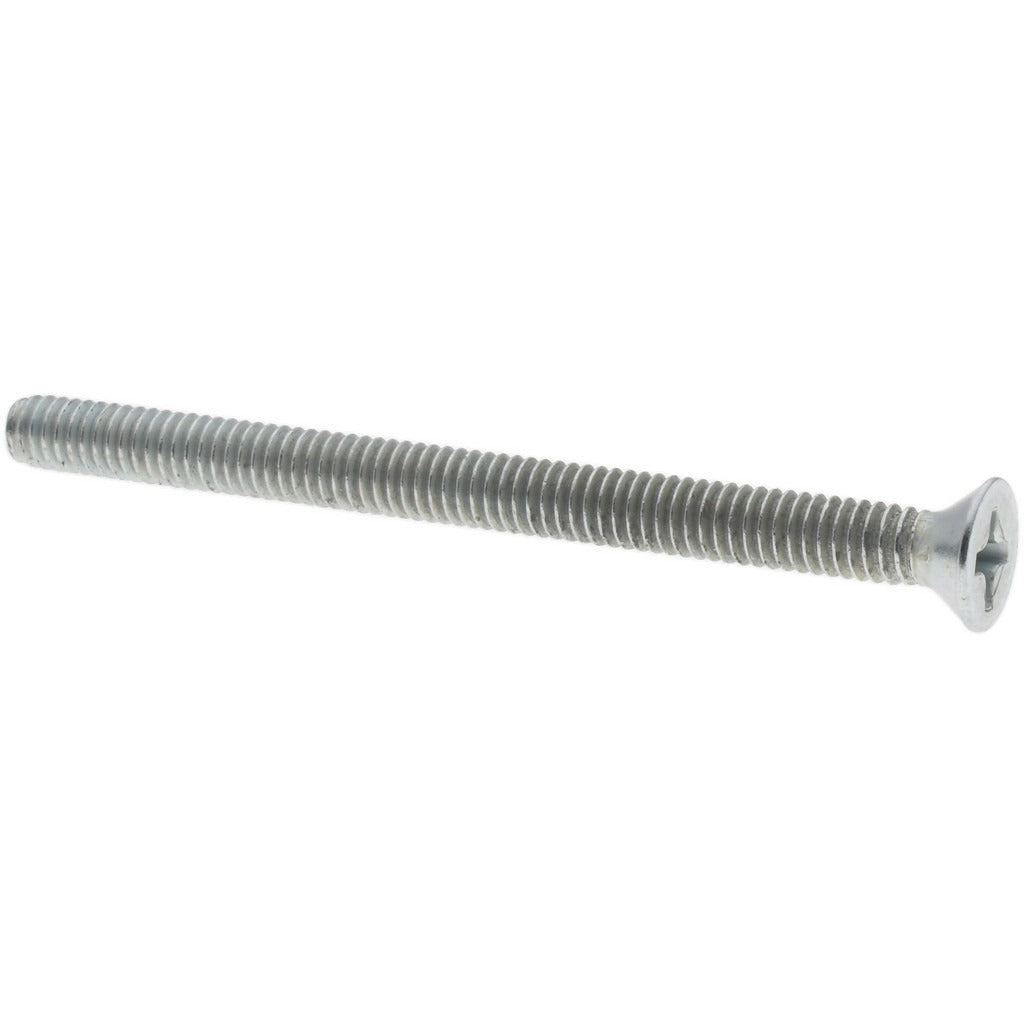

Value Collection 586364PS 8-32 X 2-1/4 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION 586364PS is a flat head Phillips drive machine screw intended for general mechanical assembly and fastening applications. Manufactured from steel with a zinc finish, this screw meets ASME B18.6.3 and SAE J82 standards, confirming dimensional and material consistency for production and maintenance use. The 8-32 thread designation indicates a number 8 diameter with 32 threads per inch, a common unified coarse-fine pitch used across a wide range of equipment and enclosure assemblies. Overall length is 2.25 inches, with the length measured from the top of the flat head to the tip. This fastener is sold in minimum order quantities of 100 pieces.

This screw is suited for use in light industrial, HVAC equipment panels, electrical enclosures, control boxes, and general sheet metal or tapped-hole assemblies where a flush or countersunk head profile is required. The flat head design allows the fastener to sit flush with or below the mating surface when installed in a countersunk hole, making it appropriate for applications where protrusion clearance is limited. Installers across HVAC, electrical, and mechanical trades commonly use this size for panel assembly, component mounting, and equipment housing fabrication.

Key Features

• 8-32 thread with 2.25-inch overall length for deep-reach countersunk fastening
• Flat head profile allows flush or below-surface installation in countersunk applications
• Phillips drive compatible with standard and power-drive screwdrivers
• Steel construction with zinc finish provides corrosion resistance for indoor service environments
• Meets ASME B18.6.3 and SAE J82 standards for dimensional conformance
• Sold in multiples of 100 for production and stocking use

Compatibility

Designed as a standard 8-32 unified thread machine screw for use in any tapped hole or threaded insert conforming to 8-32 UNC thread specifications in steel, aluminum, or plastic assemblies.

Installation Notes

Installation is performed with a Phillips screwdriver or compatible power driver bit. When used in countersunk applications, ensure the receiving material is properly countersunk to the correct angle to achieve full flush seating of the flat head. Do not overtorque, as steel screws in softer substrates such as aluminum or plastic can strip threads. For use in electrical enclosures, verify compliance with applicable NEC requirements for panel hardware before installation.
