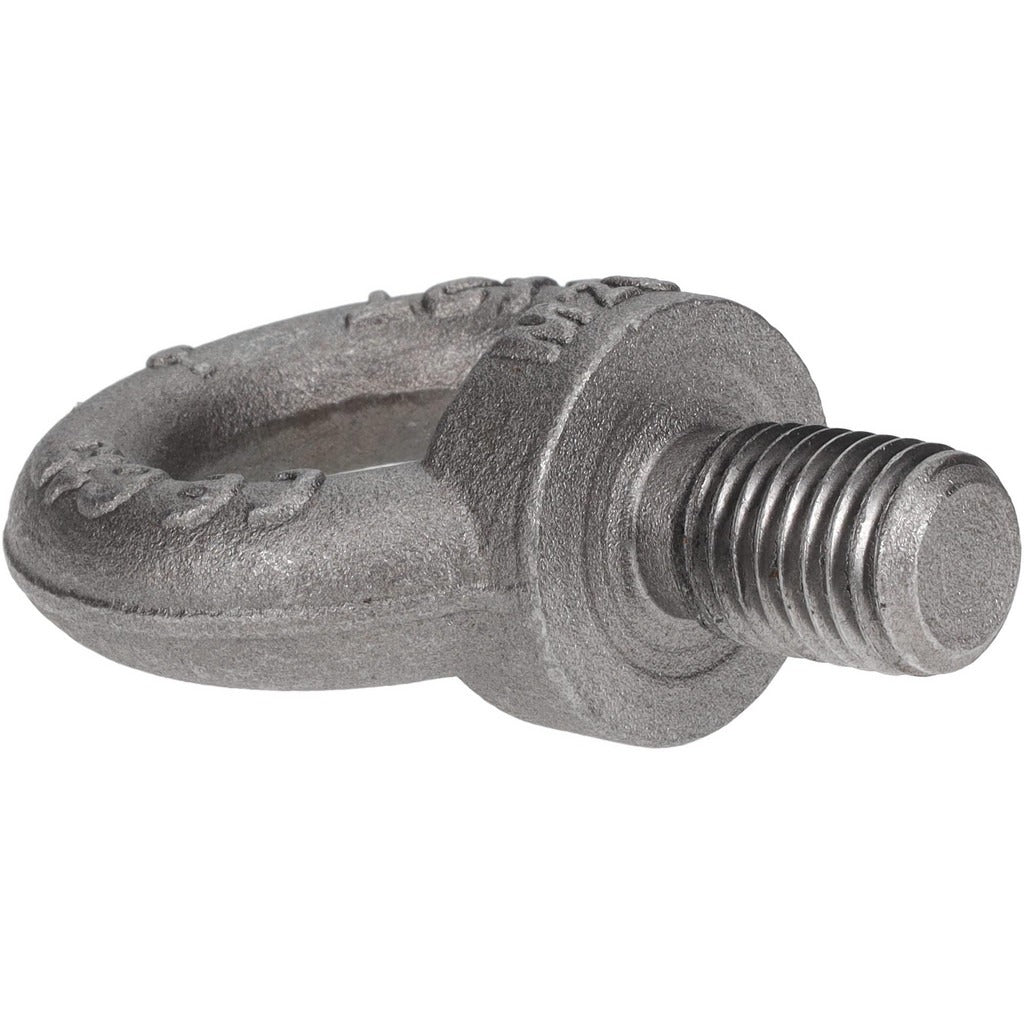

Value Collection 58020 Fixed Lifting Eye Bolt M20 X 2.50

Product Description

The VALUE COLLECTION 58020 is a fixed, shoulder-type lifting eye bolt designed for use in rigging and material-handling applications. Machined from grade 1015 steel, this fully threaded eye bolt accepts an M20 x 2.50 metric thread and provides a rated lifting capacity of 1.00 kilogram (1200 N). The shoulder base seats flush against the mounting surface to distribute load and resist lateral pull. The eye inside diameter measures 40.00 mm and the outside diameter measures 72.00 mm, making it compatible with standard hooks, shackles, and lifting slings. It is sized for single-point vertical lifts on machinery, fixtures, and fabricated assemblies.

This eye bolt is suited for industrial maintenance, millwright, and rigging work in manufacturing plants, machine shops, and maintenance facilities. The M20 x 2.50 metric thread is common on imported and European-standard machinery frames, tooling plates, and structural weldments. The shoulder design resists angular loading better than a plain-shank eye bolt, making it a preferred choice when the lift angle may deviate from vertical. Installers working to ASME B30.26 or similar rigging standards will find the shoulder construction consistent with those requirements.

Key Features

• Fixed eye design with shoulder base for improved load distribution
• Fully threaded shank — 30.00 mm thread length engages full depth in standard tapped holes
• M20 x 2.50 metric thread fits common European and imported machine frames
• Grade 1015 steel construction balances strength and machinability
• Eye inside diameter of 40.00 mm accepts standard hooks and shackle pins
• Shoulder and base diameter of 40.00 mm for positive seating against mounting surface

Compatibility

Designed as a standard metric shoulder eye bolt for use in tapped M20 x 2.50 threaded holes in machinery frames, tooling plates, and structural fabrications requiring a fixed lifting point.

Installation Notes

Installation is performed by qualified riggers or maintenance millwrights familiar with applicable rigging standards such as ASME B30.26. Before installing, confirm the tapped hole depth and thread condition accommodate the 30.00 mm fully threaded shank. Torque the eye bolt until the shoulder seats fully and squarely against the mounting surface before applying any lift load. Never exceed the rated lifting capacity and always align the lift force as close to vertical through the eye as the application allows.
