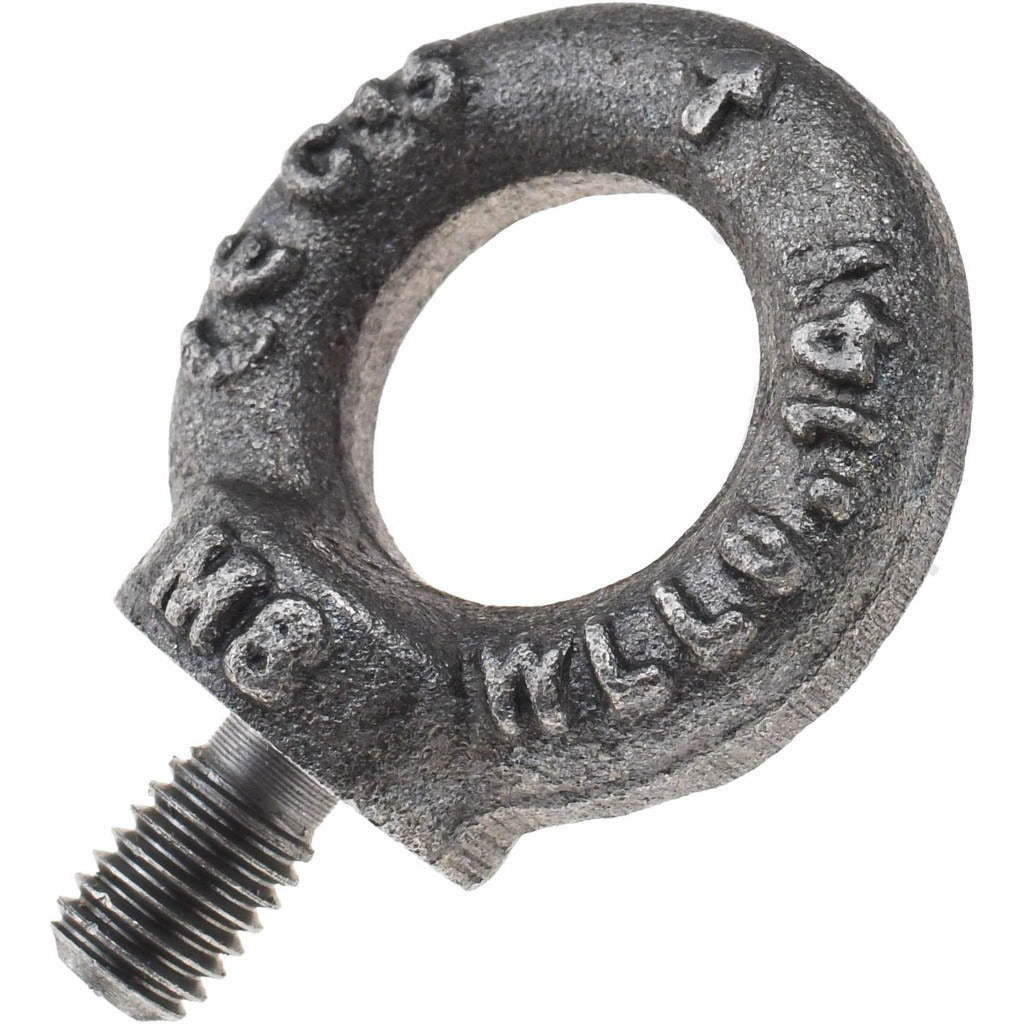

Value Collection 58008 Fixed Shoulder Eye Bolt M8 X 1.25

Product Description

The VALUE COLLECTION 58008 is a fixed lifting eye bolt with a shoulder, designed for use in rigging, lifting, and load-anchoring applications across industrial and mechanical environments. It features a fully threaded shank with an M8 x 1.25 thread profile and is manufactured from Grade 1015 steel, offering reliable tensile strength for rated load applications. The shoulder base provides a positive seating surface against the workpiece, preventing the eye from pulling through under load. This fastener is sold individually and is intended for installation by maintenance technicians, millwrights, and rigging professionals who require a metric-threaded lifting point.

This eye bolt is suited for use in light-duty lifting setups where a fixed, non-swivel anchor point is acceptable and load direction is consistent with the eye plane. The fully threaded shank engages the full depth of the threaded hole, and the shoulder base seats flush against the mating surface. Applications include machinery lifting points, fixture anchoring, and overhead rigging tie-off locations in fabrication shops, maintenance facilities, and manufacturing environments where metric fastener standards apply.

Key Features

• Fixed eye bolt with shoulder base for positive seating against mating surface
• M8 x 1.25 fully threaded shank with 13 mm thread length
• Eye inside diameter of 20 mm and eye outside diameter of 36 mm for hook or shackle attachment
• Shoulder and base diameter of 20 mm
• Grade 1015 steel construction
• Rated lifting capacity of 140 N

Compatibility

Designed for use in any application requiring a metric M8 x 1.25 threaded fixed lifting point with a shoulder-style base.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel familiar with applicable lifting safety standards. Ensure the threaded hole is clean and the shoulder base seats fully and flush before applying any load. This is a fixed eye bolt and must be loaded only in the plane of the eye — side loading or angular loading outside the eye plane can reduce capacity and cause failure. Inspect the eye bolt and mounting threads for damage before each use.
