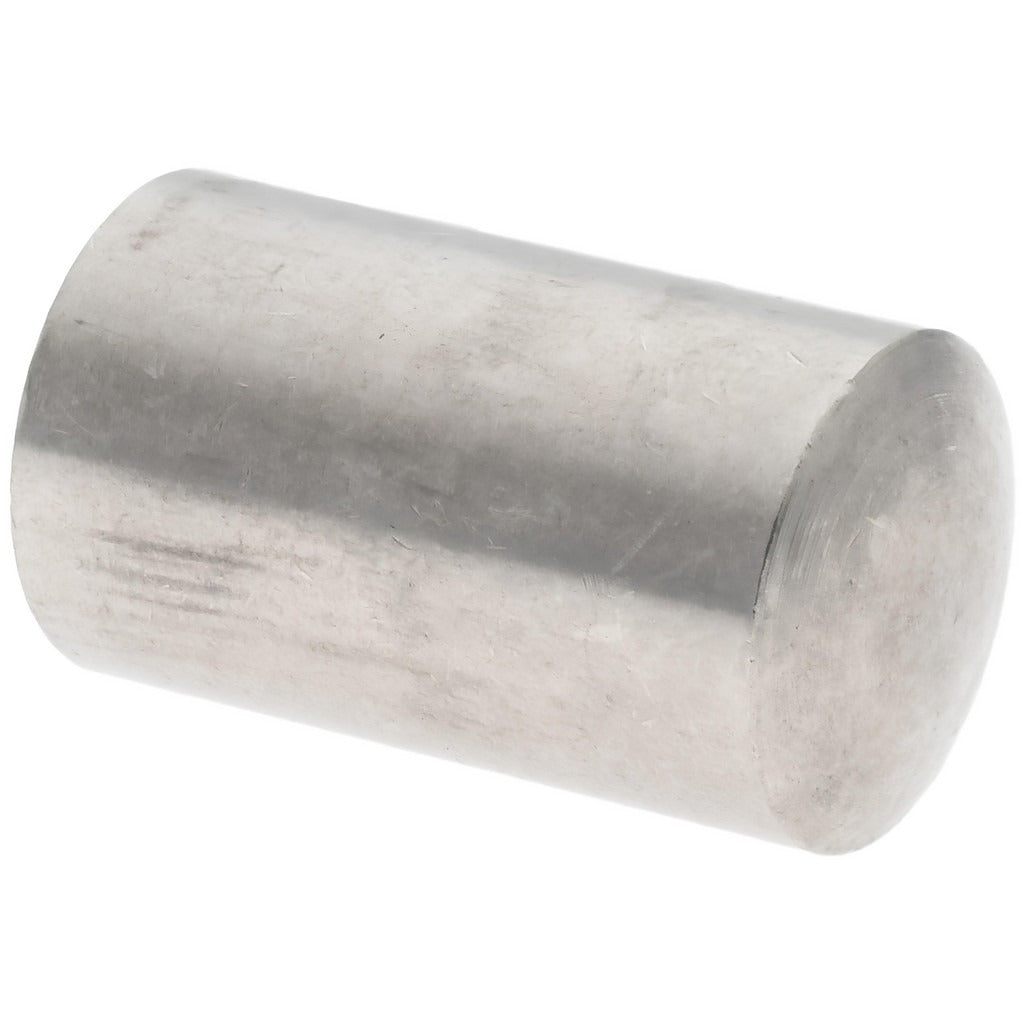

Value Collection 551597PS Dowel Pin 10x16mm SS316

Product Description

The VALUE COLLECTION 551597PS is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. At 10 mm in diameter and 16 mm in overall length, this pin conforms to DIN 7 EN ISO 2338 dimensional standards and features a rounded end type. Grade 316 stainless steel provides strong resistance to corrosion and pitting in demanding environments, making this pin well-suited for applications where moisture, chemicals, or coastal exposure are a concern. Machinists, toolmakers, and maintenance technicians install these pins to precisely locate and align machine components, fixtures, jigs, and assemblies.

This dowel pin is used in precision alignment and locating applications across general manufacturing, tooling, food processing, marine, and chemical processing environments. The pull out design allows for controlled removal from blind holes without the need for specialized extraction equipment. Conformance to DIN 7 EN ISO 2338 ensures dimensional compatibility with standard metric tooling and mating components. This pin is sold individually but requires a minimum order quantity of 10 units.

Key Features

• Grade 316 stainless steel construction for strong corrosion and chemical resistance
• Conforms to DIN 7 EN ISO 2338 for reliable dimensional interchangeability
• Rounded end type for clean, guided entry into locating holes
• Bright, uncoated finish maintains close tolerances without added coating buildup
• Pull out design allows retrieval from blind holes

Compatibility

Designed as an OEM-style replacement or standard metric dowel pin for machinery, fixtures, and assemblies requiring DIN 7 EN ISO 2338 compliant 10 mm diameter locating pins.

Installation Notes

Dowel pins are typically installed by machinists or maintenance technicians using a press fit into reamed holes sized to the appropriate tolerance class per the applicable DIN or ISO standard. Verify hole diameter and surface finish before installation to ensure proper fit and alignment. Use a pin press or arbor press rather than impact tools to avoid damaging the pin or bore. Always clean and deburr mating holes prior to assembly.
