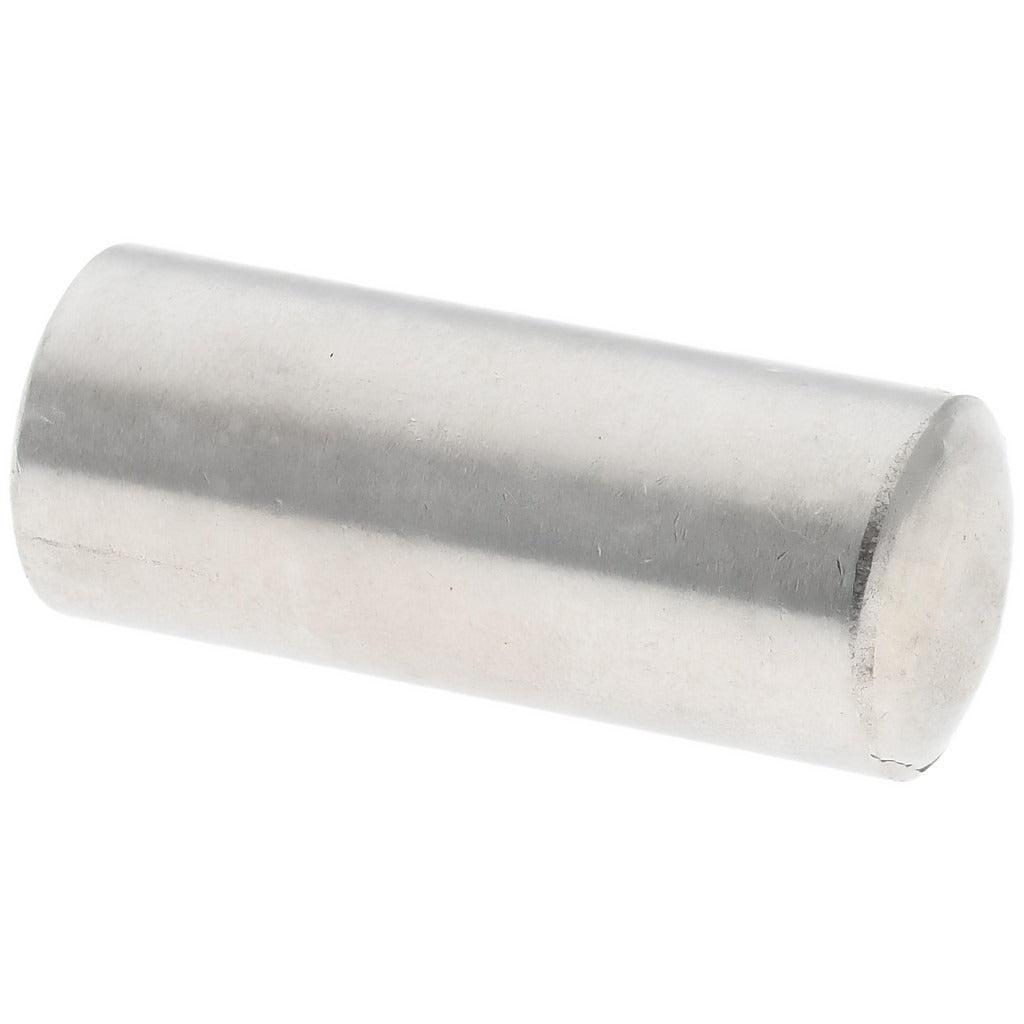

Value Collection 551426PS Dowel Pin 6x14mm Ss Grade 316

Product Description

The VALUE COLLECTION 551426PS is a standard pull out dowel pin manufactured from Grade 316 stainless steel with a bright, uncoated finish. Measuring 6 mm in diameter and 14 mm in overall length, this pin provides precise alignment and location between mating components in mechanical assemblies. The rounded end type eases insertion and reduces the risk of damage to bores during installation. Grade 316 stainless steel offers strong corrosion resistance, making this pin well suited for use in wet, chemical, or marine environments where standard carbon steel fasteners would corrode. Machinists, maintenance technicians, and tool and die professionals install this type of component in production fixtures, jigs, and precision assemblies.

This dowel pin is intended for use in precision alignment applications across general industrial, marine, food processing, and chemical processing environments where corrosion resistance and dimensional accuracy are critical. Manufactured to DIN 7 EN ISO 2338 standards, it is compatible with bored holes and assemblies designed to that specification. The pin is sold individually with a minimum order quantity of 10 units, making it appropriate for both sample evaluation and volume production requirements.

Key Features

• Grade 316 stainless steel construction for superior corrosion resistance in harsh environments
• Manufactured to DIN 7 EN ISO 2338 fastener standard for consistent dimensional compliance
• Rounded end type for controlled insertion and reduced bore damage risk
• Bright, uncoated finish maintains precise dimensional tolerances
• 6 mm diameter by 14 mm length suits compact alignment and location applications

Compatibility

Designed for use in precision bore applications conforming to DIN 7 EN ISO 2338 specifications for standard pull out dowel pins.

Installation Notes

Dowel pins of this type are typically installed by machinists or maintenance technicians using a press fit into reamed holes sized to the appropriate DIN 7 tolerance class. Ensure mating bores are clean, free of burrs, and within specified tolerance before pressing the pin into place. Do not hammer pins directly without a driver tool, as this can damage the bore or deform the pin end. When used in assemblies subject to disassembly, confirm the pull out force requirements are compatible with the chosen fit class.
