Value Collection 548695BR Dowel Pin 20x120mm Alloy Steel

Product Description

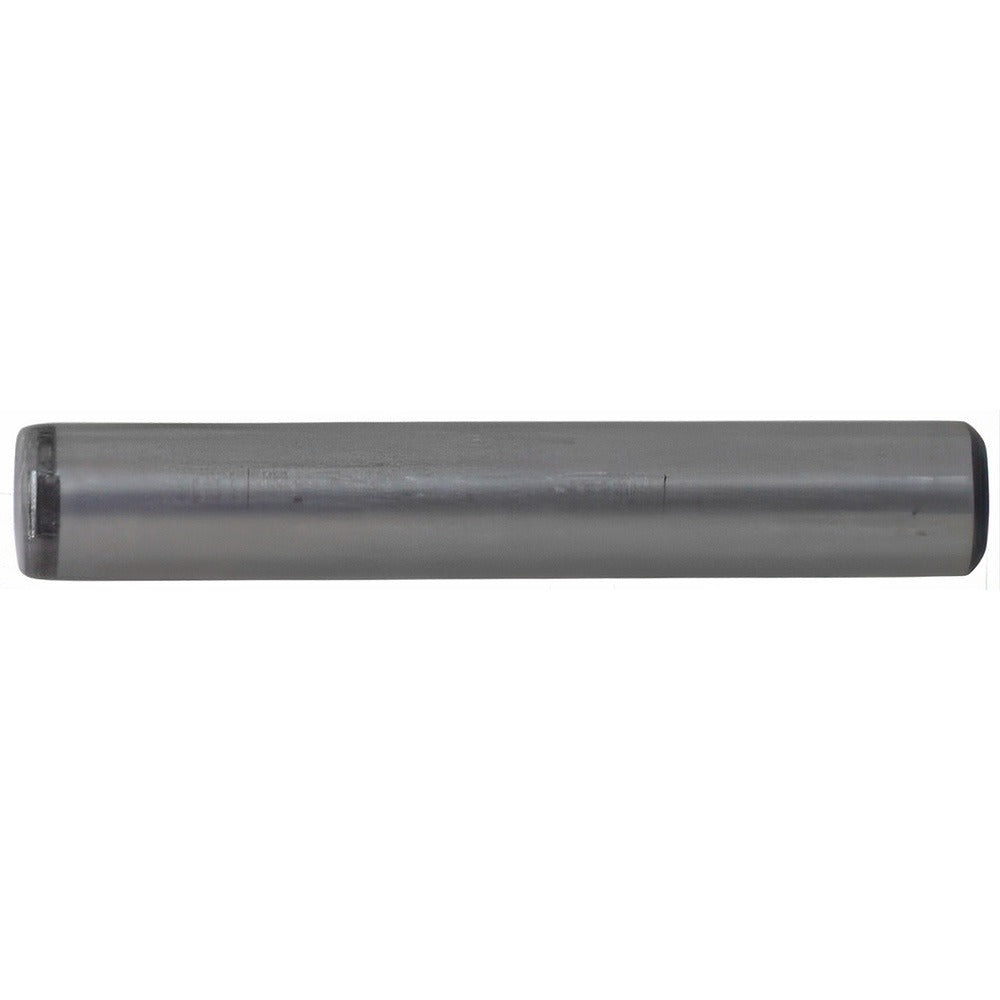

The VALUE COLLECTION 548695BR is a flat vent pull out dowel pin manufactured from alloy steel to DIN 7979D standards. It measures 20mm in diameter and 120mm in overall length, with one rounded end and one threaded end for pull-out extraction. The pin is through-hardened to 57-63 HRC, providing the wear resistance and shear strength required for precision locating and alignment applications in tooling, fixtures, and machine components. This is a direct-replacement industrial fastener suited for machinists, tool and die makers, and maintenance technicians working on production equipment or precision assemblies.

This dowel pin is used in applications where a removable, press-fit locating element is required. The flat vent groove along the body allows air and lubricant to escape during installation, preventing hydraulic lock in blind holes. The threaded end accepts a pull-out tool or threaded rod for controlled removal without damage to the bore or surrounding material. Typical installations include jigs, fixtures, mold bases, and precision machine frames where repeatable part location is critical.

Key Features

• DIN 7979D standard flat vent pull out design for precise locating and easy extraction
• Alloy steel construction hardened to 57-63 HRC for high wear resistance and shear strength
• Flat vent groove prevents hydraulic lock in blind-hole installations
• One rounded end for guided insertion, one threaded end for pull-out tool engagement
• 20mm diameter x 120mm length suits medium-to-heavy duty fixture and tooling applications

Compatibility

Designed as an OEM-style replacement or direct-fit locating pin for tooling, fixtures, mold bases, and precision machine assemblies requiring a DIN 7979D flat vent pull out dowel pin in 20mm diameter.

Installation Notes

Installation and removal should be performed by a machinist or qualified maintenance technician. Power down and de-energize all associated equipment before servicing any fixture or machine assembly. Use an arbor press or appropriate driving tool for controlled insertion to avoid damage to the bore tolerance. For removal, engage a compatible threaded pull-out tool into the threaded end and extract with steady, controlled force.
