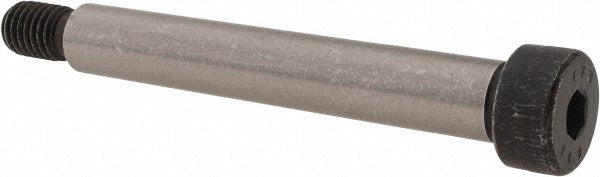

Value Collection 537216PR Shoulder Screw M10x1.5 Alloy Steel

Product Description

The VALUE COLLECTION 537216PR is a metric shoulder screw engineered for precision fastening applications in mechanical assemblies, jigs, fixtures, and tooling. The screw features a 12 mm shoulder diameter and an 80 mm shoulder length, providing a smooth, accurate bearing surface for rotating or sliding components. Driven by a hex socket, it installs with a standard hex key or Allen-head driver. Manufactured from alloy steel at material grade 12.9, this screw delivers high tensile strength suitable for demanding industrial service. The uncoated finish leaves the steel surface in its natural state, ready for use where coating buildup would compromise dimensional tolerances.

This shoulder screw is suited for industrial machinery, manufacturing equipment, and precision assembly applications where a controlled-diameter shank acts as a pivot point, guide pin, or linear motion shaft. The M10x1.5 threaded end anchors the screw into tapped holes in steel, cast iron, or aluminum housings. Typical installers include machine builders, tool and die technicians, and maintenance mechanics working on production equipment or custom fabrication assemblies.

Key Features

• 12 mm shoulder diameter and 80 mm shoulder length for extended guide and pivot applications
• M10x1.5 metric thread for secure anchoring in standard tapped holes
• Grade 12.9 alloy steel construction for high tensile and proof load capacity
• Hex socket drive compatible with standard Allen keys and socket-head drivers
• Uncoated finish maintains tight dimensional tolerances on the shoulder surface
• Meets ASME/ANSI B18.3.3.M, BS 4168, and ISO 7379 standards

Compatibility

Designed as a standard metric shoulder screw for use in any application requiring an ISO 7379 or ASME/ANSI B18.3.3.M compliant fastener with an M10x1.5 threaded end and a 12 mm shoulder diameter.

Installation Notes

Installation is performed by machinists or maintenance mechanics using a hex key or Allen-head socket driver sized to the hex socket drive. Ensure the receiving tapped hole is clean and the thread engagement depth is adequate before driving the screw to the shoulder seating surface. Do not overtighten beyond the seating shoulder, as the shoulder diameter — not the thread — carries the load in most pivot and guide applications. Follow applicable machinery safety lockout/tagout procedures before servicing assemblies containing shoulder screws.
