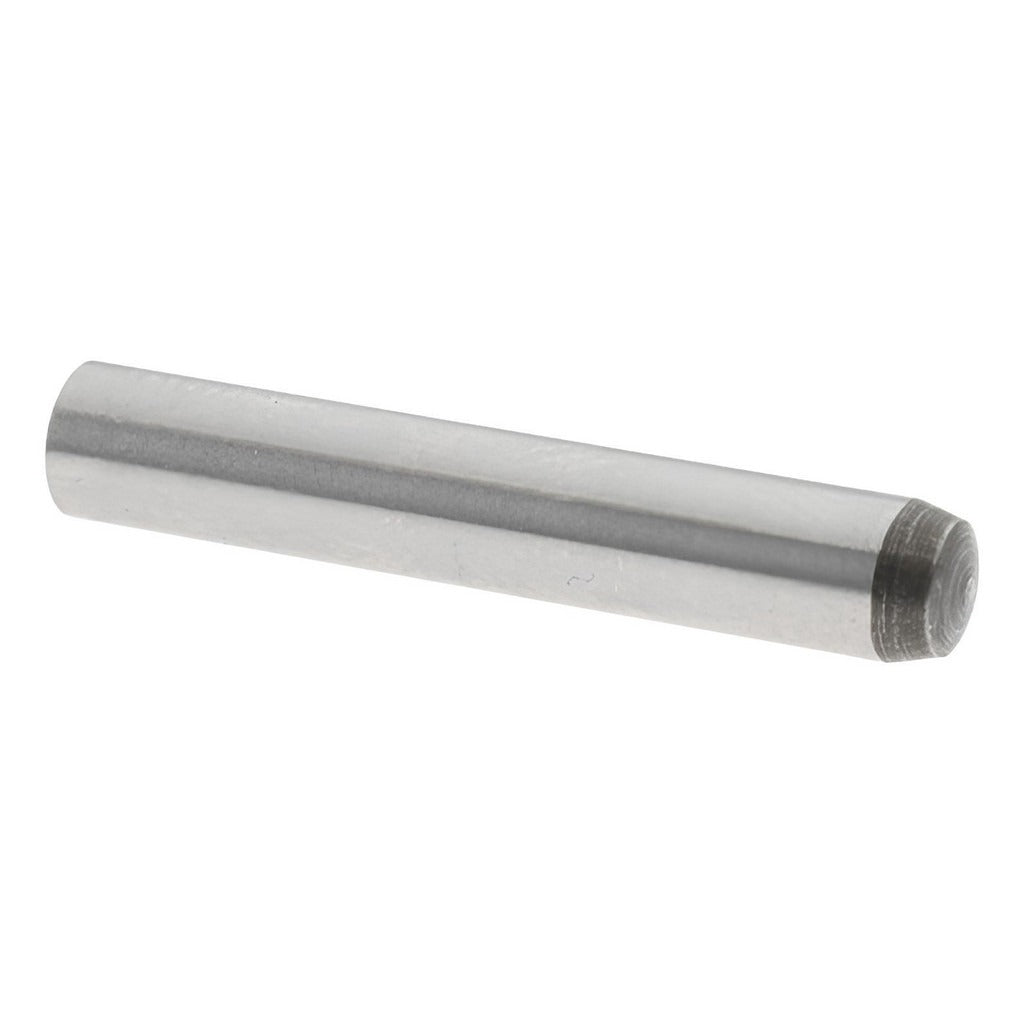

Value Collection 536531PR Precision Dowel Pin 4x24mm Grade 8

Product Description

The VALUE COLLECTION 536531PR is a precision dowel pin manufactured from alloy steel to Grade 8 material standards. It measures 4 mm in diameter and 24 mm in overall length, with a rounded end type and a bright uncoated finish. Produced to DIN 6325 and ISO 8734 fastener standards, this pin is engineered for tight-tolerance locating, alignment, and assembly applications. Machinists, tool-and-die makers, and industrial maintenance technicians rely on this class of precision pin where consistent fit and repeatable positioning are critical to assembly integrity.

This dowel pin is suited for use in jigs, fixtures, dies, and machine components where precise hole-to-hole alignment must be maintained under load or repeated assembly cycles. The alloy steel construction and Grade 8 rating make it appropriate for medium-to-heavy-duty industrial applications including press-fit alignment in steel components, mold and die alignment, and precision fixture work. Sold individually per package with a minimum order quantity of 100 pieces.

Key Features

• Conforms to DIN 6325 and ISO 8734 fastener standards for interchangeable precision fit
• Grade 8 alloy steel construction for high strength and wear resistance
• 4 mm diameter x 24 mm length for common small-bore alignment applications
• Rounded end type for guided entry into close-tolerance bored holes
• Bright uncoated finish for consistent dimensional tolerances without coating buildup

Compatibility

Designed as an OEM-style replacement or standard stock precision dowel pin for industrial fixtures, jigs, dies, and machine assemblies requiring DIN 6325 or ISO 8734 compliant locating pins at 4 mm diameter.

Installation Notes

Precision dowel pins are typically installed by machinists or tool-and-die technicians using a press or mallet in conjunction with reamed or tolerance-bored holes. Ensure the receiving hole is clean, deburred, and dimensioned to the appropriate fit class before installation. Do not hammer pins into undersized holes, as this can cause galling or bore damage. Always verify shaft and hole tolerances against the applicable DIN or ISO standard before press-fitting.
