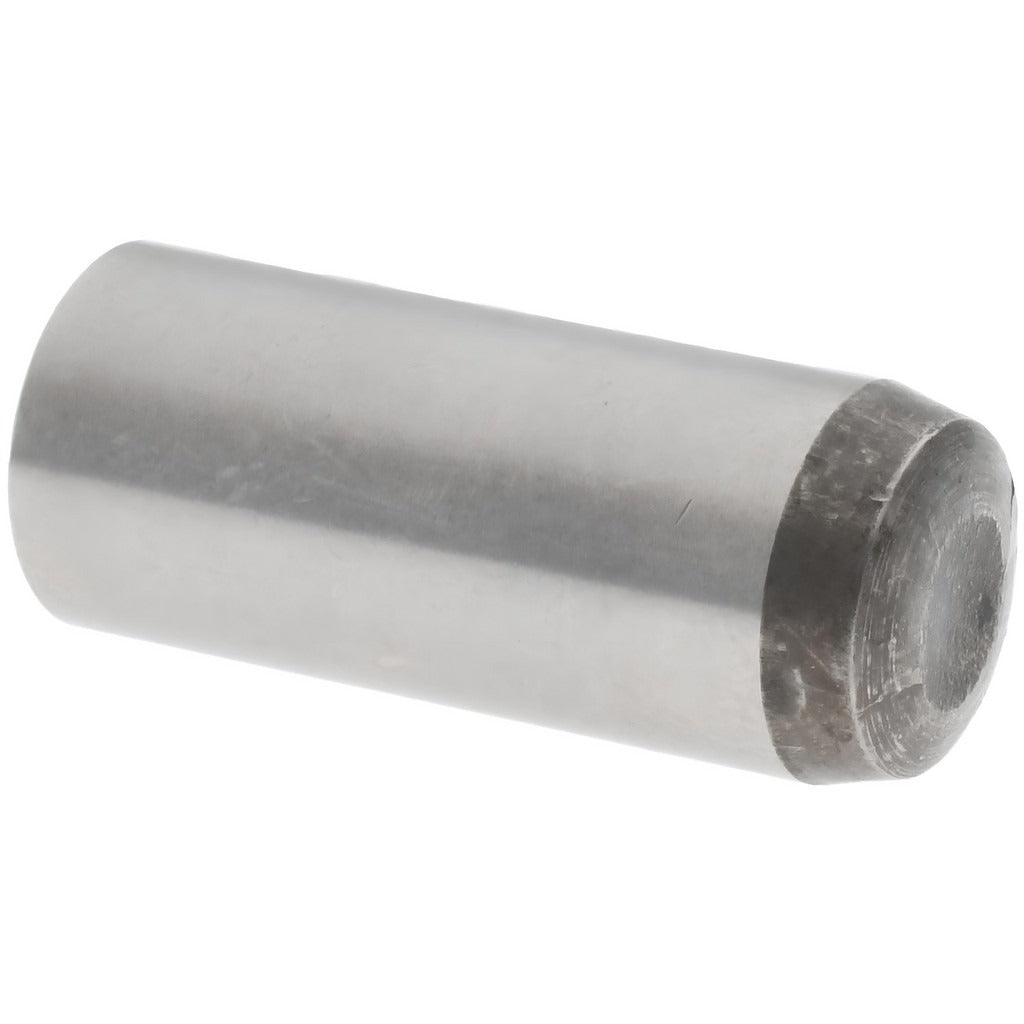

Value Collection 536196PR Dowel Pin 12x30mm Alloy Steel

Product Description

The VALUE COLLECTION 536196PR is a standard pull out dowel pin manufactured from alloy steel to DIN 6325 specifications. The pin measures 12 mm in diameter and 30 mm in overall length, with a rounded end type that facilitates clean insertion and controlled extraction during assembly and disassembly operations. Heat treated to a hardness of 58-62 HRC, this pin resists deformation under load and maintains precise tolerances in close-tolerance bores. A double-shear breaking strength of 53,400 newtons confirms suitability for demanding fixturing and alignment applications. Machinists, toolmakers, and maintenance technicians working in production environments install this style of pin to locate and align mating components repeatedly and accurately.

This dowel pin is suited for precision alignment and location tasks in manufacturing fixtures, jigs, dies, and machine assemblies where controlled fit and repeatable positioning are required. The DIN 6325 standard governs the dimensional and hardness requirements, making this pin interchangeable with other DIN 6325-compliant components of the same size. It is appropriate for both light and moderate-duty industrial applications across metalworking, tooling, and general mechanical assembly environments.

Key Features

• DIN 6325 standard ensures dimensional compliance and interchangeability with same-spec components
• 58-62 HRC hardness provides resistance to wear and deformation under repeated use
• Rounded end type supports straightforward insertion and clean extraction
• Double-shear breaking strength of 53,400 newtons rated for demanding load conditions
• Alloy steel construction delivers strength and durability in close-tolerance bore applications

Compatibility

Designed as an OEM-style replacement or direct substitute for standard pull out dowel pins conforming to DIN 6325 with a 12 mm diameter and 30 mm overall length.

Installation Notes

Pull out dowel pins of this type are typically installed and removed by machinists or maintenance technicians using an arbor press or a purpose-built pin extraction tool. Always ensure the receiving bore is clean, within tolerance, and free of burrs before driving the pin. Do not hammer the pin directly without a proper driver to avoid damaging the rounded end or distorting the bore. Follow applicable machine safety lockout and tagout procedures before servicing any fixture or assembly that uses locating pins.
