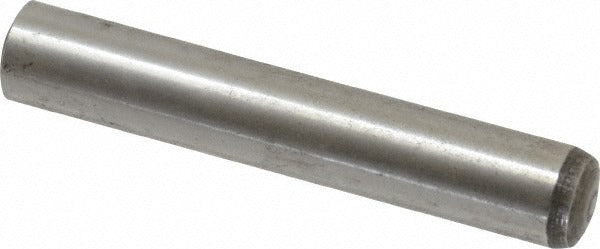

Value Collection 536164PR Dowel Pin 10x60mm Alloy Steel

Product Description

The VALUE COLLECTION 536164PR is a standard dowel pin manufactured to DIN 6325 specifications from alloy steel with an uncoated finish. The pin measures 10 mm in diameter and 60 mm in overall length, featuring rounded ends for guided insertion into precision-bored holes. Hardness is rated at 58-62 HRC, and the pin is rated for a double-shear breaking strength of 37,100 pounds-force. This type of pin is used to align, locate, or retain components in machined assemblies and is installed by machinists, toolmakers, and maintenance technicians in industrial and manufacturing environments.

Standard dowel pins conforming to DIN 6325 are commonly used in jigs, fixtures, dies, molds, and machine frames where tight-tolerance alignment between mating components is required. The 10 mm diameter and 60 mm length suit medium-load applications across a wide range of fabricated assemblies. The 58-62 HRC hardness provides resistance to wear and deformation under repeated loading. These pins are appropriate for both original equipment assembly and maintenance repair applications in general industrial settings.

Key Features

• DIN 6325 standard — ensures dimensional interchangeability with other DIN 6325-compliant components
• 58-62 HRC hardness — high wear resistance for demanding alignment and locating applications
• Double-shear breaking strength of 37,100 pounds-force — rated for medium-to-heavy load conditions
• Rounded end type — facilitates alignment and insertion into precision holes
• Uncoated alloy steel construction — suitable for dry or lightly lubricated environments
• 10 mm diameter x 60 mm length — common sizing for jigs, fixtures, and machine assembly work

Compatibility

Designed as an OEM-style replacement or standard-supply dowel pin for any application requiring a DIN 6325 compliant, 10 mm diameter by 60 mm length hardened alloy steel dowel pin.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a pin press or arbor press. The receiving hole should be precision-reamed to the appropriate DIN 6325 tolerance to achieve the intended fit class. Do not hammer pins in with a metal-faced hammer, as this can damage the rounded end geometry or distort the hole. Ensure the mating assembly is fully supported and stable before pressing the pin into position.
