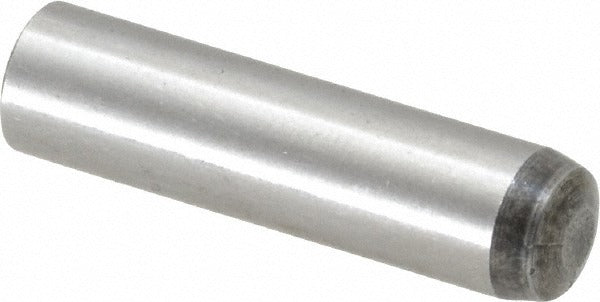

Value Collection 536117PR Precision Dowel Pin 8x32mm Grade 8

Product Description

The VALUE COLLECTION 536117PR is a precision dowel pin engineered for tight-tolerance locating and alignment applications in machined assemblies. Manufactured from Grade 8 alloy steel with a bright uncoated finish, it delivers high hardness and surface integrity needed for repeatable, accurate component positioning. The pin measures 8 mm in diameter and 32 mm in overall length with rounded ends, conforming to DIN 6325 and ISO 8734 dimensional and tolerance standards. Machinists, tool and die makers, and maintenance technicians working on jigs, fixtures, molds, and precision assemblies rely on this type of pin to maintain hole-to-hole alignment across mating components.

This dowel pin is suited for use in industrial machining, tooling, and fixture-building environments where controlled interference or transition fits are required. Its DIN 6325 and ISO 8734 compliance makes it interchangeable with internationally dimensioned bores and reamed holes. Typical applications include aligning machine bases, die sets, and sub-plate assemblies. The minimum order quantity is 10 pieces, with individual unit packaging per piece.

Key Features

• Conforms to DIN 6325 and ISO 8734 standards for dimensional accuracy and interchangeability
• Grade 8 alloy steel construction for high tensile strength and wear resistance
• Bright uncoated finish provides consistent surface condition for press or slip fits
• Rounded ends for guided entry into reamed holes without chamfering required
• 8 mm diameter x 32 mm length suits a wide range of medium-duty alignment tasks

Compatibility

Designed as a standard-specification replacement or addition for any application requiring a DIN 6325 or ISO 8734 compliant precision dowel pin with an 8 mm diameter and 32 mm length.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes by toolmakers or machinists and should be installed with appropriate arbor press equipment to avoid damage to the pin or bore. Always verify hole diameter and tolerance class before installation to ensure the intended fit condition. Pins should be inspected for surface defects prior to pressing. Do not hammer directly onto the pin end without a proper drive tool.
